C78ENTC26.00A004

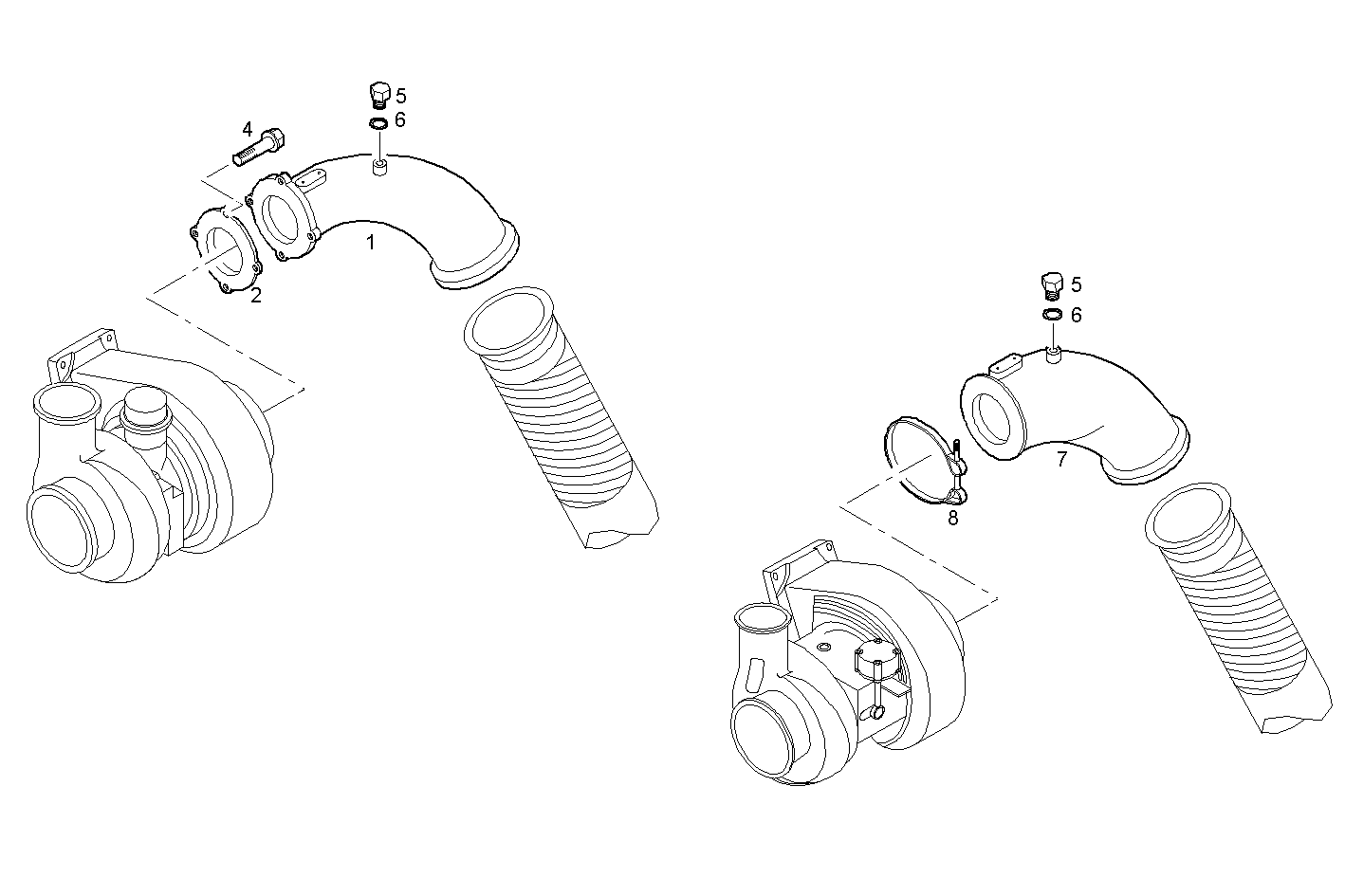

2423.001 AIR LINES
Item | Part number | Description |
---|---|---|
1 | 41213475 | EXHAUST ELBOW [UP TO # 17841] |
2 | 500301732 | SEAL GASKET [UP TO # 17841] |
4 | 99450660 | HEXAGON BOLT [UP TO # 17841] |
5 | 99441940 | THREADED PLUG M12X1,5 |
6 | 16508060 | SEAL GASKET Ø12X15,5 MM |
7 | 504017792 | EXHAUST ELBOW [FROM # 17842] |
8 | 504073261 | CLIP dia. 104 |
