C78ENTC26.00A004

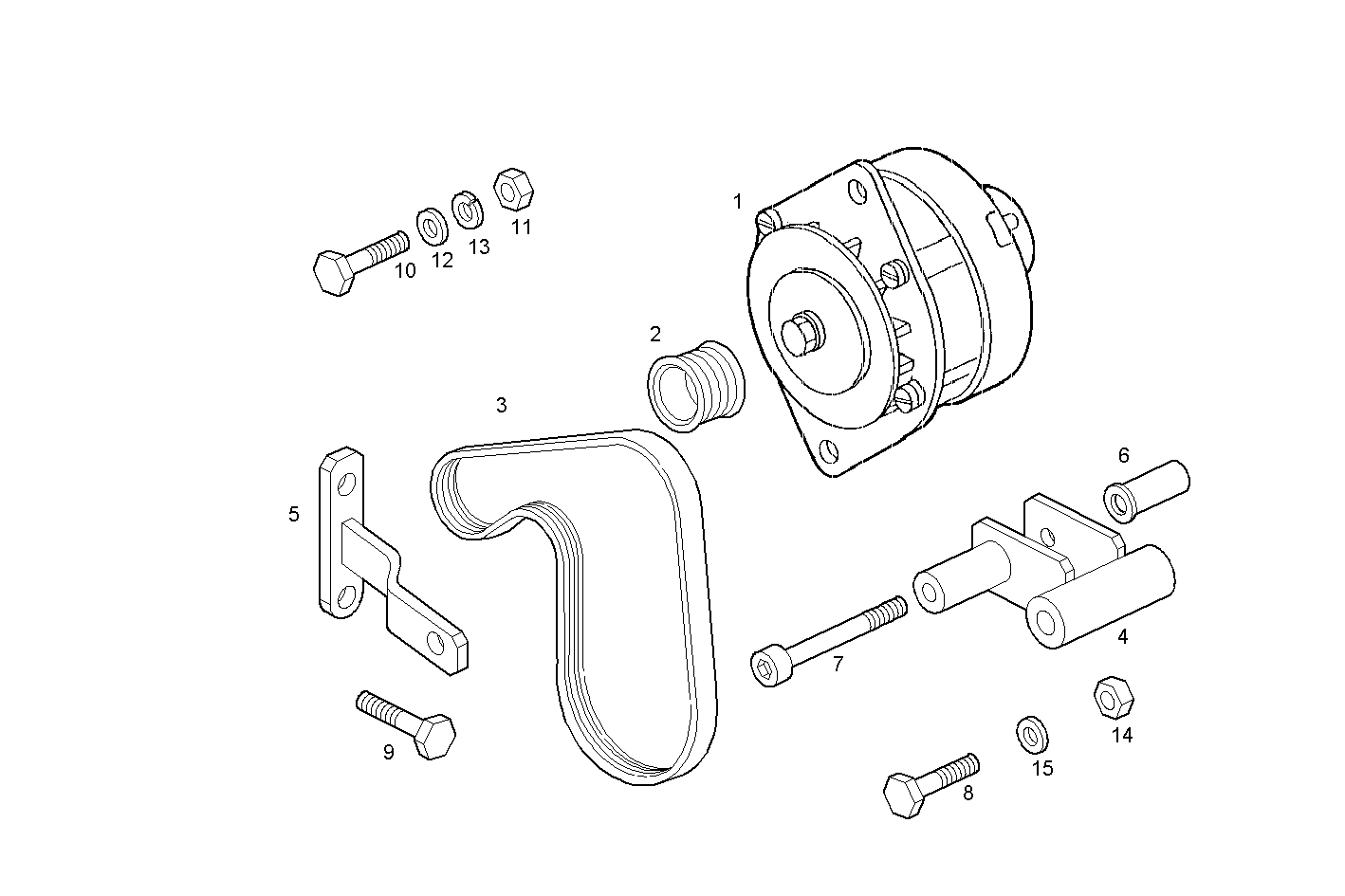

A14140501/01 ALTERNATOR - 28V 120A (W)
| Item | Part number | Description |
|---|---|---|
| 1 | 4831585 | ALTERNATOR ASSY 28V 120A BOSCH |
| 2 | 8037089 | GENERATOR PULLEY |
| 3 | 8037174 | V-BELT |
| 4 | 8037092 | GENERATOR SUPPORT |
| 5 | 8037093 | BELT TENSIONER |
| 6 | 8037140 | SPACING BAR |
| 7 | 16596625 | CYLIND-HEAD SCREW M10X1,5X125 |
| 8 | 4604245 | HEXAGON BOLT |
| 9 | 16588025 | HEXAGON BOLT M12X30 MM |
| 10 | 16610124 | HEXAGON BOLT M12X40 MM |
| 11 | 17038621 | NUT M12 |
| 12 | 17091074 | WASHER Ø12X24X2,8 MM |
| 13 | 17091174 | SPRING WASHER Ø12X24 MM |
| 14 | 17038425 | HEXAGON NUT M12 (8) |
| 15 | 16665704 | WASHER Ø12X24X2,5 MM |
