C78ENTC26.00A004

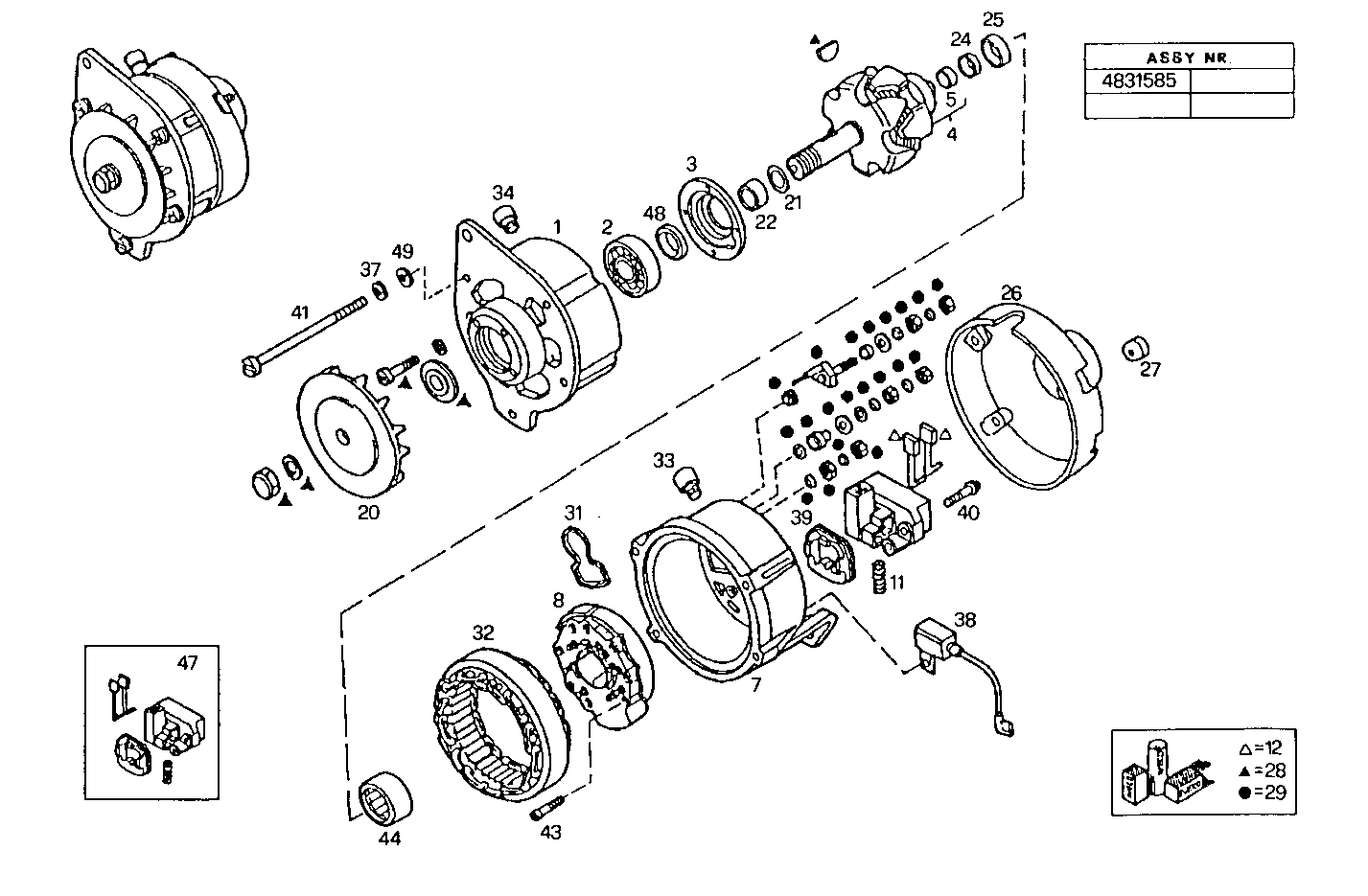

A14140501/02 ALTERNATOR - 28V 120A (W)
| Item |
Part number |
Description |
|
1 |
93163441 |
GENERATOR SUPPORT |
|
2 |
1103694 |
DRIVE BEARING |
|
3 |
1301183 |
PLATE |
|
4 |
93163818 |
GENERATOR ROTOR ASSY |
|
5 |
8122271 |
RING |
|
7 |
93163819 |
GENERATOR SUPPORT REAR |
|
8 |
93163820 |
RECTIFIER BRIDGE |
|
11 |
42491524 |
SPRING |
|
12 |
93163822 |
GENERATOR BRUSH |
|
20 |
93163824 |
GENERATOR FAN |
|
21 |
1119832 |
SNAP RING Ø30 MM |
|
22 |
1301177 |
BUSH |
|
24 |
8122281 |
BUSH |
|
25 |
8122282 |
RING |
|
26 |
8122283 |
COVER |
|
27 |
1171647 |
RUBBER GROMMET |
|
28 |
8122284 |
KIT-GENERATOR |
|
29 |
8122285 |
KIT-GENERATOR |
|
31 |
7984047 |
GASKET |
|
32 |
93163823 |
GENERATOR STATOR |
|
33 |
7984649 |
LUBE FITTING |
|
34 |
7984650 |
LUBE FITTING |
|
37 |
79058502 |
WASHER |
|
38 |
79074709 |
CONDENSER SP=0,5 MM |
|
39 |
79074714 |
SEAL GASKET |
|
40 |
93163821 |
SCREW |
|
41 |
8199088 |
SCREW |
|
43 |
79093985 |
SCREW |
|
44 |
1905186 |
ENGINE BEARINGS |
|
47 |
8199087 |
VOLTAGE REGULATOR ASSY |
|
48 |
1290380 |
WASHER |
|
49 |
17094604 |
WASHER Ø6X11 MM |
