C78ENTD20.00

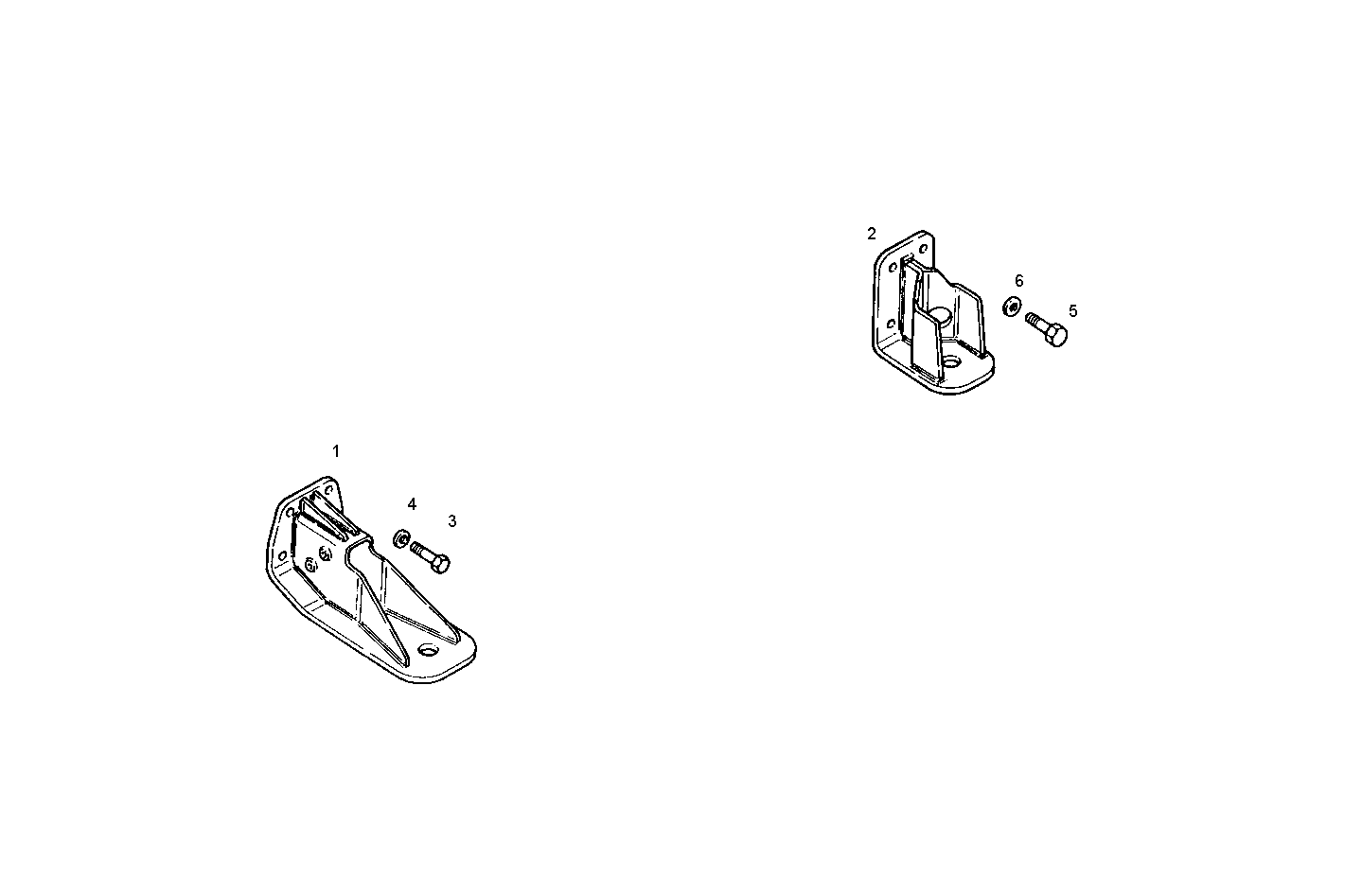

A04000504 ENGINE SUSPENSION
Item | Part number | Description |
---|---|---|
1 | 8030359 | SUPPORT FRONT |
2 | 8030307 | SUPPORT REAR |
3 | 16612324 | HEXAGON BOLT M14X35 MM |
4 | 17091674 | WASHER Ø14X27X3,0 MM |
5 | 16614524 | HEXAGON BOLT M16X35 MM |
6 | 17092174 | SPRING WASHER Ø16X32X3,4 |
