C78ENTD20.00

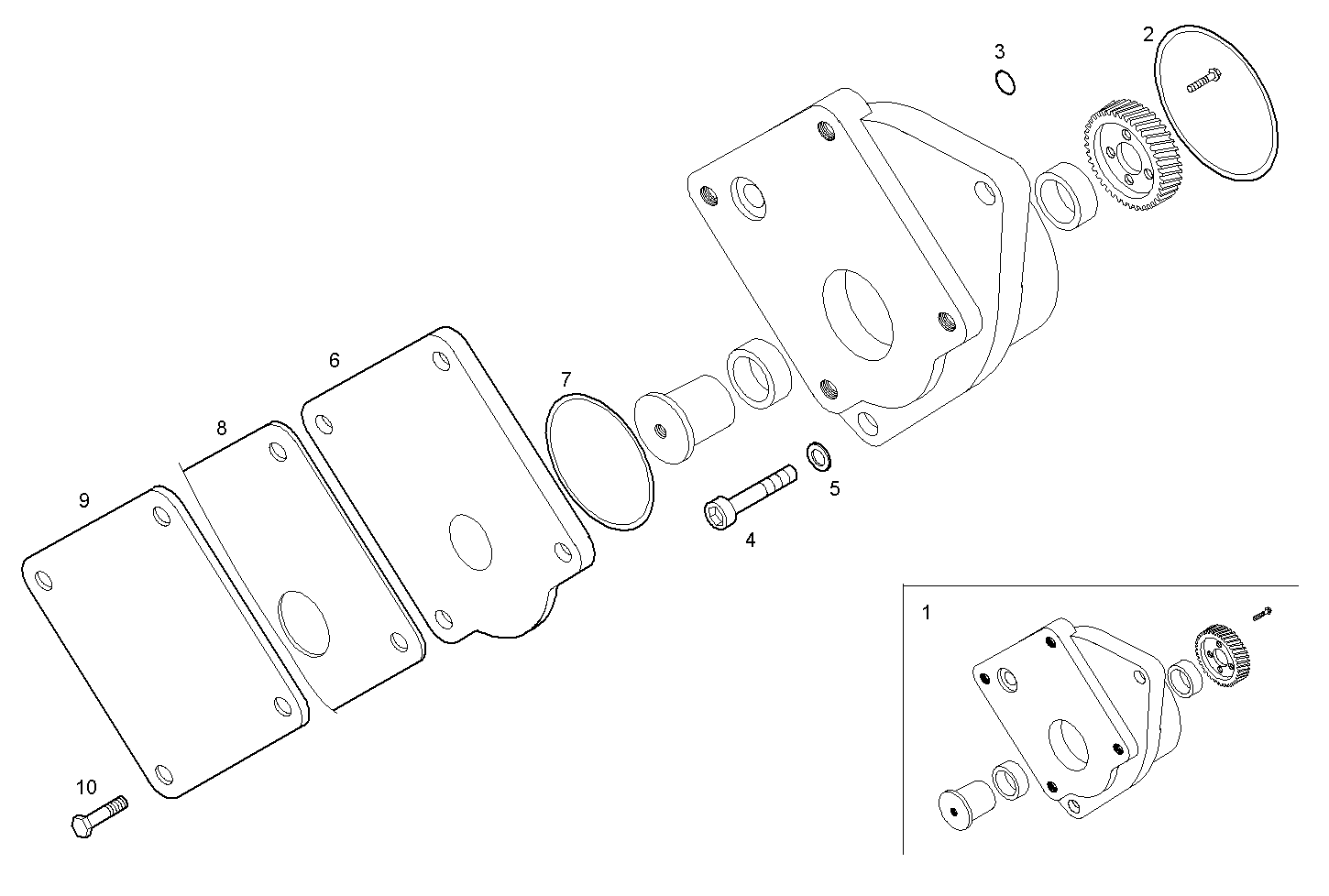

A09280504 PTO ARRANGEMENT

Iveco/FPT PTO ARRANGEMENT

Item Part number Description
1 8037984 POWER TAKE OFF ASSY
2 17292281 O-RING Ø126,59 MM SP=3,53 MM
3 17281381 O-RING Ø9,19 MM [FROM TO # 62977]
4 16710834 CYLIND-HEAD SCREW M12X50 MM
5 17095224 WASHER Ø12X20 MM
6 504020638 SPACING BAR
7 504042516 O-RING
8 08009914 FLAT ENGINE GASKET
9 504020736 PTO COVER
10 16675834 HEXAGON BOLT M10X30 MM
