C78ENTD20.00

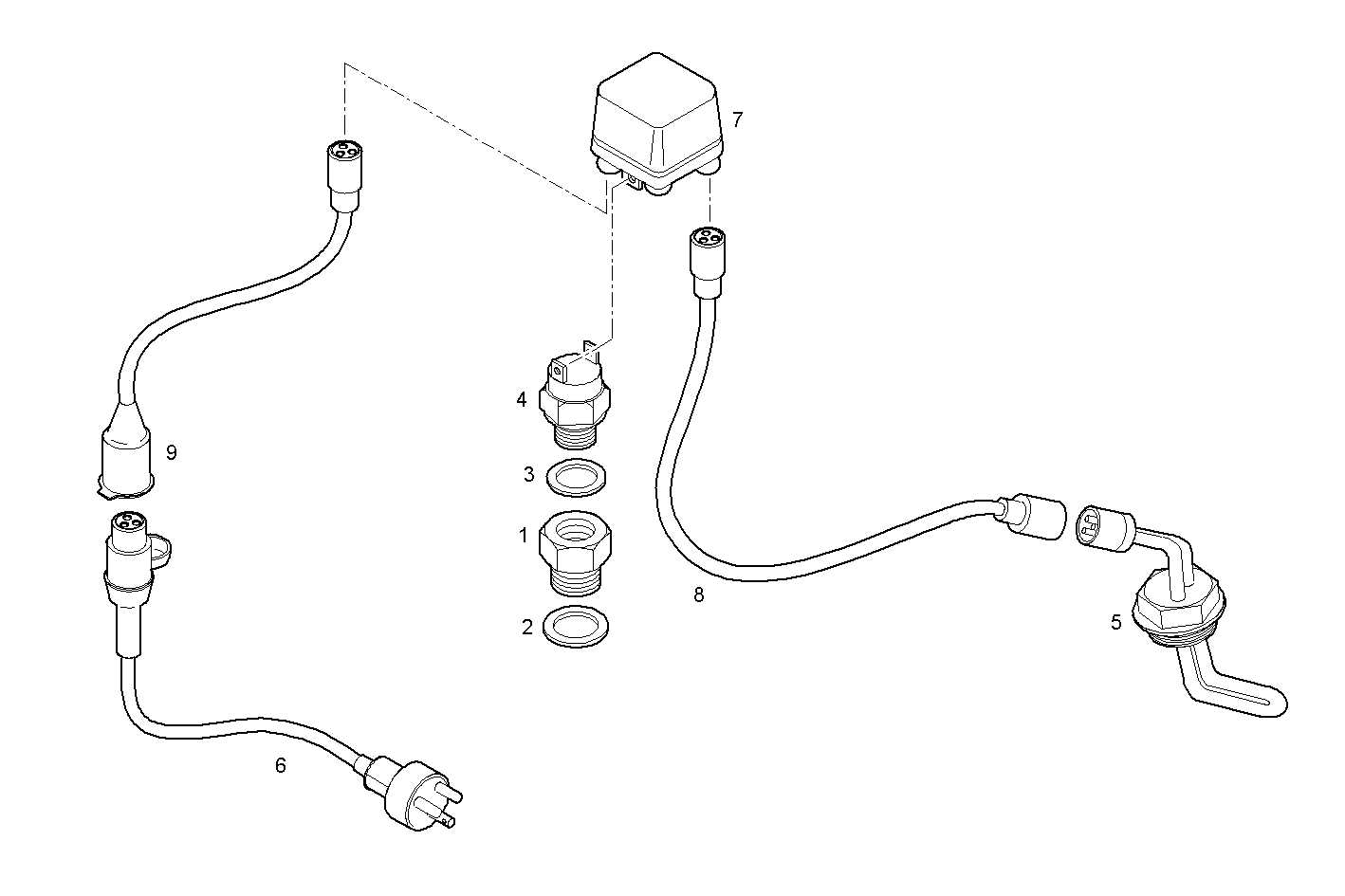

A20120506 HEATHER 120V - 24V
| Item | Part number | Description |
|---|---|---|
| 1 | 4928330 | PIPE SOCKET M16X1,5/M14X1,5 |
| 2 | 98474309 | WASHER Ø16X24 MM SP=1,9 MM |
| 3 | 98474308 | SEAL GASKET Ø14X22 MM |
| 4 | 8038597 | THERMOSWITCH |
| 5 | 8038892 | HEATER |
| 6 | 8038515 | WIRE/CABLE |
| 7 | 8038600 | RELAY 24V |
| 8 | 8038507 | WIRE/CABLE |
| 9 | 503111089 | WIRE/CABLE |
