C78ENTD20.00A800

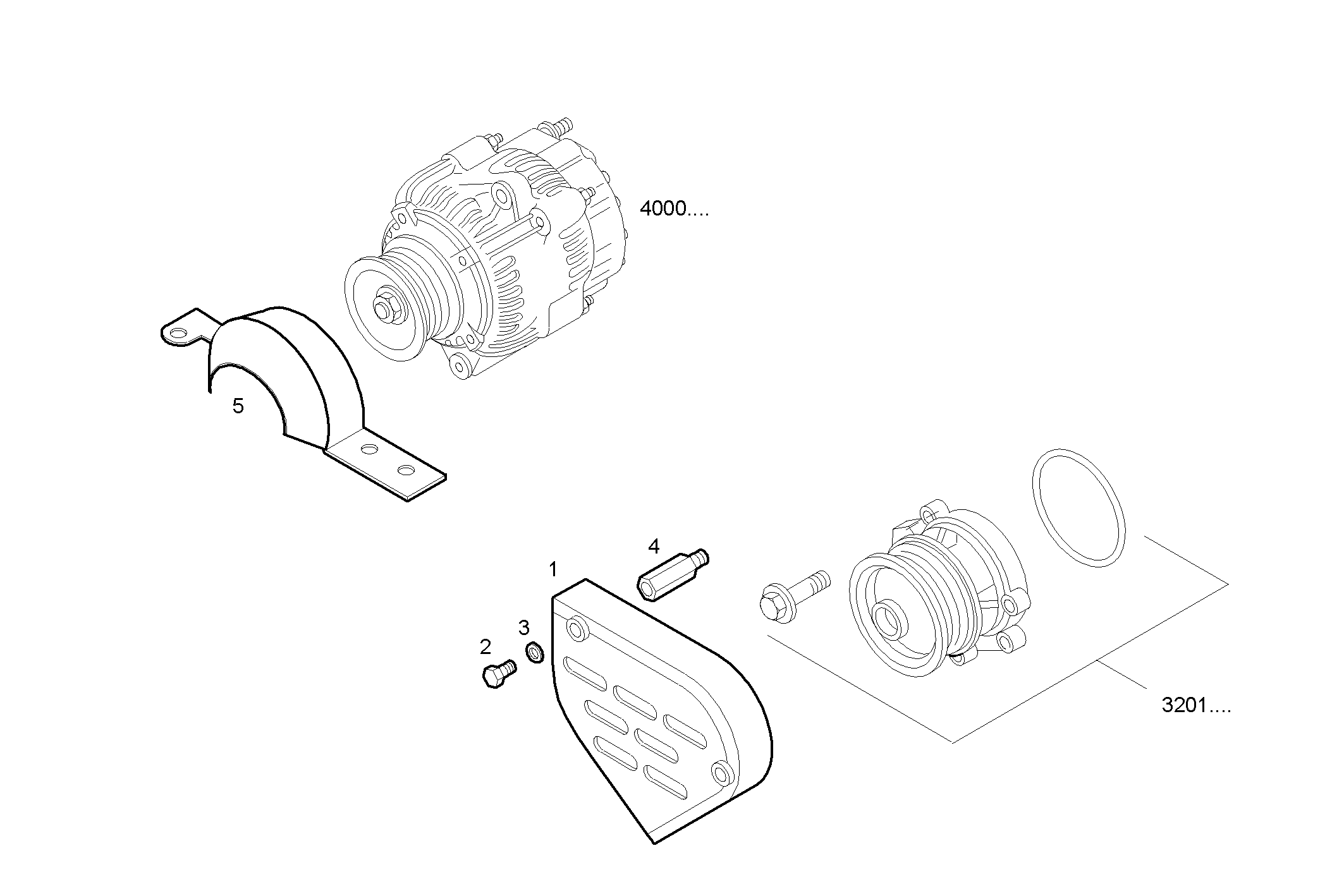

A48020504 GUARD - for pulley/belts
| Item | Part number | Description |
|---|---|---|
| 1 | 8030936 | PROTECTION |
| 2 | 16606424 | HEXAGON BOLT M8X65 MM |
| 3 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 4 | 8033833 | SPACING BAR M8 |
| 5 | 8037293 | PROTECTION |
