C78ENTE60.00

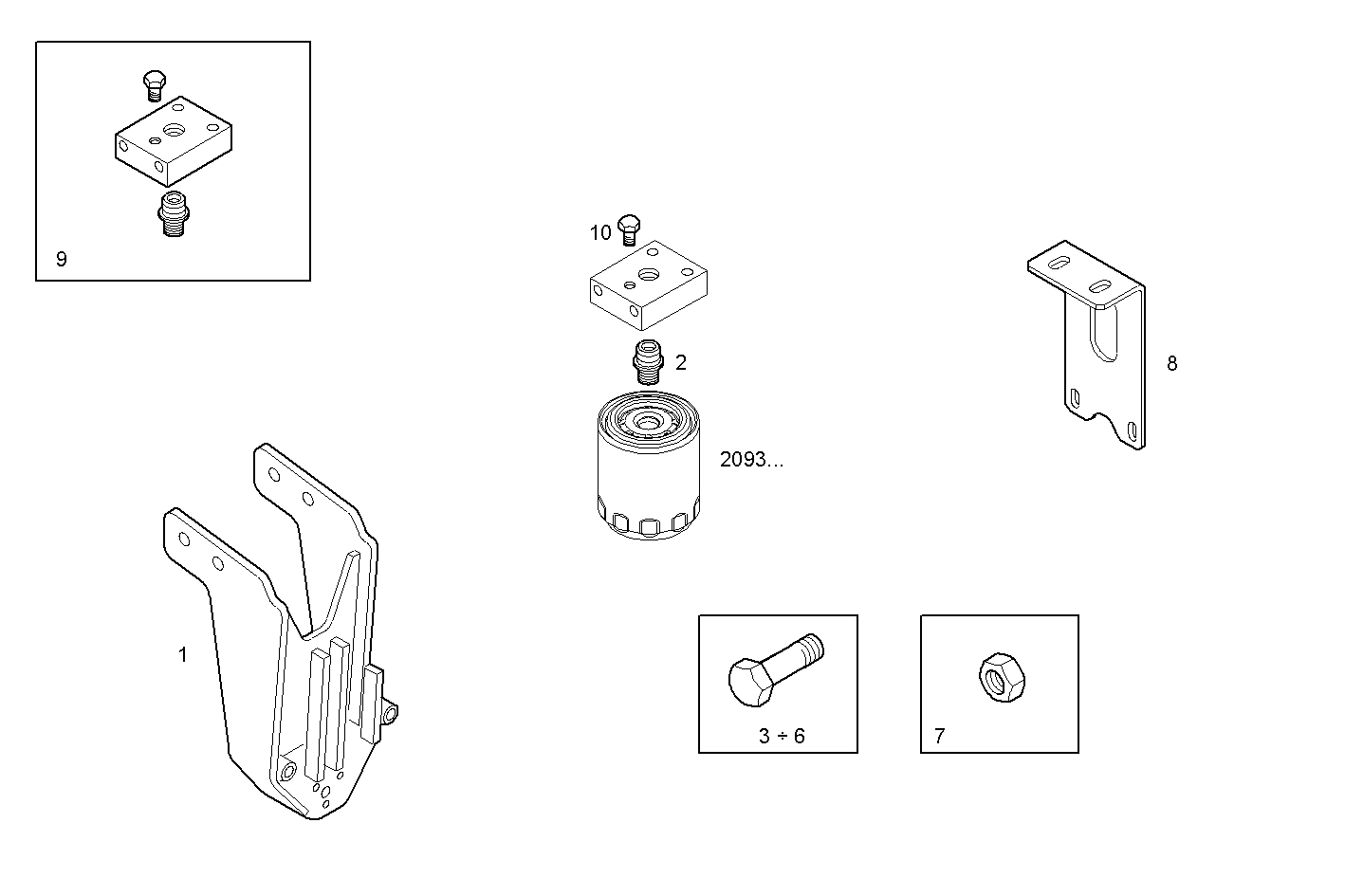

2004.007 FUEL FILTER SUPPORT
Item | Part number | Description |
---|---|---|
1 | 500387316 | FILTER SUPPORT |
2 | 504096626 | PIPE SOCKET |
3 | 16586725 | HEXAGON BOLT M8X1.25X40 MM |
4 | 16599025 | SCREW M10X120 MM |
5 | 16673635 | HEXAGON BOLT M8X1.25X20 |
6 | 16674034 | HEXAGON BOLT M8X40 MM |
7 | 17044825 | HEXAGON NUT M10 |
8 | 504096587 | FILTER SUPPORT |
9 | 504096681 | FUEL FILT.SUPPORT ASSY |
10 | 504096680 | DRAIN SCREW |
