C78ENTF40.00

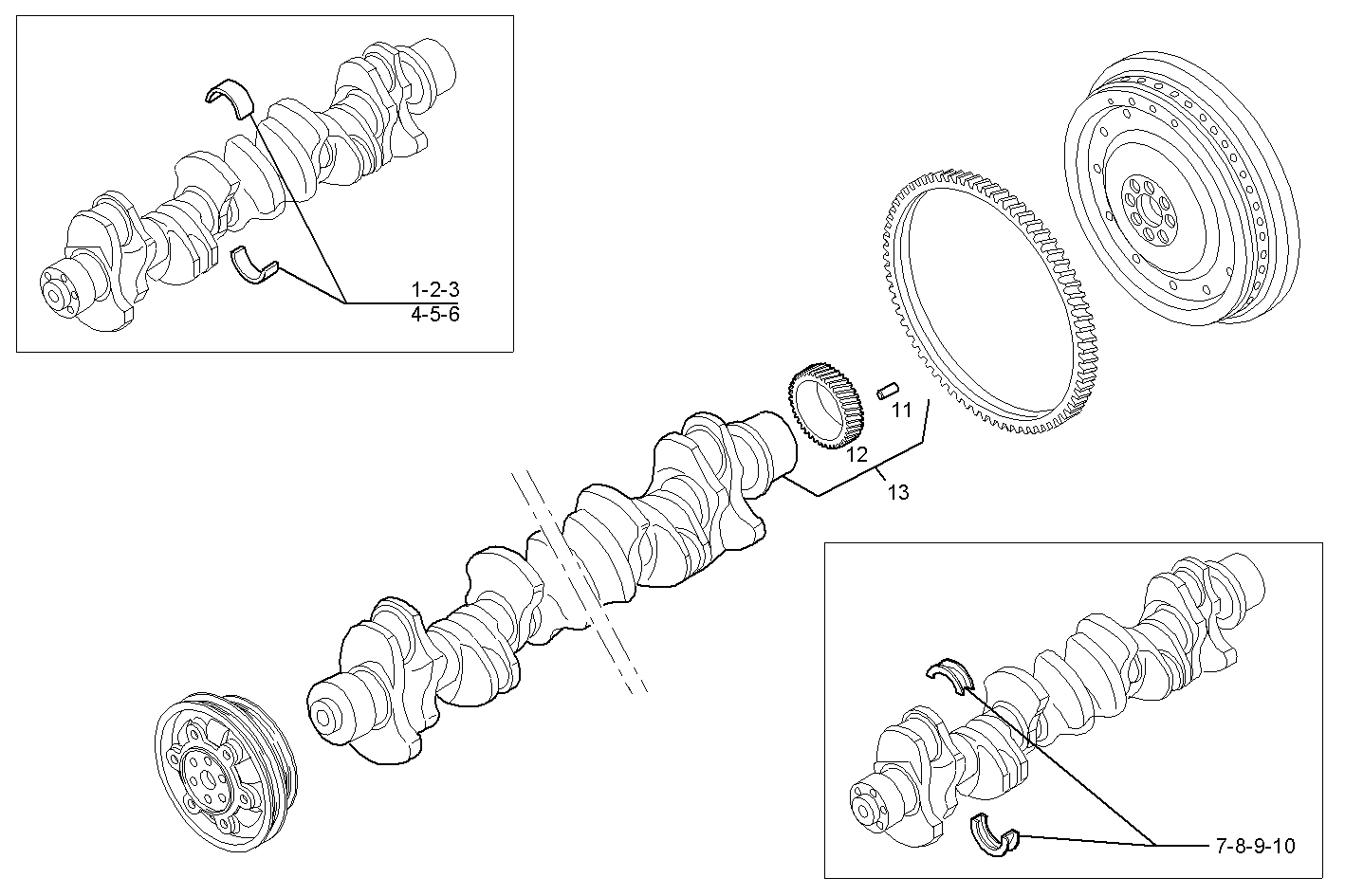

0801.024 CRANK SHAFT
Item | Part number | Description |
---|---|---|
1 | 2991500 | MAIN BEARING SET STD RED |
2 | 2991501 | MAIN BEARING SET STD GREEN |
3 | 2991502 | MAIN BEAR.SET -0,127 RED BLACK |
4 | 2991503 | MAIN BEAR.SET -0,127 GREEN BLACK |
5 | 2991504 | MAIN BEAR.SET -0,254 RED |
6 | 2991505 | MAIN BEAR.SET -0,508 RED |
7 | 2991506 | THRUSTRING SET STD RED |
8 | 2991507 | THRUSTRING SET STD GREEN |
9 | 2991510 | THRUSTRING SET STD -0,254 mm. RED |
10 | 2991511 | THRUSTRING SET STD -0,508 mm. RED |
11 | 99435760 | DOWEL PIN Ø8 MM |
12 | 99482408 | TIMING DRIVE GEAR |
13 | 99485949 | CRANK SHAFT ASSY |
