C78ENTF40.00

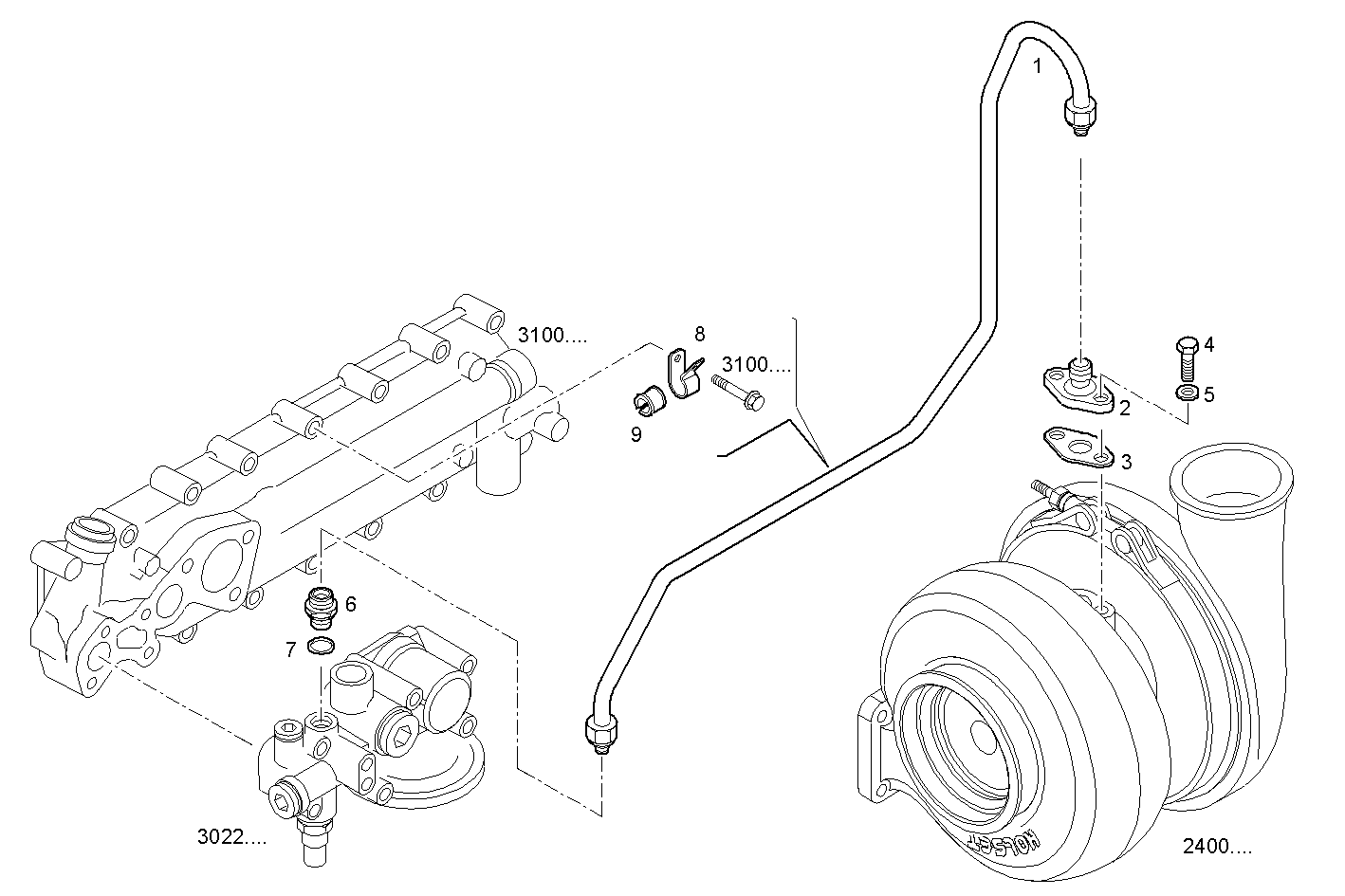

3064.029 OIL DELIVERY LINE
Item | Part number | Description |
---|---|---|
1 | 8047178 | OIL LINE |
2 | 4764795 | THREADED UNION |
3 | 98415922 | FLAT ENGINE GASKET |
4 | 16605625 | HEXAGON BOLT M8X25 |
5 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
6 | 504081274 | THREADED UNION M16X1,5 - M18X1,5 |
7 | 99489019 | WASHER Ø16X24 MM SP=1,5 MM |
8 | 4755963 | FASTENING BRACKET |
9 | 4755964 | RUBBER PAD |
