C78ENTF40.00

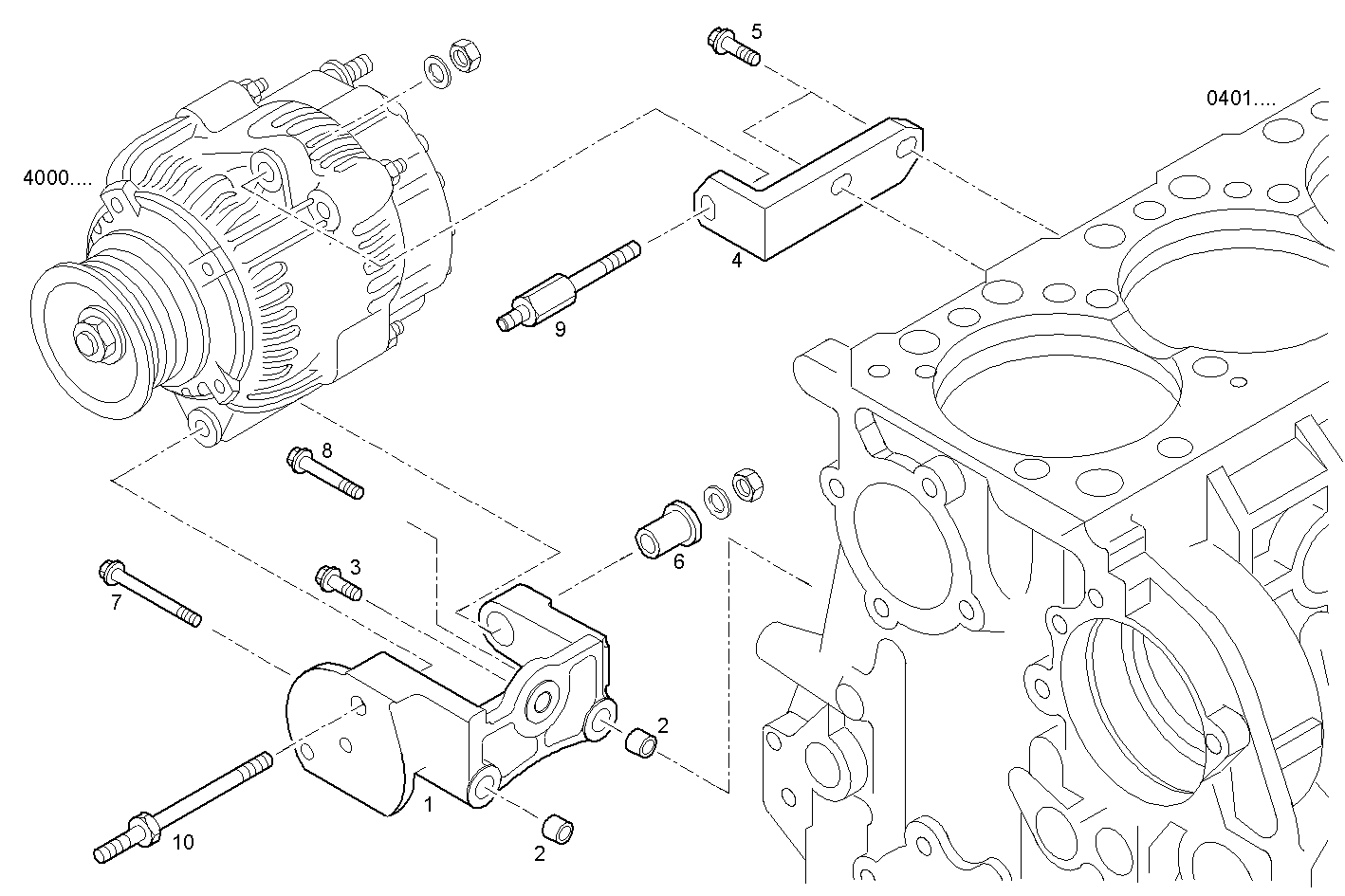

4010.014 MOUNT
| Item | Part number | Description |
|---|---|---|
| 1 | 99483766 | GENERATOR SUPPORT |
| 2 | 98405462 | DOWEL PIN Ø10,2 MM |
| 3 | 16587125 | HEXAGON BOLT M10X25 MM |
| 4 | 8034179 | FASTENING BRACKET |
| 5 | 16673835 | HEXAGON BOLT M8X30 MM |
| 6 | 99484032 | SPACER BUSH |
| 7 | 99474161 | SCREW M10 |
| 8 | 16586625 | HEXAGON BOLT M8X35 MM |
| 9 | 8030495 | STUD M10 |
| 10 | 8030496 | STUD M10 |
