C78ENTF40.00
A21210521 DRY AIR CLEANER - metallic body

Iveco/FPT DRY AIR CLEANER

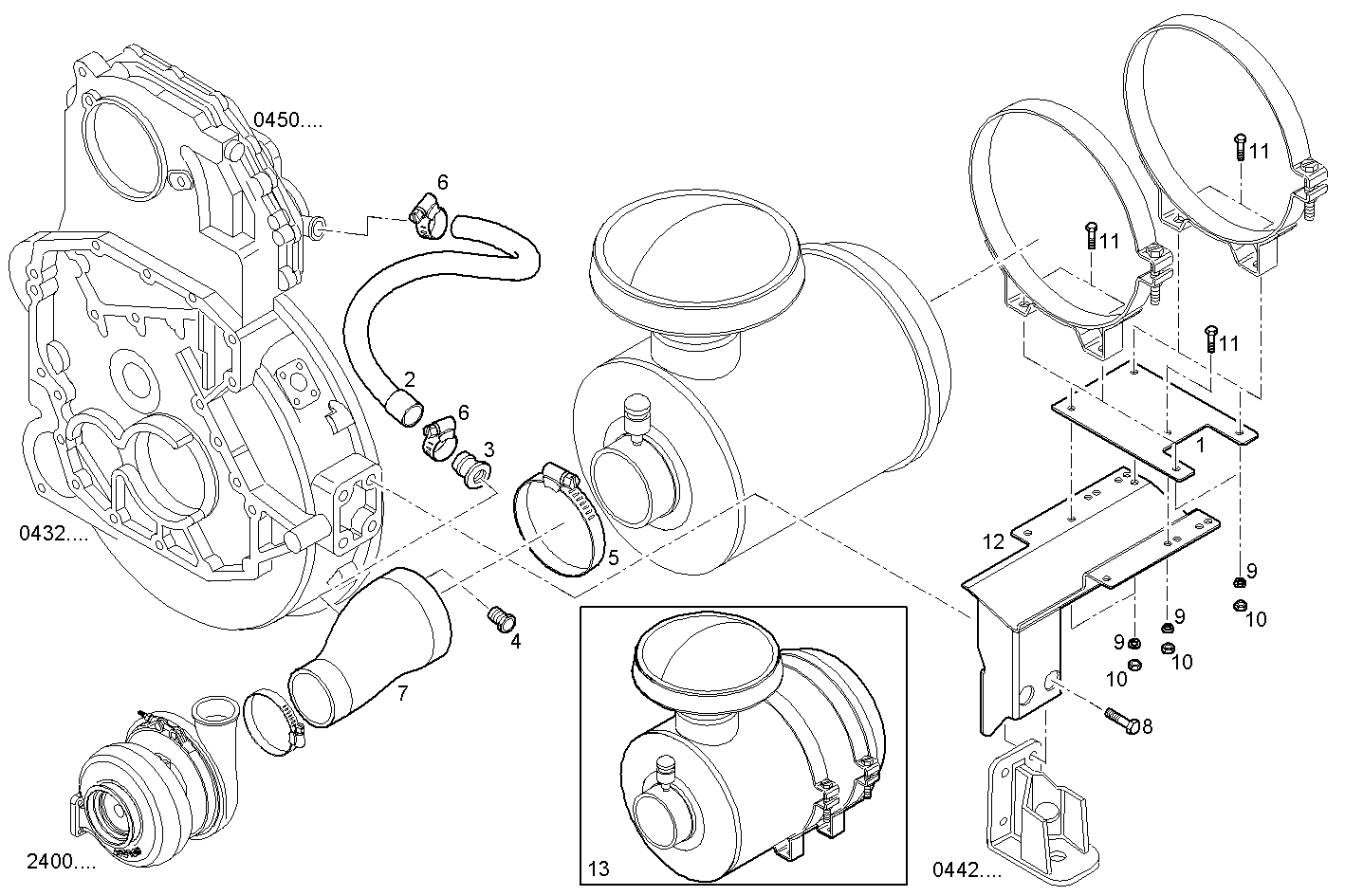

Item Part number Description
1 8040120 RETAINER
2 8040978 RUBBER SLEEVE
3 8015133 PIPE SOCKET
4 8015315 PIPE SOCKET
5 17766292 CLIP
6 17764594 HOSE CLIP
7 8047182 FILTER HOSE
8 16614624 HEXAGON BOLT M16X40 MM
9 17091074 WASHER Ø12X24X2,8 MM
10 17038425 HEXAGON NUT M12 (8)
11 16922524 HEXAGON BOLT
12 8039119 FILTER SUPPORT
13 8025042 AIR CLEANER ASSY
