C78ENTF40.00

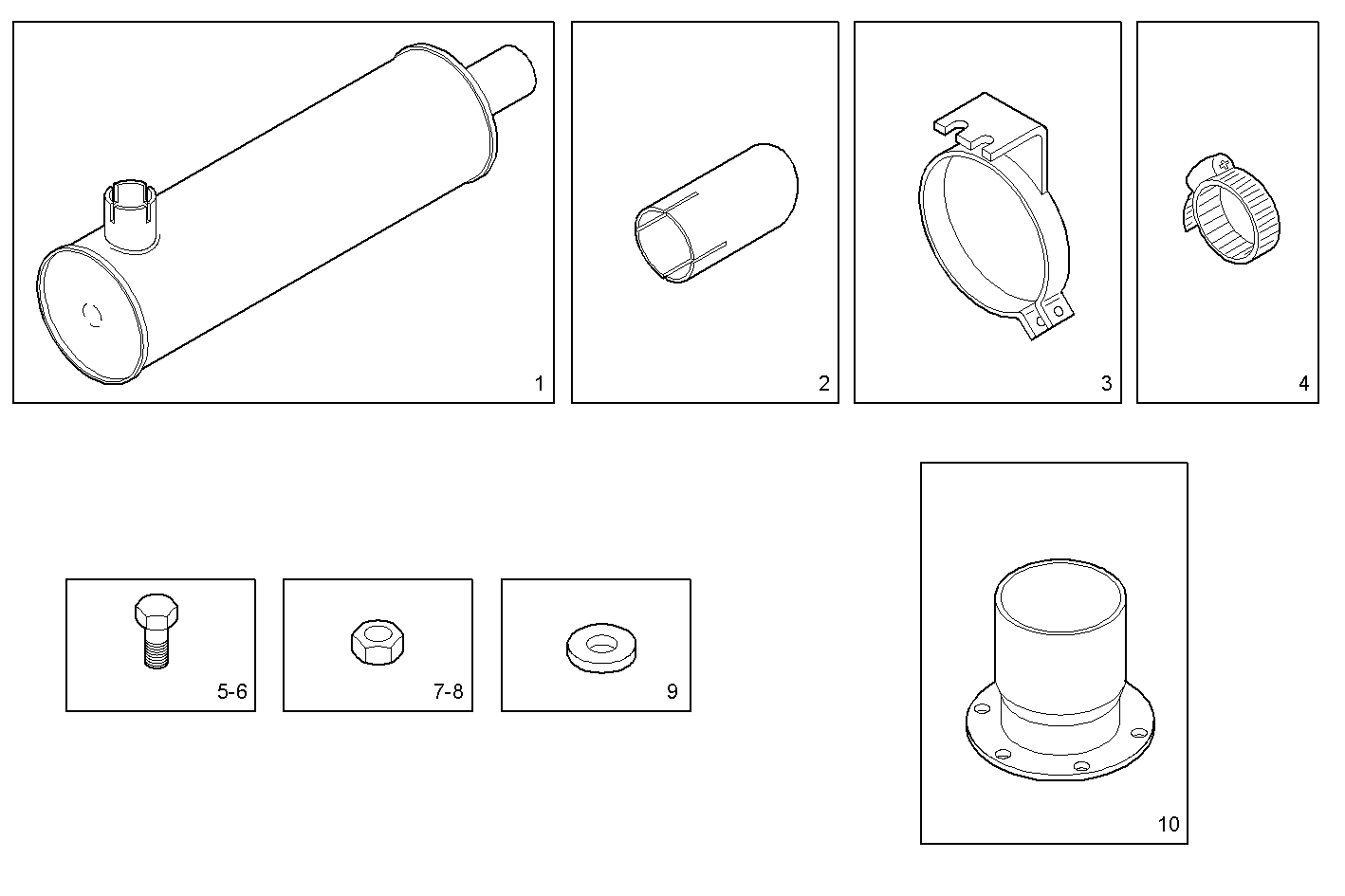

A23020508 SILENCER
| Item | Part number | Description |
|---|---|---|
| 1 | 500306919 | SILENCER |
| 2 | 8039809 | EXHAUST PIPE |
| 3 | 500328457 | CLIP |
| 4 | 42090154 | PIPE CLIP |
| 5 | 11108821 | HEXAGON BOLT M10X130 MM |
| 6 | 16605734 | HEXAGON BOLT M8X30 MM |
| 7 | 17037921 | HEXAGON NUT M8X1,25 |
| 8 | 16750325 | HEXAGON NUT M10 |
| 9 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 10 | 8039911 | FLANGE |
