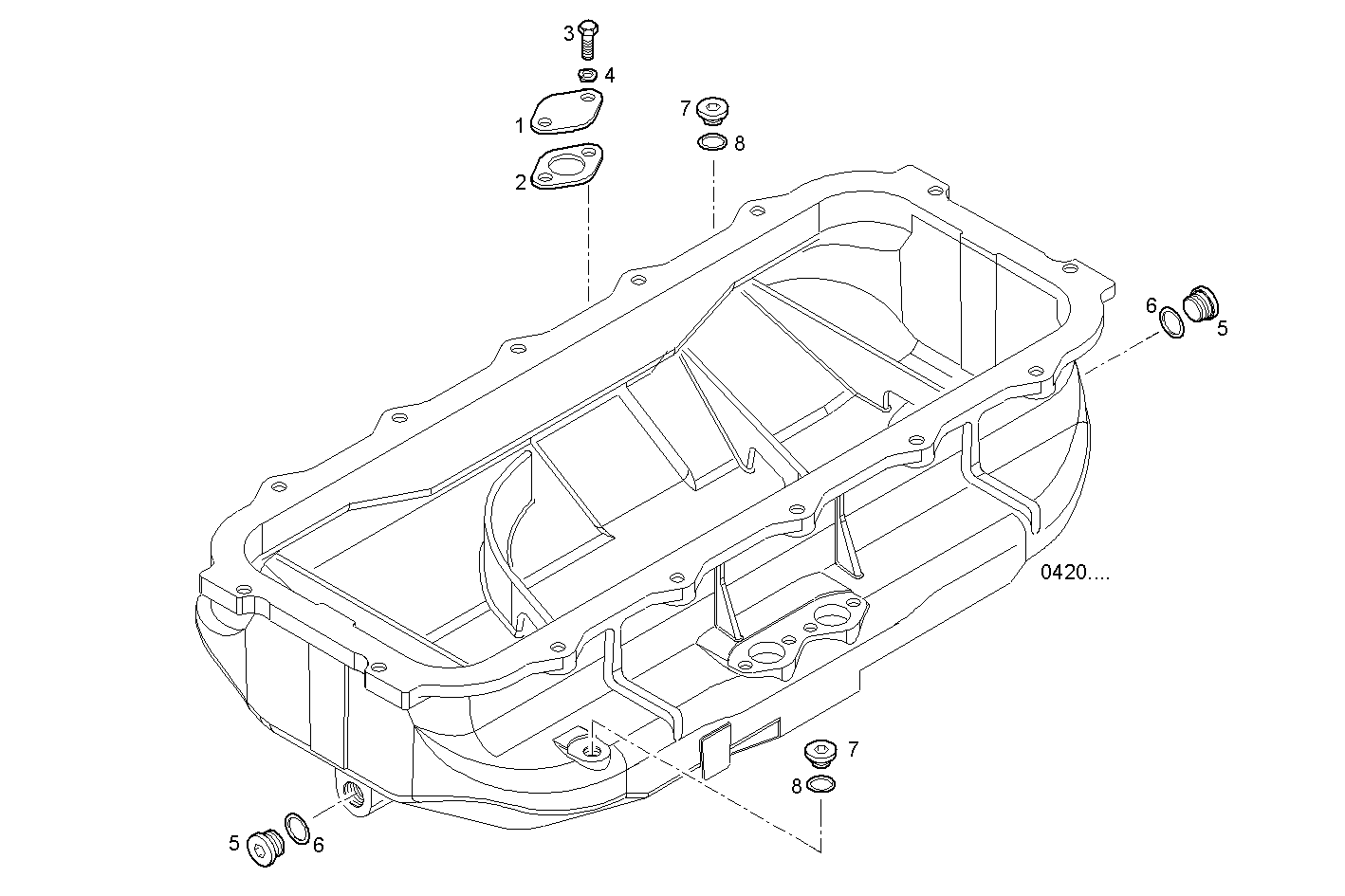

0420.012 OIL SUMP
| Item | Part number | Description |
|---|---|---|
| 1 | 8100113 | FLANGE |
| 2 | 4863361 | GASKET |
| 3 | 16605524 | HEXAGON BOLT M8X20 MM |
| 4 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 5 | 16992611 | THREADED PLUG M22X1,5 |
| 6 | 99489022 | SEAL GASKET Ø22X30 MM SP=1,5 MM |
| 7 | 10300611 | LOCK PLUG M14X1,5 |
| 8 | 99489018 | SEAL GASKET Ø14X22 MM SP=1,5 MM |
