C78ENTF41.00

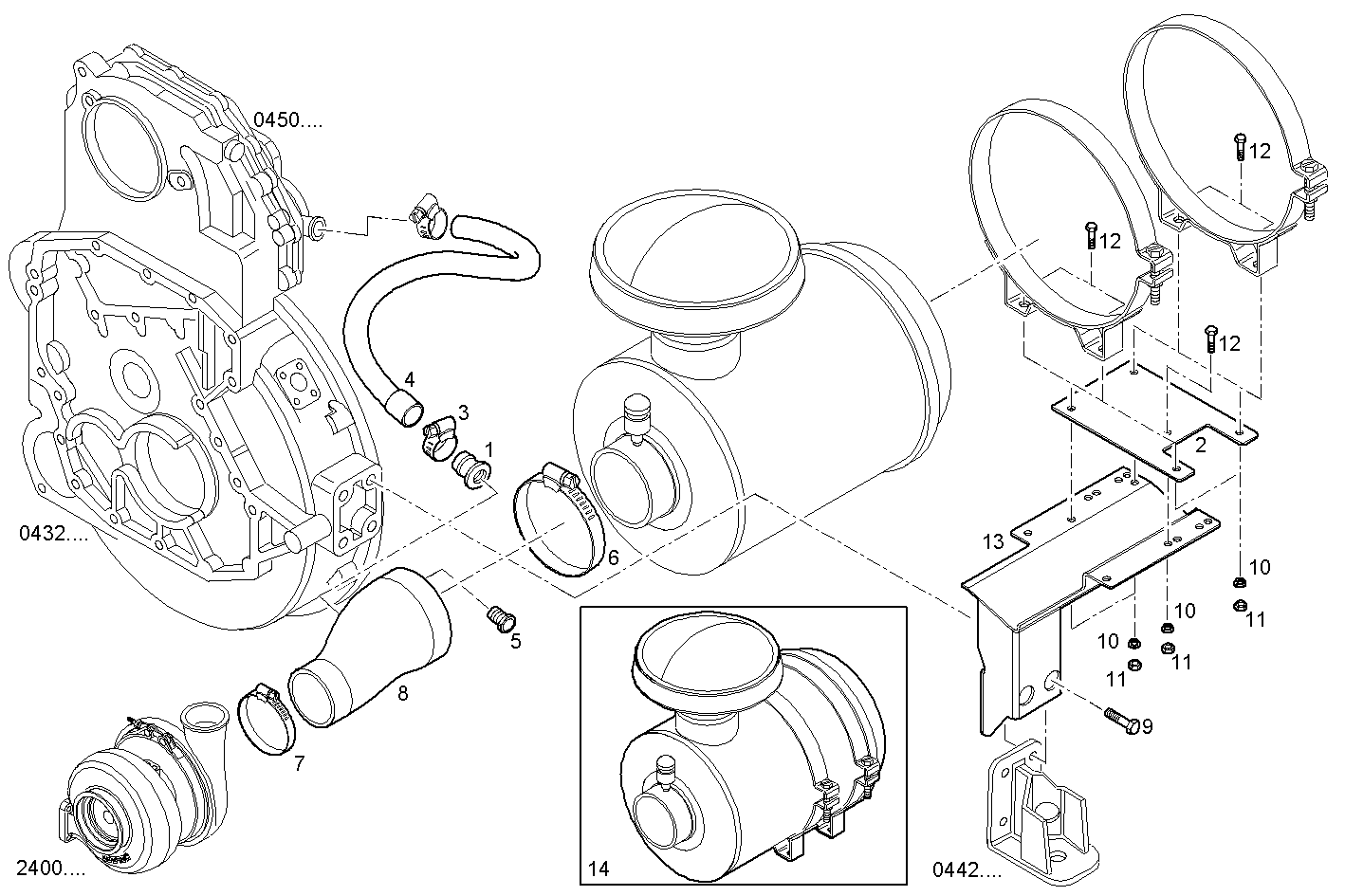

A21210537 AIR CLEANER - metallic body
Item | Part number | Description |
---|---|---|
1 | 8015133 | PIPE SOCKET |
2 | 8040120 | RETAINER |
3 | 17764591 | CLIP Ø20/32 MM |
4 | 8040978 | RUBBER SLEEVE |
5 | 8015315 | PIPE SOCKET |
6 | 17766291 | CLIP |
7 | 17765491 | CLIP Ø70/90 MM |
8 | 8048600 | FILTER HOSE |
9 | 16614624 | HEXAGON BOLT M16X40 MM |
10 | 17091074 | WASHER Ø12X24X2,8 MM |
11 | 17038421 | HEXAGON NUT M12 (8) |
12 | 16922524 | HEXAGON BOLT |
13 | 8039119 | FILTER SUPPORT |
14 | 8025042 | AIR CLEANER ASSY |
