C78ENTF41.00

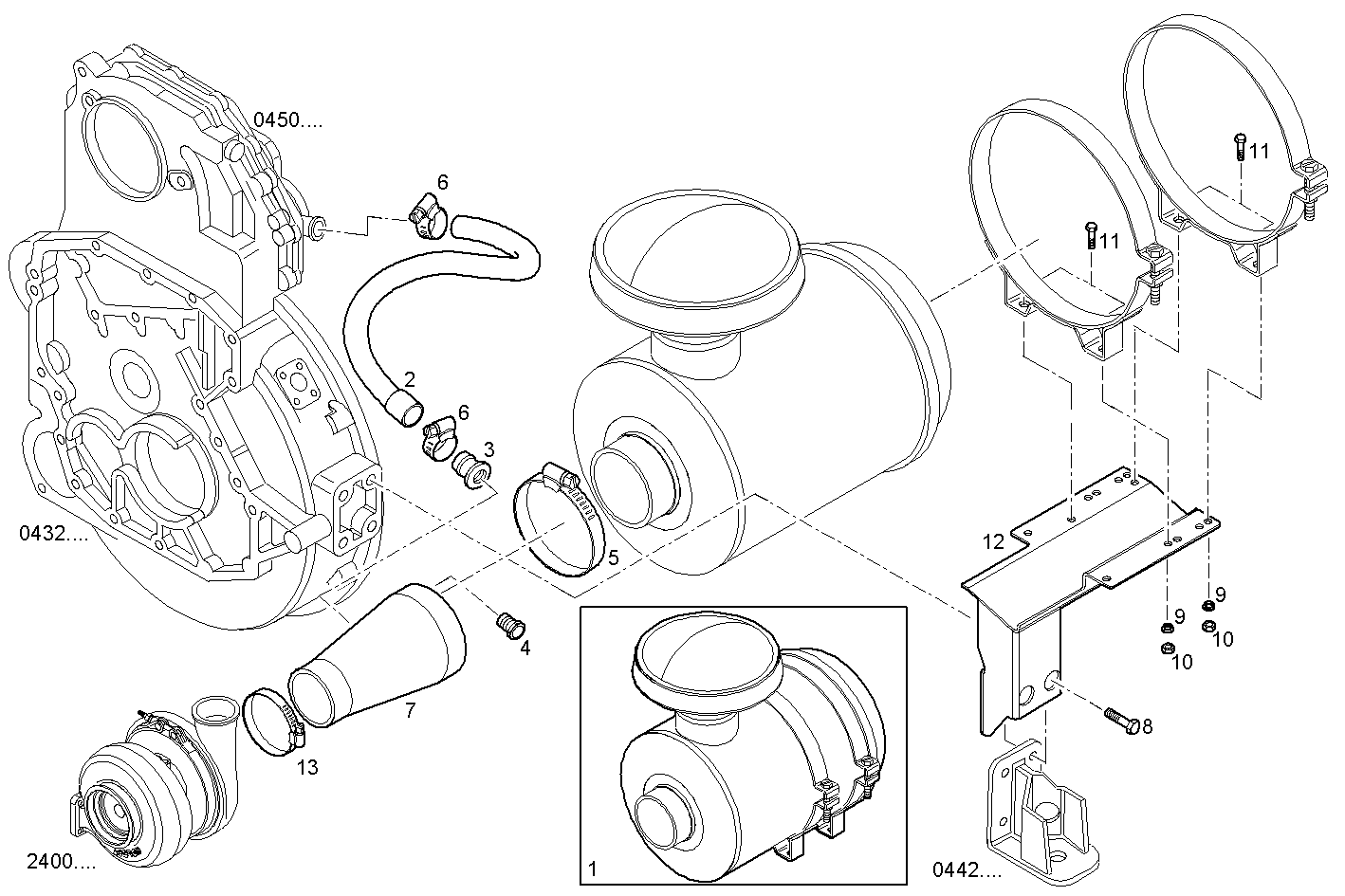

A21210557 AIR CLEANER - plastic body [FROM ...] [FROM ...]
| Item | Part number | Description |
|---|---|---|
| 1 | 8051481 | AIR CLEANER ASSY |
| 2 | 8040978 | RUBBER SLEEVE |
| 3 | 8015133 | PIPE SOCKET |
| 4 | 8015132 | PIPE SOCKET |
| 5 | 17766093 | CLIP Ø160/180 MM |
| 6 | 17764691 | CLIP Ø25/40 MM |
| 7 | 8051483 | FILTER HOSE |
| 8 | 16614624 | HEXAGON BOLT M16X40 MM |
| 9 | 17091074 | WASHER Ø12X24X2,8 MM |
| 10 | 17038425 | HEXAGON NUT M12 (8) |
| 11 | 16922524 | HEXAGON BOLT |
| 12 | 8039119 | FILTER SUPPORT |
| 13 | 17765494 | CLIP dia. = 100/120 |
