C78ENTG20.00A001

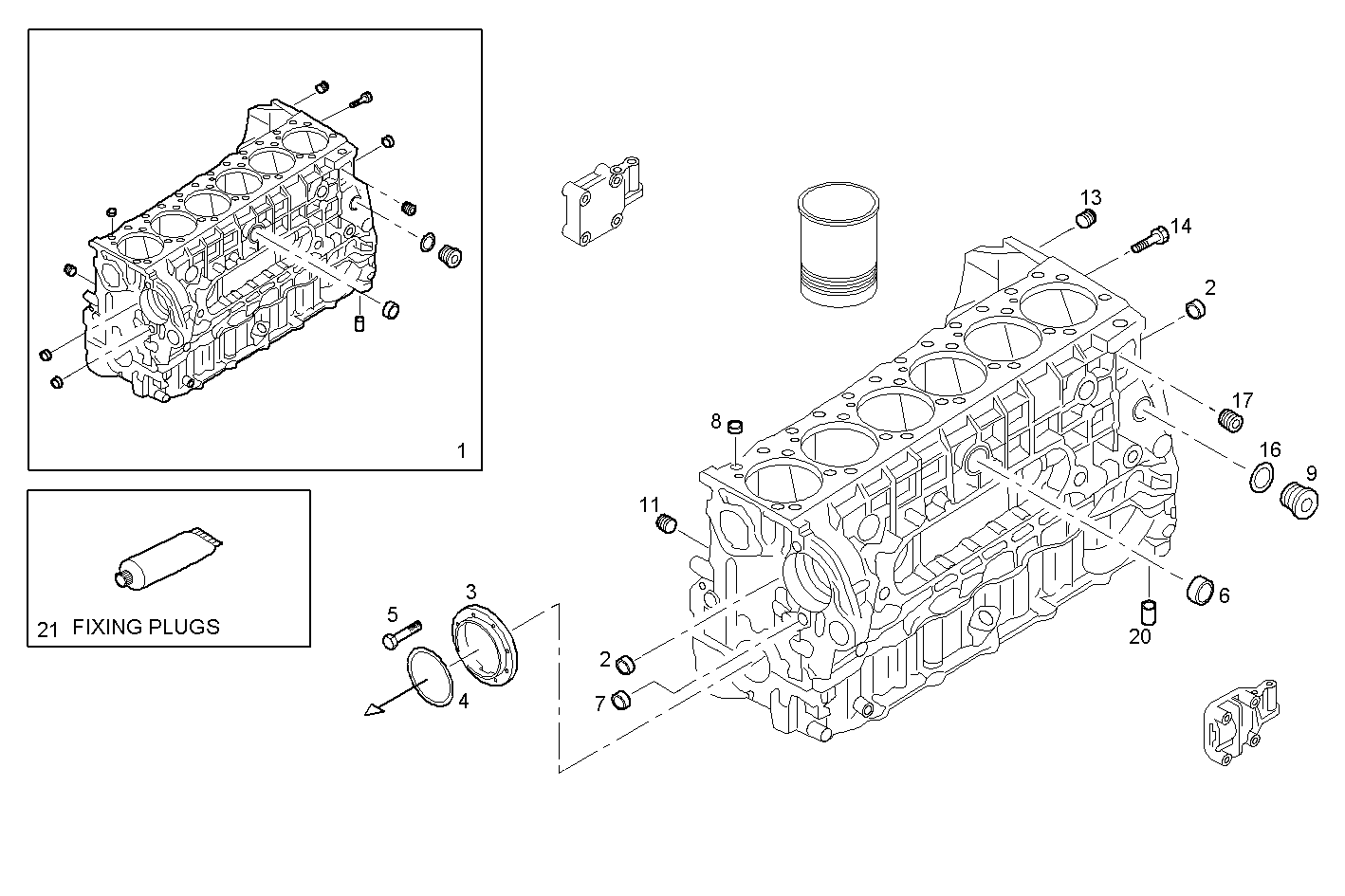

0401.003 CRANKCASE

Iveco/FPT CRANKCASE

Item Part number Description
1 504105690 CRANKCASE
2 16990670 LOCK PLUG Ø22 MM
3 99466465 FRONT COVER
4 17292281 O-RING Ø126,59 MM SP=3,53 MM
5 16707134 SOCKET-HEAD SCREW M8X20 MM
6 16991370 LOCK PLUG Ø45 MM
7 16990870 LOCK PLUG Ø28 MM
8 14282170 LOCK PLUG Ø20 MM
9 16992611 THREADED PLUG M22X1,5
11 504051237 THREADED PLUG DIAM=1/4"
13 98472270 THREADED PLUG
14 500356932 LOCK PLUG Ø12 MM
16 99489022 SEAL GASKET Ø22X30 MM SP=1,5 MM
17 99430692 THREADED PLUG 1/2''
20 99467554 DOWEL PIN Ø14 MM
21 2992695 ADHESIVE/STICKER LOCTITE
