C78ENTG20.00A001

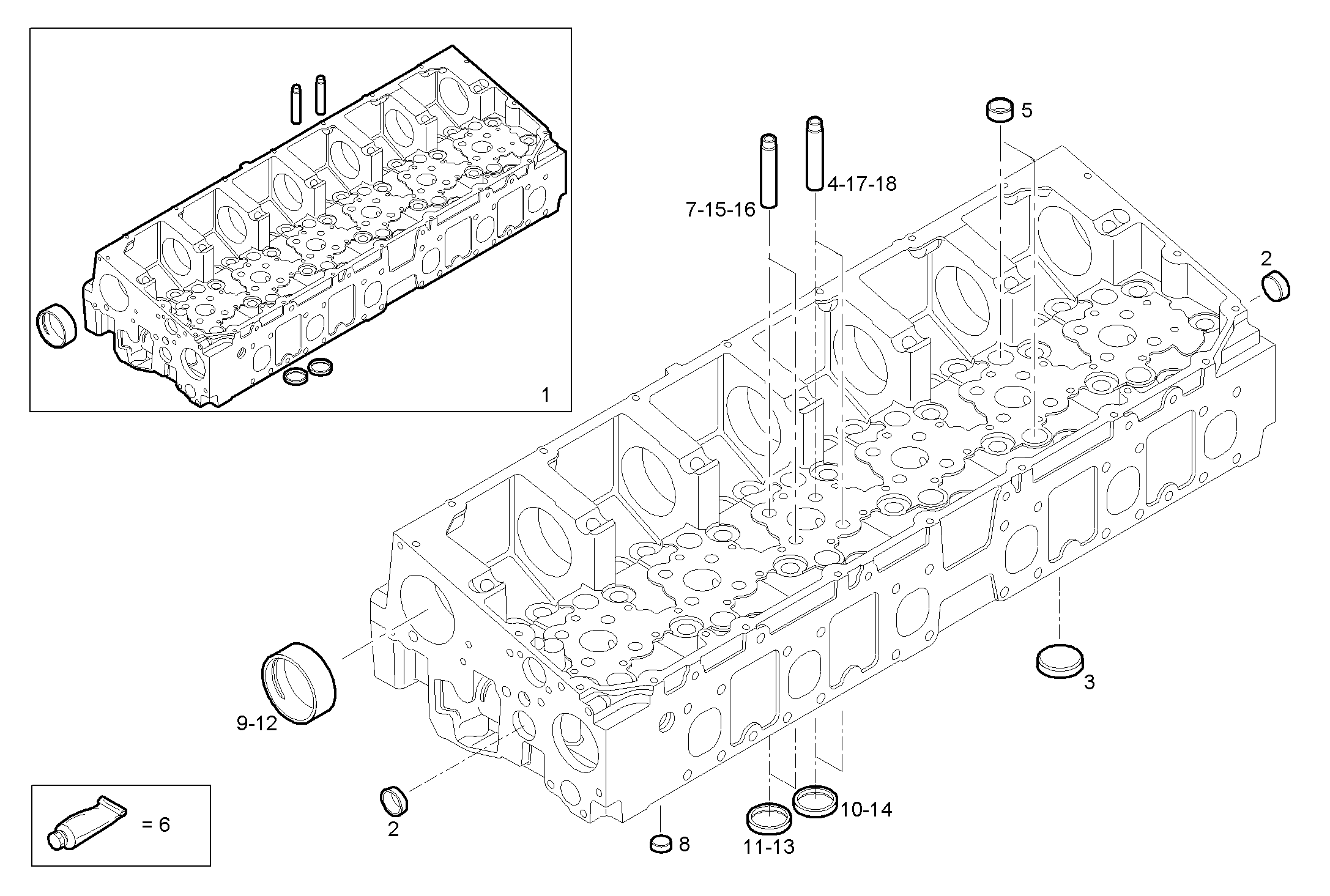

0610.056 CYLINDER HEAD
| Item |
Part number |
Description |
|
1 |
504216518 |
CYLINDER HEAD ASSY |
|
2 |
16990870 |
LOCK PLUG Ø28 MM |
|
3 |
16991370 |
LOCK PLUG Ø45 MM |
|
4 |
500391436 |
VALVE GUIDE EXHAUST |
|
5 |
504344694 |
PLUG Ø25 MM |
|
6 |
2992695 |
ADHESIVE/STICKER LOCTITE |
|
7 |
500391440 |
VALVE GUIDE INTAKE |
|
8 |
14282170 |
LOCK PLUG Ø20 MM |
|
9 |
504078221 |
BUSH |
|
10 |
504203468 |
VALVE SEAT STD. EXHAUST |
|
11 |
99456802 |
VALVE SEAT STD. INTAKE |
|
12 |
504078220 |
BUSH |
|
13 |
500390566 |
VALVE SEAT +0.20 INTAKE |
|
14 |
504205765 |
VALVE SEAT +0.20 EXHAUST |
|
15 |
500391441 |
VALVE GUIDE +0,2 INTAKE |
|
16 |
500391442 |
VALVE GUIDE +0,4 INTAKE |
|
17 |
500391437 |
VALVE GUIDE +0,2 EXHAUST |
|
18 |
500391438 |
VALVE GUIDE +0,4 EXHAUST |
