C78ENTG20.00A001

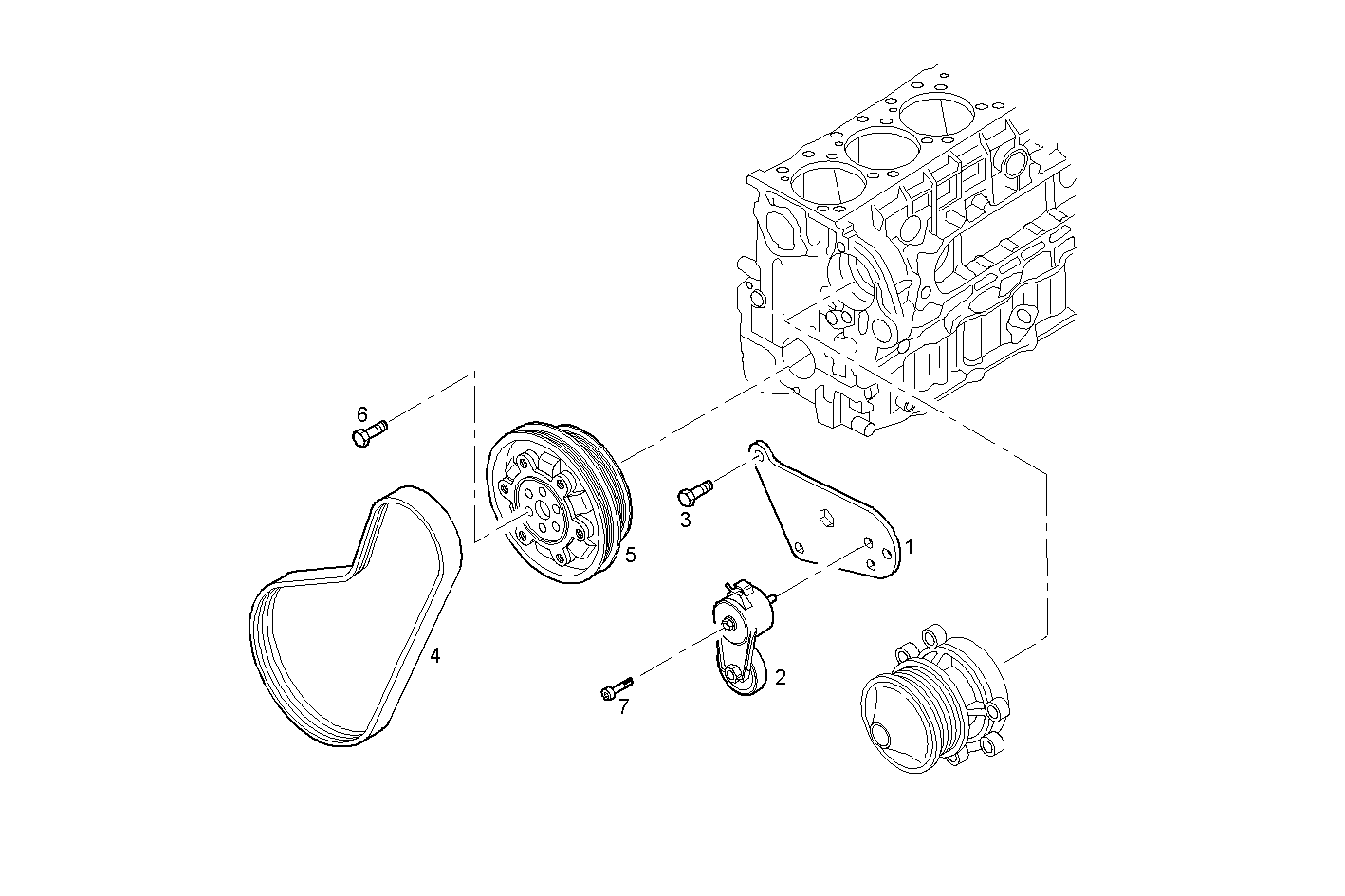

0843.004 DRIVING PULLEY
| Item | Part number | Description |
|---|---|---|
| 1 | 504010853 | SUPPORT |
| 2 | 504153873 | BELT TENSIONER |
| 3 | 16673635 | HEXAGON BOLT M8X1.25X20 |
| 4 | 504032641 | WATER PUMP BELT |
| 5 | 504029279 | PULLEY |
| 6 | 500354585 | SCREW |
| 7 | 16691224 | CYLIND-HEAD SCREW M8X55 MM |
