C78ENTG20.00A001

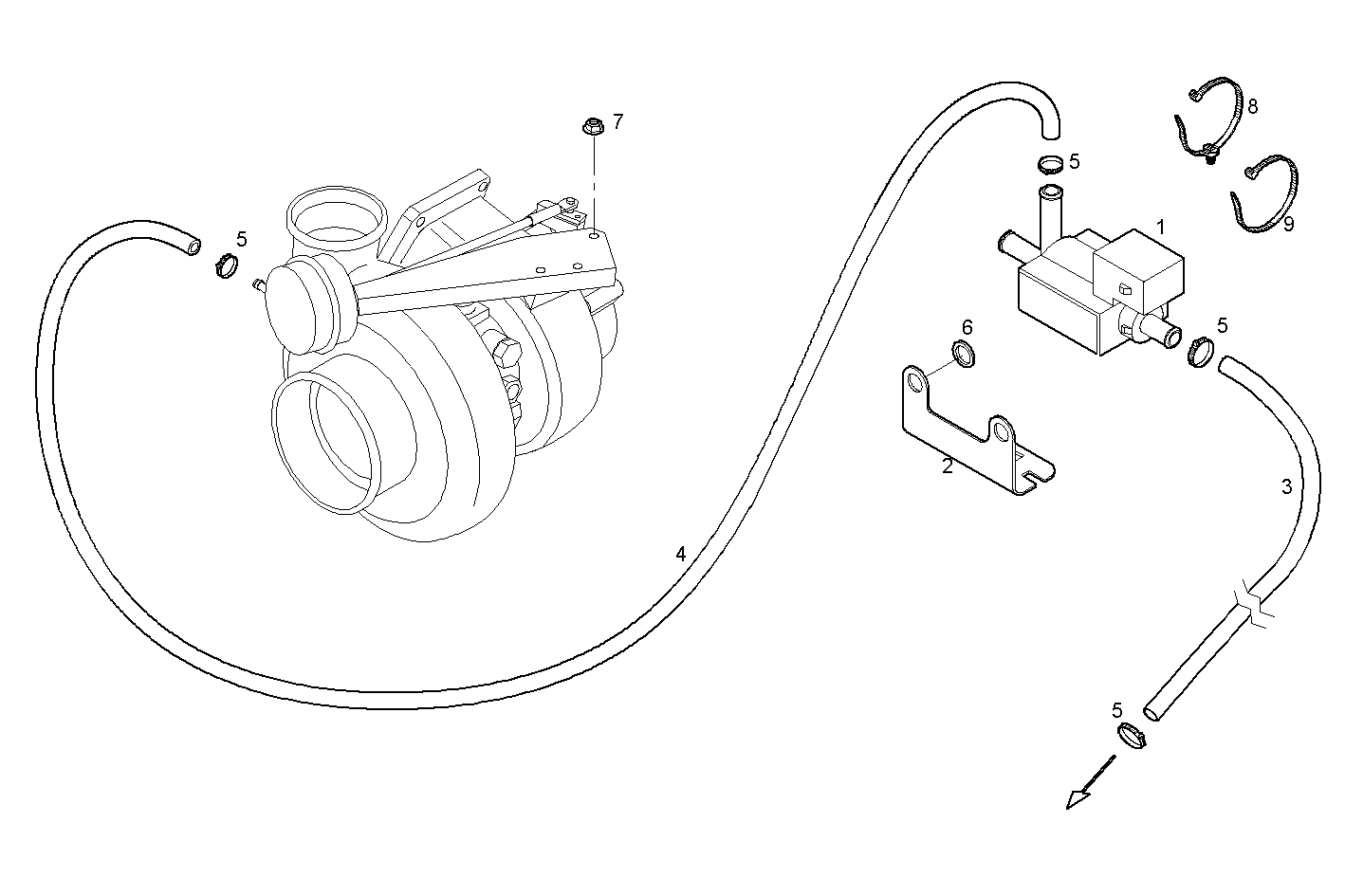

2406.001 CONTROL VALVE
Item | Part number | Description |
---|---|---|
1 | 504064372 | ELECTROVALVE |
2 | 504087881 | RETAINER |
3 | 504064374 | RUBBER HOSE |
4 | 504076095 | RUBBER HOSE |
5 | 18087594 | CLIP |
6 | 504087879 | SPACING BAR |
7 | 17045735 | HEXAGON NUT |
8 | 504023286 | CABLE STRAP |
9 | 42099097 | CABLE STRAP |
