C78ENTG20.00A001

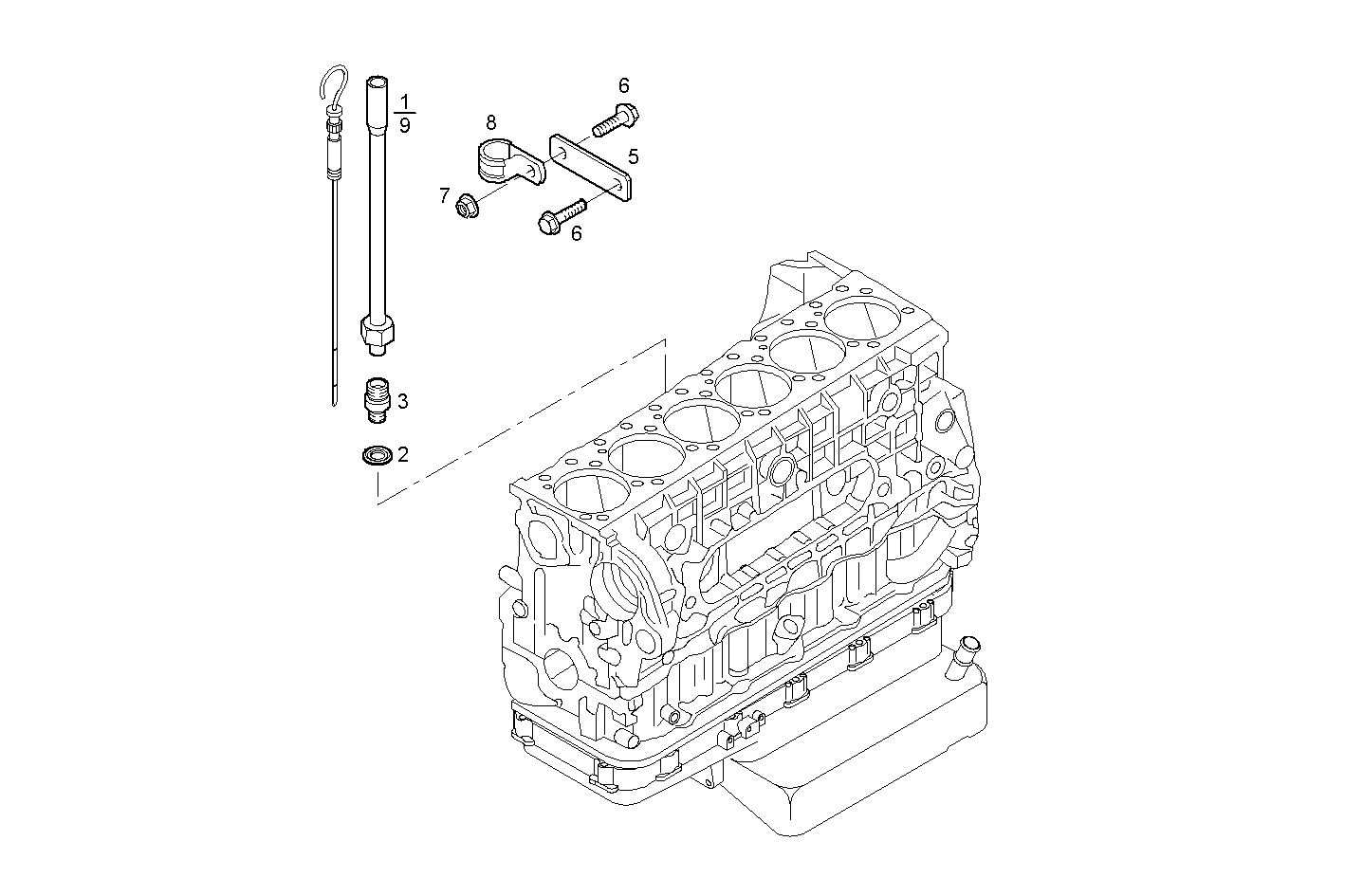

2712.001 OIL DIPSTICK PIPE
Item | Part number | Description |
---|---|---|
1 | 504045023 | OIL LEVEL TUBE [UP TO # 58358] |
2 | 99489020 | SEAL GASKET Ø18X26 MM SP=1,5 MM |
3 | 504023175 | THREADED UNION M18X1,5 - M24X1 |
5 | 504012288 | FASTENING BRACKET |
6 | 16586225 | HEXAGON BOLT M8X1,25X16 MM |
7 | 17044725 | HEXAGON NUT M8 |
8 | 17316699 | PIPE CLIP Ø14 MM |
9 | 504117964 | OIL LEVEL TUBE [FROM # 58359] |
