C78ENTG20.00A001

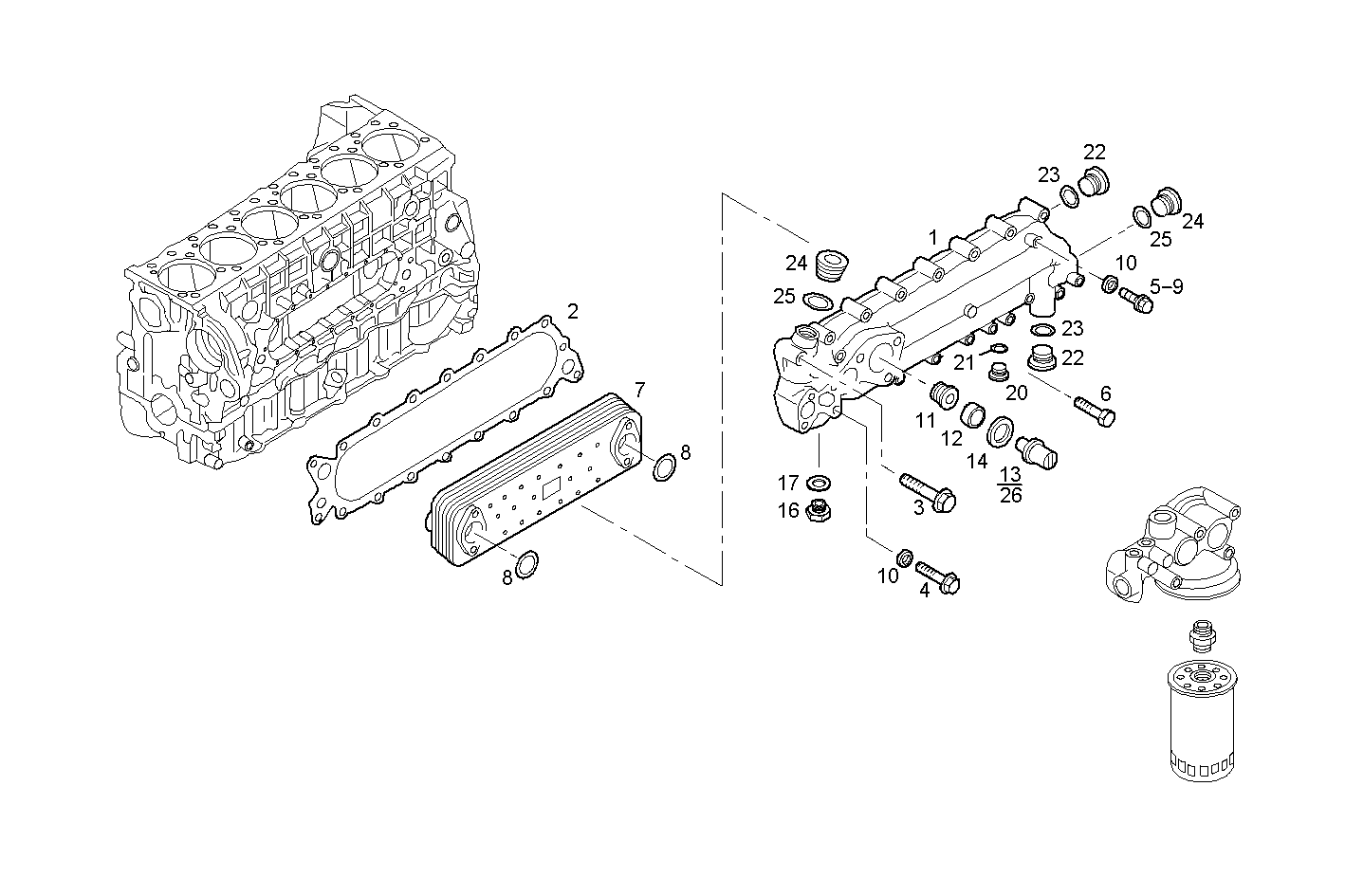

3150.006 OIL - WATER HEAT EXCHANGER

Iveco/FPT OIL - WATER HEAT EXCHANGER

Item Part number Description
1 504140957 HEAT EXANGER BODY
2 504045796 FLAT ENGINE GASKET
3 16586725 HEXAGON BOLT M8X1.25X40 MM
4 16586925 HEXAGON BOLT M8X50 MM
5 16598224 HEXAGON BOLT M8X90 MM
6 16588624 HEXAGON BOLT M12x60 MM (8.8)
7 500301692 OIL COOLER
8 17283581 O-RING Ø44,12 MM SP=2,62 MM
9 16586625 HEXAGON BOLT M8X35 MM
10 99489014 SEAL GASKET Ø7 MM
11 99433799 THREADED PLUG M32X1,5
12 99433798 SPACING BAR Ø28 MM
13 98498322 VALVE
14 98494952 GASKET M35X1,5
16 10300611 LOCK PLUG M14X1,5
17 99489018 SEAL GASKET Ø14X22 MM SP=1,5 MM
20 16992415 THREADED PLUG M16X1,5
21 99489019 WASHER Ø16X24 MM SP=1,5 MM
22 16993711 THREADED PLUG M35X1,5
23 99469380 SEAL GASKET Ø35 MM
24 16993511 LOCK PLUG M28X1,5
25 99432291 SEAL GASKET Ø28 MM
26 504117511 VALVE
