C78ENTG20.00A001

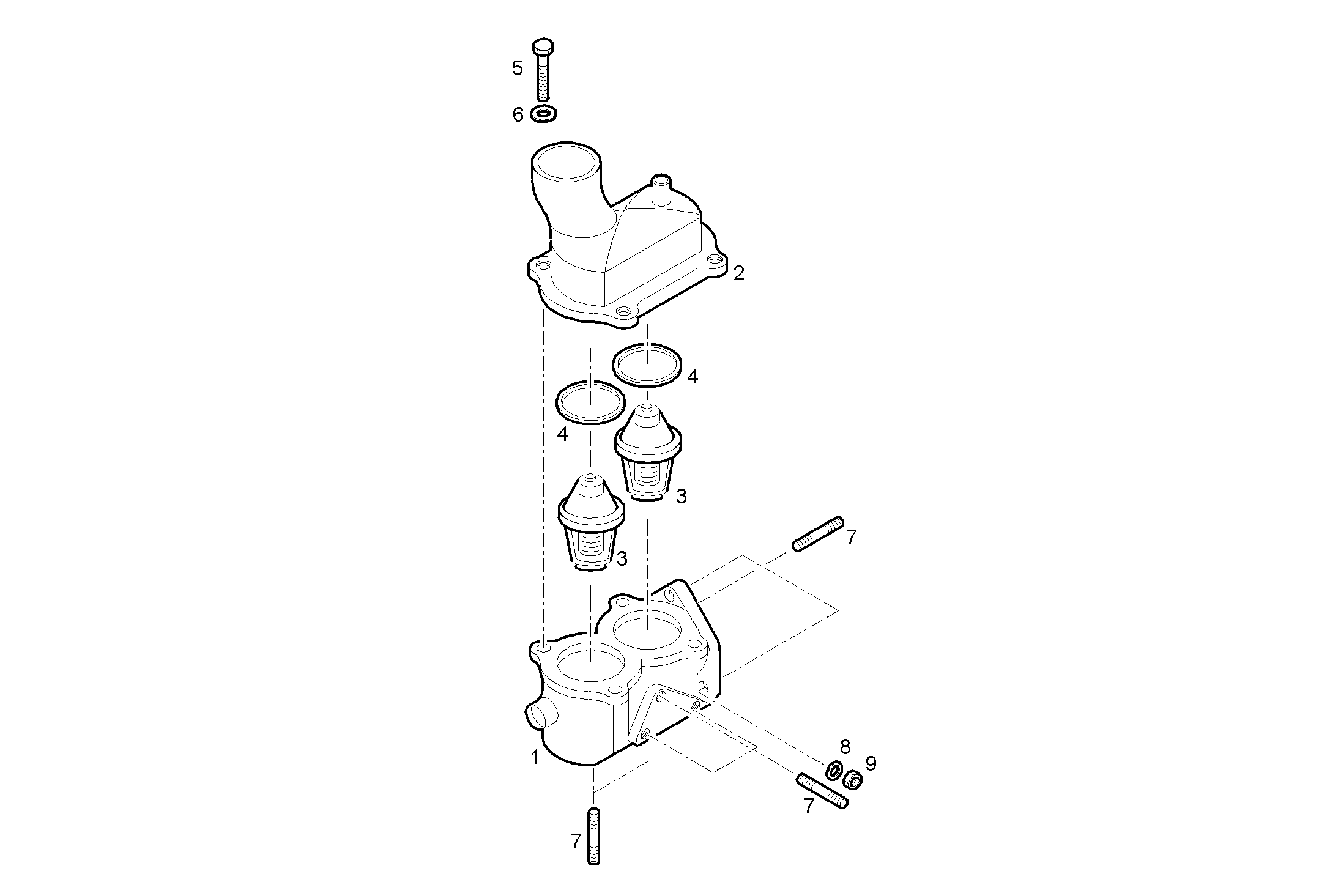

3260.054 TEMPERATURE REGULATOR - loose
| Item | Part number | Description |
|---|---|---|
| 1 | 61319248 | THERMOSTAT BODY |
| 2 | 98420628 | THERM.BODY COVER |
| 3 | 98424854 | THERMOSTAT |
| 4 | 98465113 | O-RING Ø60 MM |
| 5 | 11343821 | HEXAGON BOLT M10X1,25X50 MM |
| 6 | 17090174 | SPRING WASHER Ø10X20 MM |
| 7 | 13543524 | STUD M8X16X25 |
| 8 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 9 | 17037925 | HEXAGON NUT M8X1,25 |
