| Item |
Part number |
Description |
|

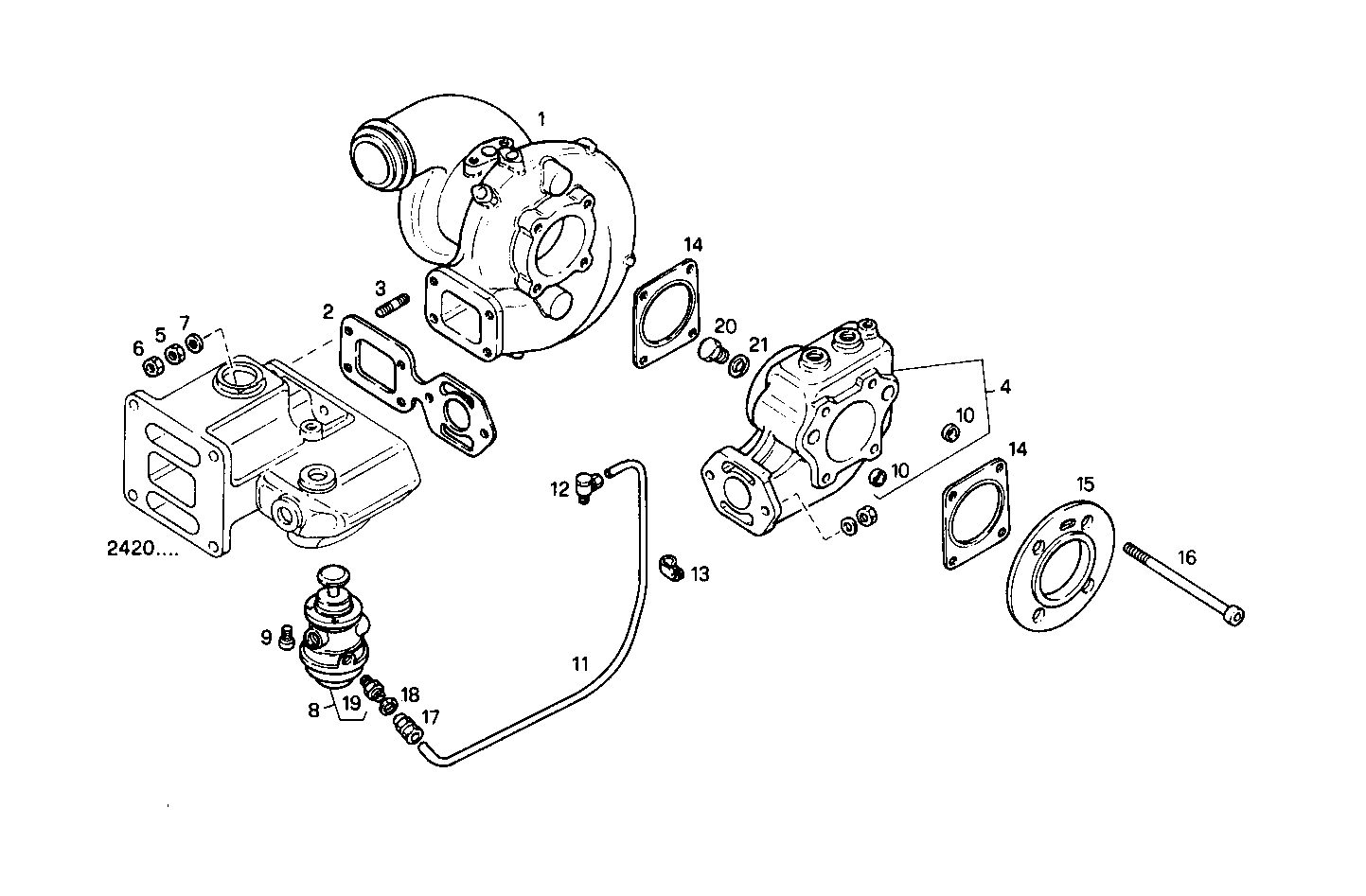

1 |
8030365 |
WATER COOL.TURBOCHARGER K.K.K. |
|
2 |
8030363 |
GASKET |
|
3 |
8017871 |
STUD |
|
4 |
8030437 |
EXHAUST COOL. ELBOW ASSY |
|
5 |
17038131 |
HEXAGON NUT M10 |
|
6 |
16979631 |
HEXAGON NUT M10 |
|
7 |
16665604 |
WASHER Ø10X20 MM |
|
8 |
8031472 |
VALVE WASTE-GATE - ASSY |
|
9 |
16689134 |
SOCKET-HEAD SCREW M6X16 MM |
|
10 |
16990570 |
LOCK PLUG Ø20 MM |
|
11 |
8030557 |
WATER PIPE |
|
12 |
8026816 |
SCREW CONNECTOR ASSY M10X1 |
|
13 |
4656139 |
FASTENING BRACKET |
|
14 |
8030905 |
GASKET |
|
15 |
8030472 |
FLANGE |
|
16 |
8030470 |
SCREW M10X120 |
|
17 |
16500311 |
PIPE SOCKET M16X1,5/M18X1,5 |
|
18 |
4858609 |
WASHER Ø16X22 MM SP=1,5 MM |
|
19 |
8012465 |
PIPE SOCKET |
|
20 |
16692211 |
PLUG M12X1,5 |
|
21 |
99489017 |
SEAL GASKET Ø12X20 MM SP=1,5 MM |
