C78ENTM50.10

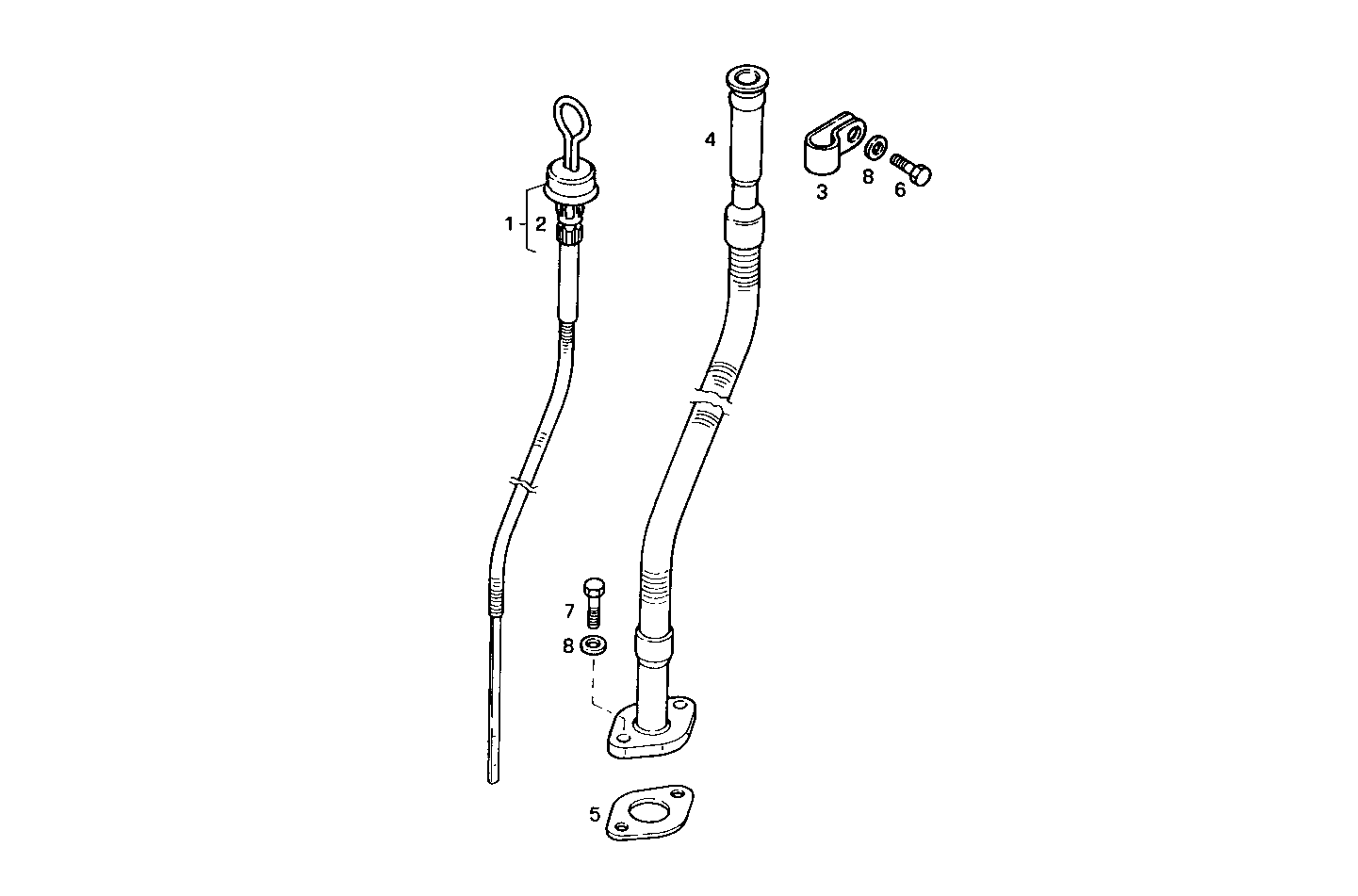

2710.108 OIL DIPSTICK

Iveco/FPT OIL DIPSTICK

Item Part number Description
1 8030477 OIL DIPSTICK ASSY
2 4624702 GASKET
3 8023543 CLIP
4 8030476 OIL LEVEL TUBE
5 4863361 GASKET
6 16605524 HEXAGON BOLT M8X20 MM
7 16605624 HEXAGON BOLT M8X25 MM (8.8)
8 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
