C78ENTM50.10

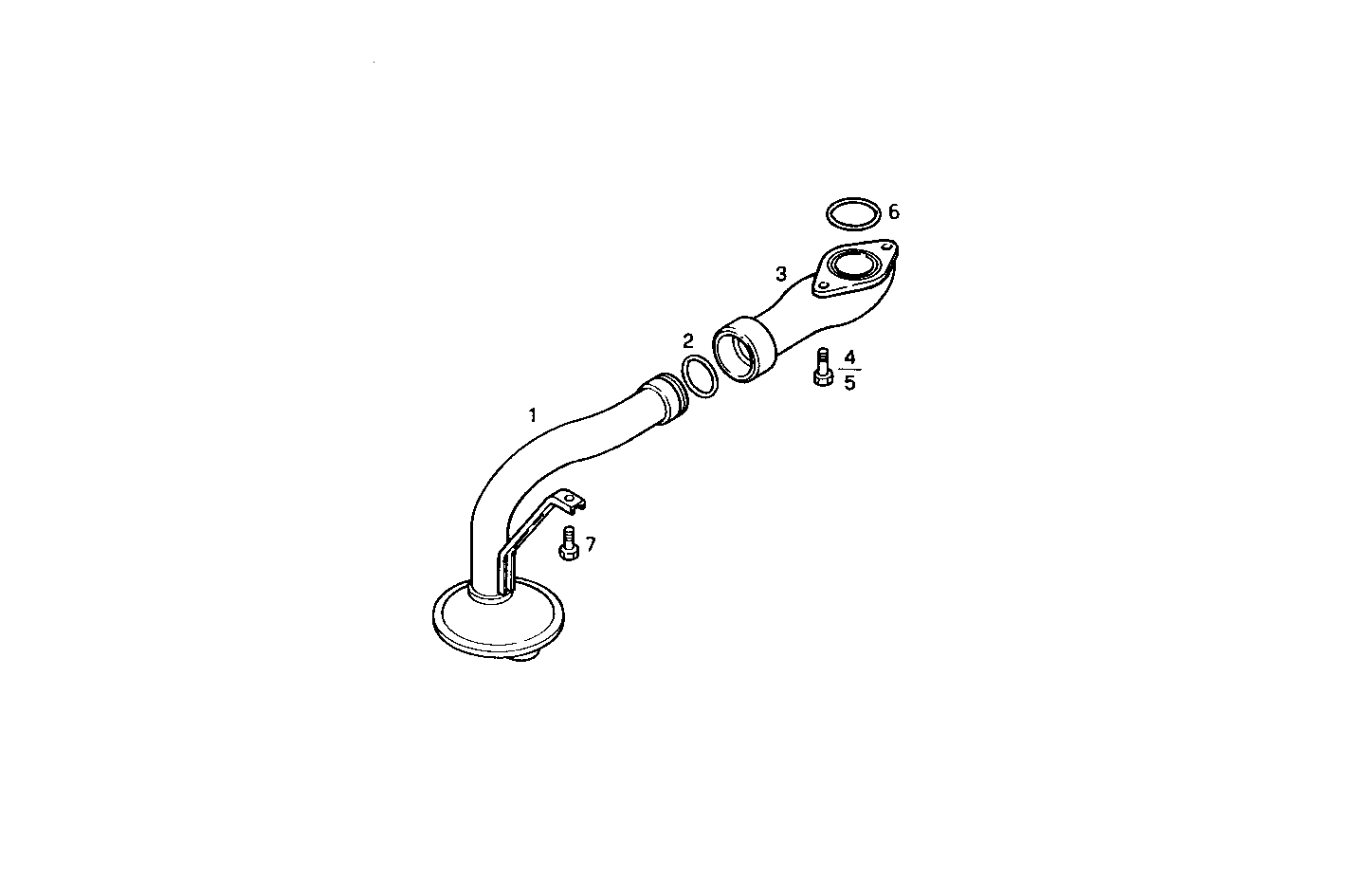

3010.181 LUBE OIL LINES
Item | Part number | Description |
---|---|---|
1 | 8030224 | SUCTION STRAINER |
2 | 17282981 | O-RING 2,62x34,59 |
3 | 98474898 | INTAKE ELBOW |
4 | 16586724 | SCREW M8X1,25X40 MM |
5 | 16592224 | HEXAGON BOLT M8X55 MM |
6 | 99477046 | O-RING Ø38 MM SP=3 MM |
7 | 16586224 | HEXAGON BOLT M8X1,25X16 MM |
