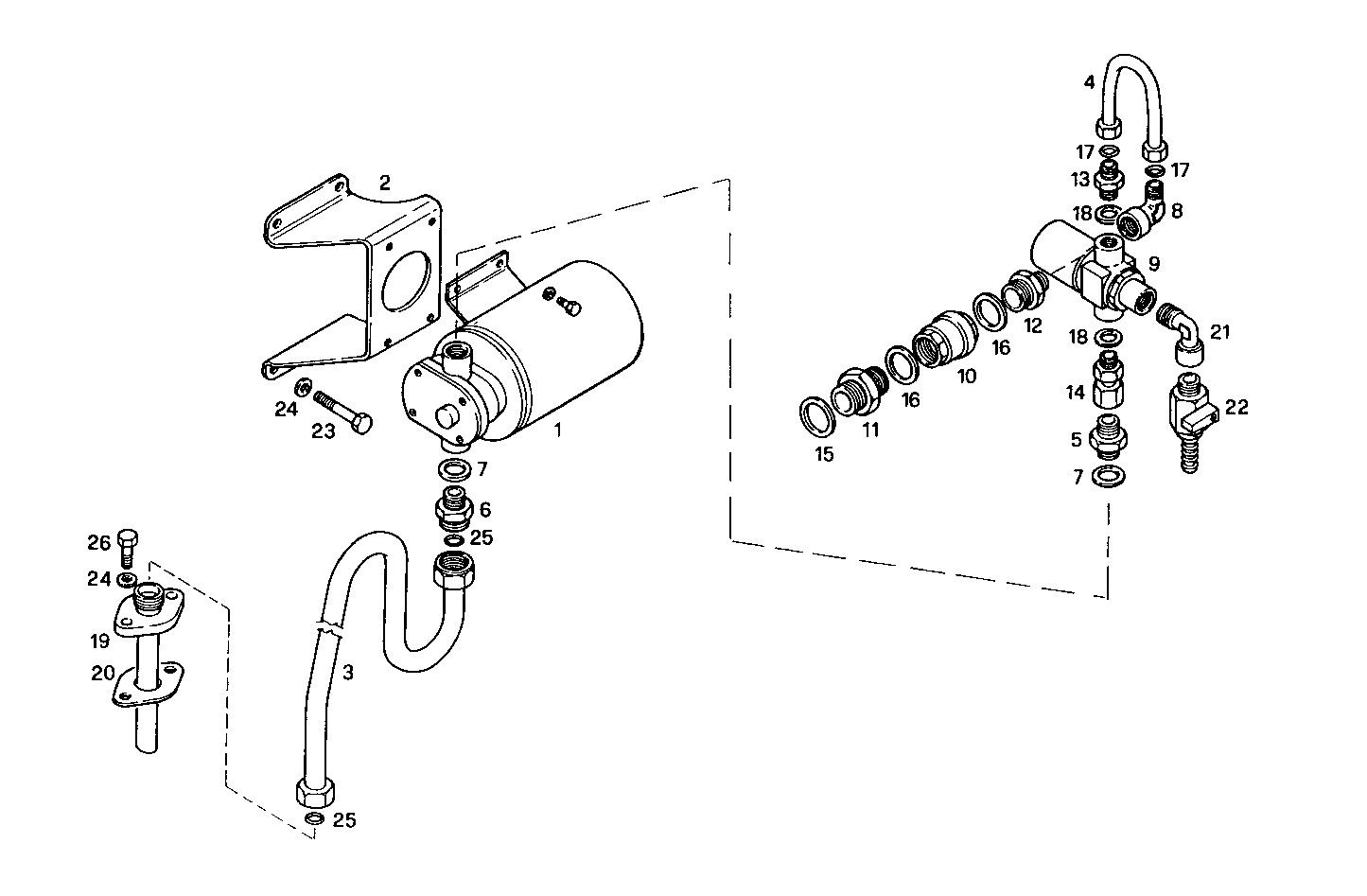

| Item |
Part number |
Description |
|
1 |
8032366 |
OIL DRAIN ELECTRIC PUMP |
|
2 |
8030497 |
RETAINER |
|
3 |
8031859 |
OIL LINE |
|
4 |
8031860 |
OIL LINE |
|
5 |
8031881 |
PIPE SOCKET Ø3/8''/M16 MM |
|
6 |
8011422 |
PIPE SOCKET Ø3/8''/M22 MM |
|
7 |
11270460 |
GASKET Ø17X21X1,5 MM |
|
8 |
16504011 |
PIPE SOCKET |
|
9 |
8031292 |
ELECTROVALVE |
|
10 |
8011241 |
VALVE 1/2'' |
|
11 |
8031795 |
PIPE SOCKET Ø1/2''/M24 MM |
|
12 |
8031796 |
PIPE SOCKET 1/2''/M16 |
|
13 |
16500211 |
THREADED UNION |
|
14 |
8031863 |
PIPE SOCKET |
|
15 |
98429281 |
SEAL GASKET Ø24X31 MM SP=1,5 MM |
|
16 |
11271460 |
GASKET Ø21X26X1,5 MM |
|
17 |
8024646 |
O-RING Ø6 MM |
|
18 |
99489018 |
SEAL GASKET Ø14X22 MM SP=1,5 MM |
|
19 |
8031882 |
OIL LINE |
|
20 |
4863361 |
GASKET |
|
21 |
8005303 |
PIPE SOCKET M16X1,5 |
|
22 |
8113932 |
DRAIN COCK |
|
23 |
16586924 |
HEXAGON BOLT M8X50 MM |
|
24 |
17089474 |
SPRING WASHER Ø8X16 MM SP=1,4 MM |
|
25 |
8024649 |
O-RING Ø12 MM |
|
26 |
16605624 |
HEXAGON BOLT M8X25 MM (8.8) |
