C78ENTM50.10

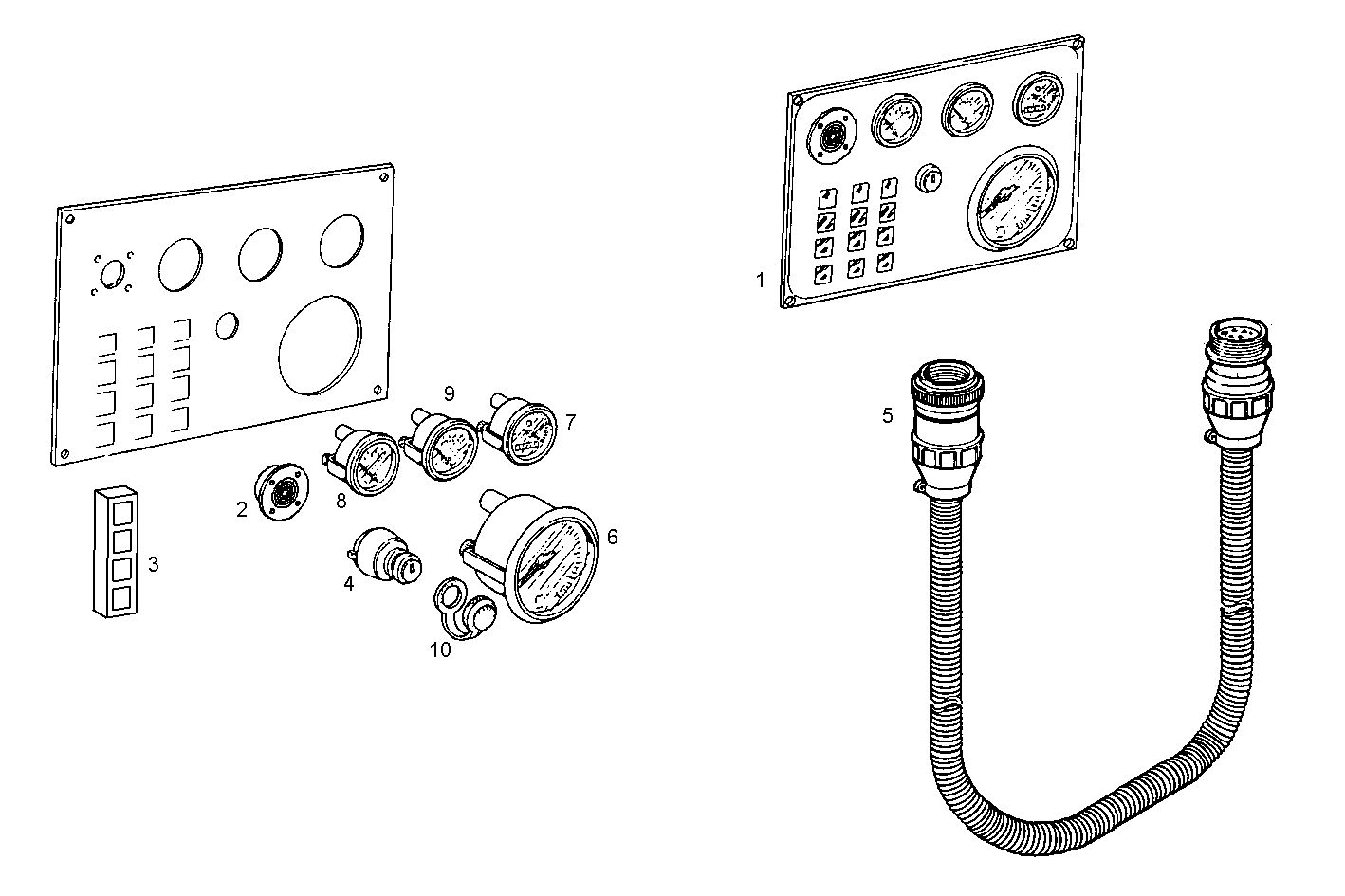

A38780011 ELECTRIC INSTRUMENTS PANEL - 24V - VDO
| Item | Part number | Description |
|---|---|---|
| 1 | 8031367 | CONTROL PANEL ASSY |
| 2 | 8110230 | ACOUSTIC HORN |
| 3 | 8031164 | WARNING LIGHT |
| 4 | 8103708 | SWITCH |
| 5 | 8031152 | EXTENSION |
| 6 | 8030621 | REVOLUTION COUNTER |
| 7 | 8030616 | VOLTMETER |
| 8 | 8030614 | THERMOMETER |
| 9 | 8030615 | PRESSURE GAUGE 10 BAR |
| 10 | 8110226 | CAP |
