C78ENTM50.10

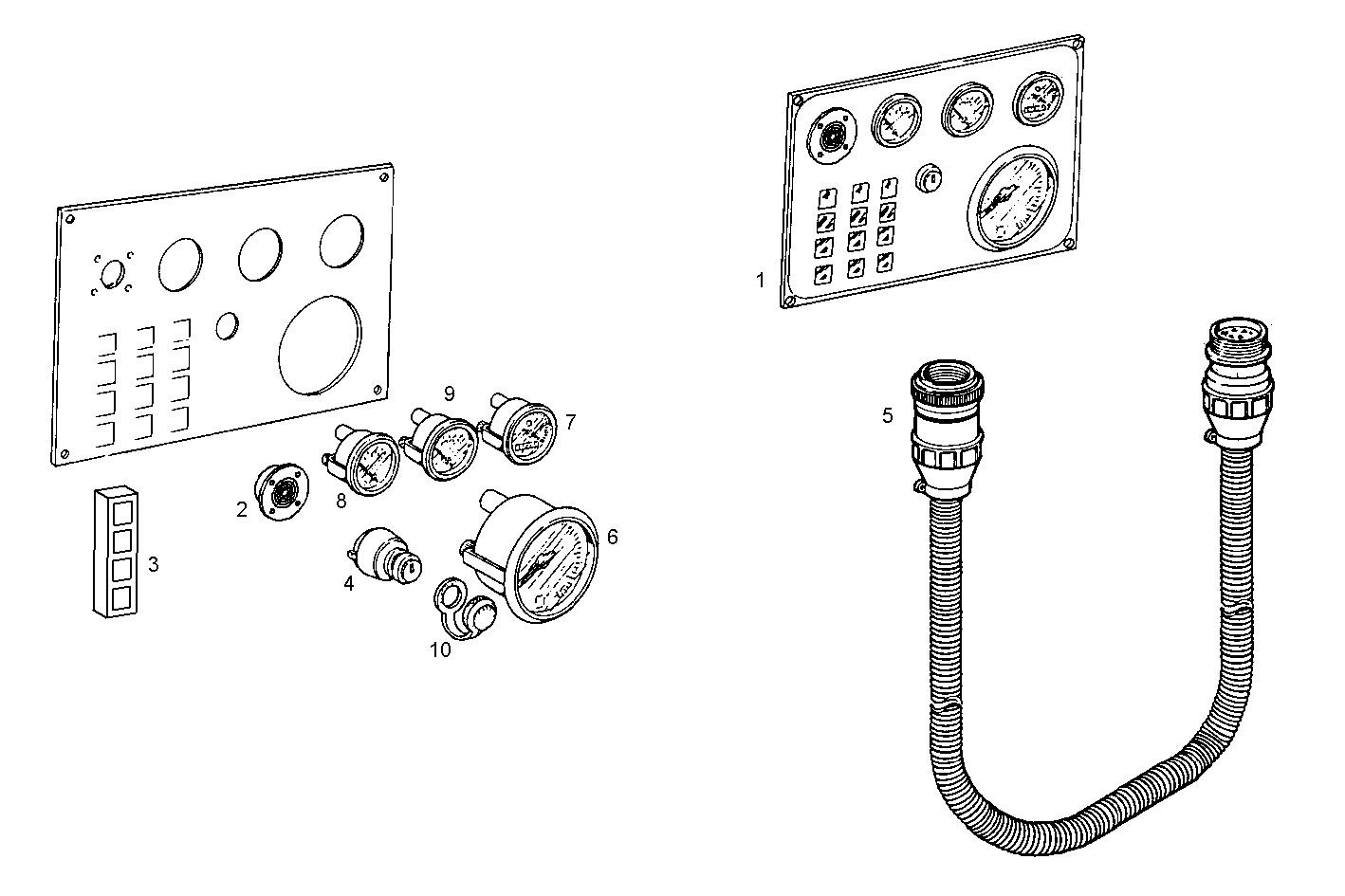

A38780502 ELECTRIC INSTRUMENTS PANEL - analogical
Item | Part number | Description |
---|---|---|
1 | 8031367 | CONTROL PANEL ASSY |
2 | 8110230 | ACOUSTIC HORN |
3 | 8031164 | WARNING LIGHT |
4 | 8103708 | SWITCH |
5 | 8031150 | EXTENSION |
6 | 8030621 | REVOLUTION COUNTER |
7 | 8030616 | VOLTMETER |
8 | 8030614 | THERMOMETER |
9 | 8030615 | PRESSURE GAUGE 10 BAR |
10 | 8110226 | CAP |
