C78ENTM50.10

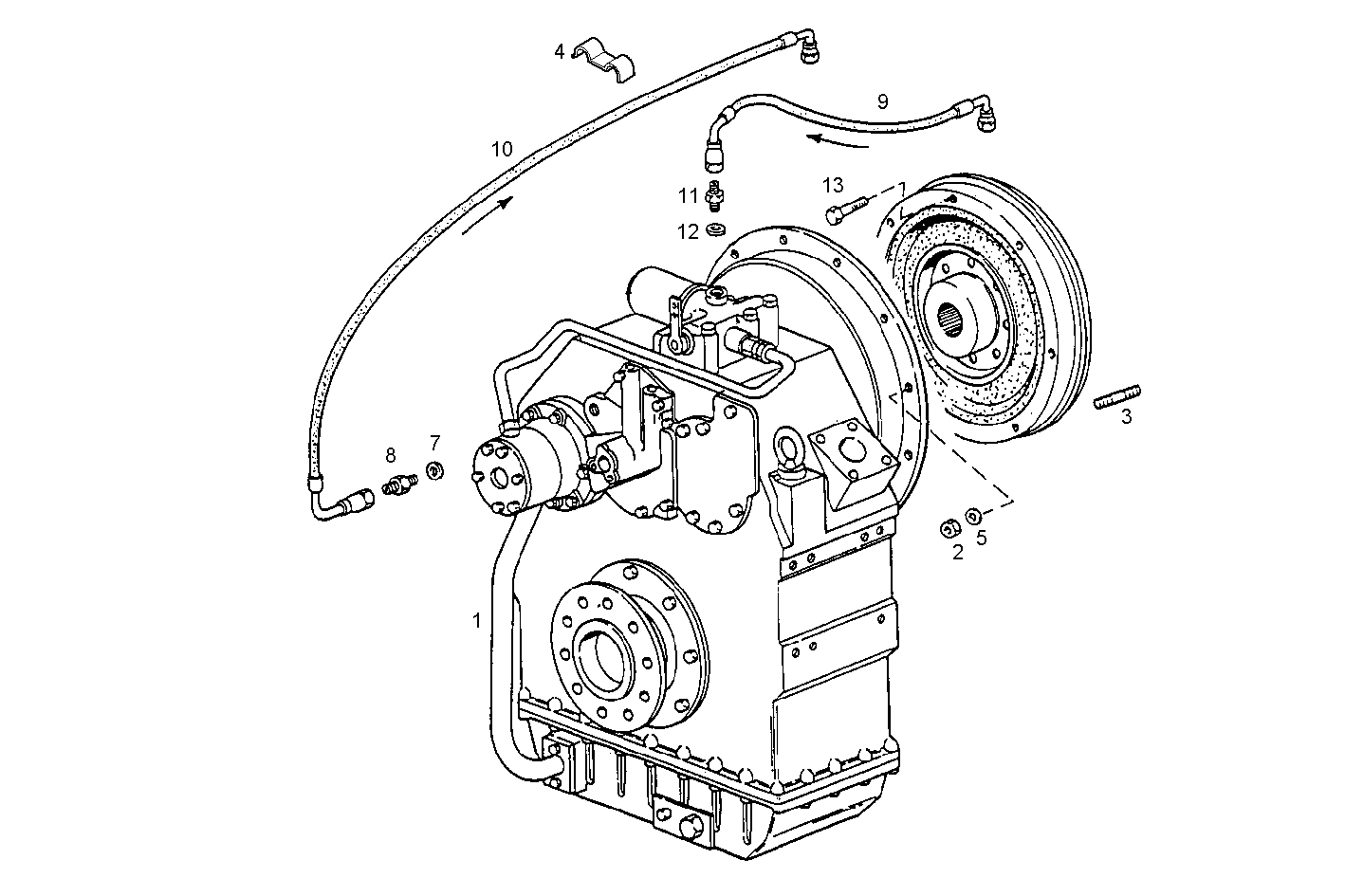

A51105001/1 MARINE GEAR ZF-MPM IRM 280-1A - ratio 1.48:1
| Item | Part number | Description |
|---|---|---|
| 1 | 8032284 | MARINE GEAR |
| 2 | 17038121 | HEXAGON NUT M10 |
| 3 | 17368624 | STUD M10X1,5X25 MM |
| 4 | 8032246 | SPRING CLAMP |
| 5 | 17090174 | SPRING WASHER Ø10X20 MM |
| 6 | 8031114 | FLEXIBLE COUPLING |
| 7 | 4858609 | WASHER Ø16X22 MM SP=1,5 MM |
| 8 | 8100897 | PIPE SOCKET 1/2"/M16X1,5 |
| 9 | 8105619 | HOSE |
| 10 | 8031908 | OIL HOSE |
| 11 | 8023701 | PIPE SOCKET |
| 12 | 11271460 | GASKET Ø21X26X1,5 MM |
| 13 | 17458134 | SCREW M12X1,75X25 MM |
