C78ENTM50.10

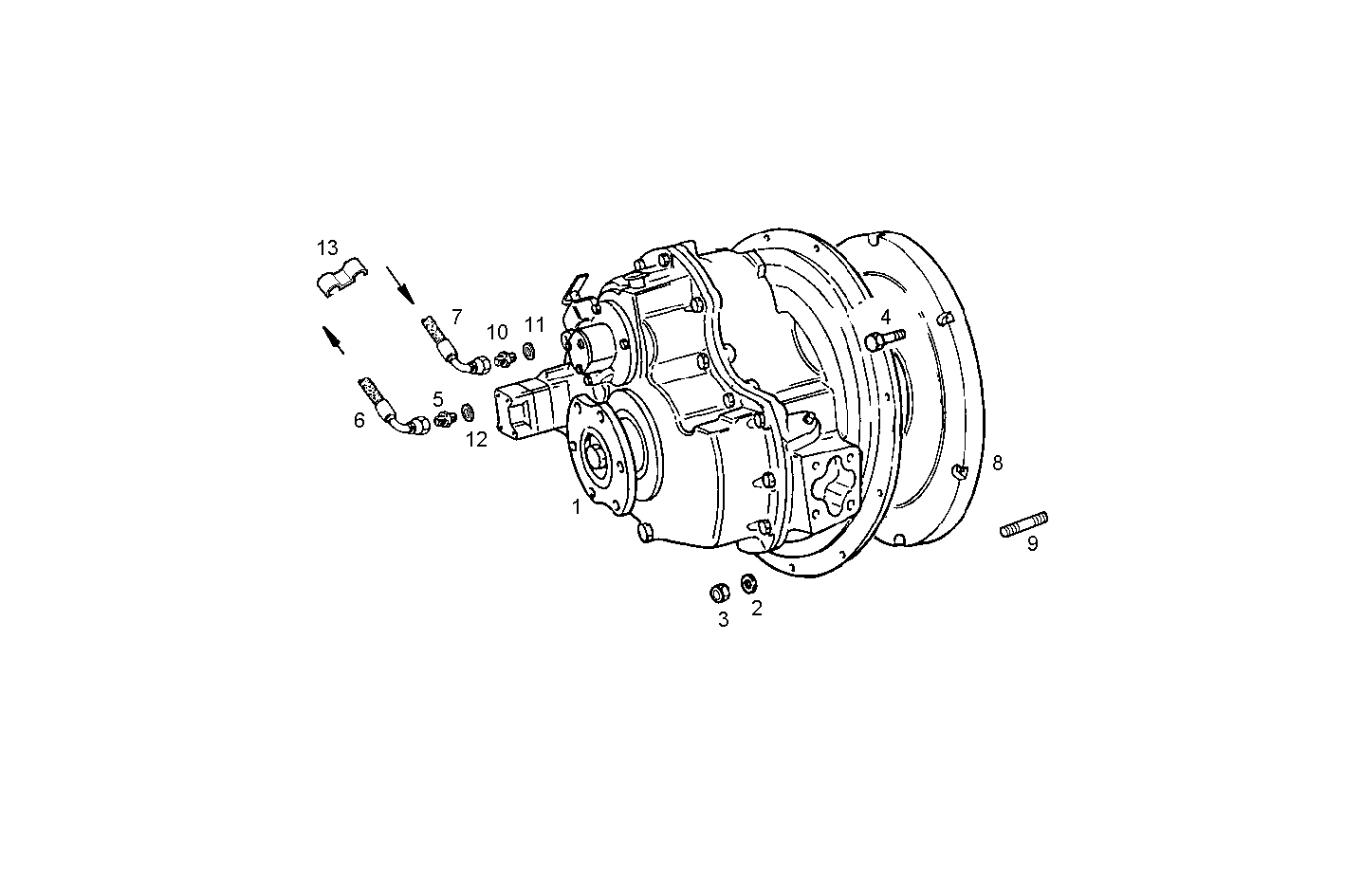

A51108001/1 MARINE GEAR TWIN DISC MG 5075 A
| Item | Part number | Description |
|---|---|---|
| 1 | 8032138 | MARINE GEAR |
| 2 | 17090174 | SPRING WASHER Ø10X20 MM |
| 3 | 17038121 | HEXAGON NUT M10 |
| 4 | 17458134 | SCREW M12X1,75X25 MM |
| 5 | 4935465 | PIPE SOCKET |
| 6 | 8031908 | OIL HOSE |
| 7 | 8100965 | OIL HOSE |
| 8 | 8032140 | FLEXIBLE COUPLING |
| 9 | 17368624 | STUD M10X1,5X25 MM |
| 10 | 8011383 | PIPE SOCKET |
| 11 | 4858610 | WASHER Ø18X24 MM SP=1,5 MM |
| 12 | 11271460 | GASKET Ø21X26X1,5 MM |
| 13 | 8032246 | SPRING CLAMP |
