C78ENTM50.10

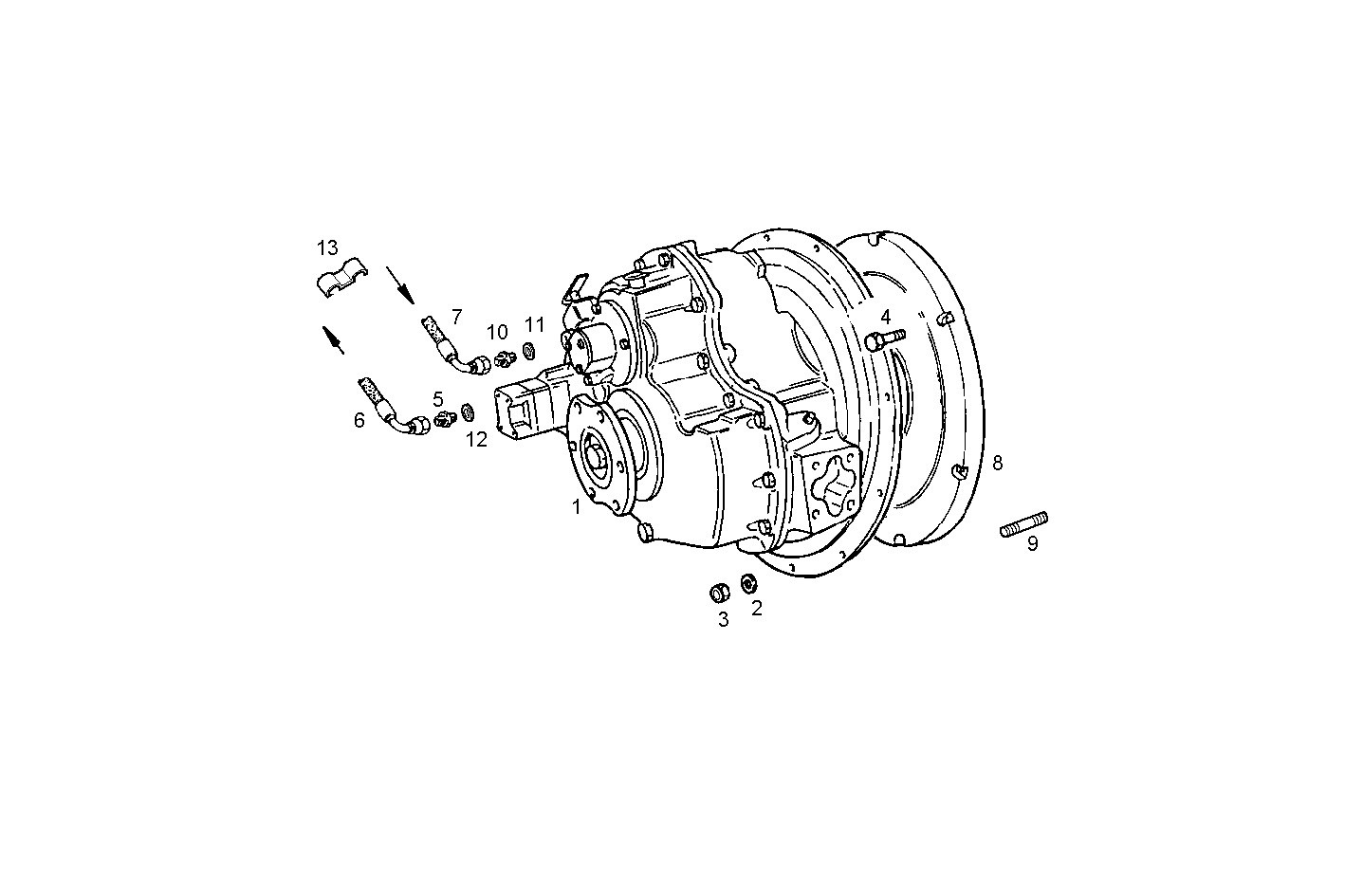

A51108002/1 MARINE GEAR TWIN DISC MG 5075 A

Iveco/FPT MARINE GEAR TWIN DISC MG 5075 A

Item Part number Description
1 8032139 MARINE GEAR
2 17090174 SPRING WASHER Ø10X20 MM
3 17038121 HEXAGON NUT M10
4 17458134 SCREW M12X1,75X25 MM
5 4935465 PIPE SOCKET
6 8031908 OIL HOSE
7 8100965 OIL HOSE
8 8032140 FLEXIBLE COUPLING
9 17368624 STUD M10X1,5X25 MM
10 8011383 PIPE SOCKET
11 4858610 WASHER Ø18X24 MM SP=1,5 MM
12 11271460 GASKET Ø21X26X1,5 MM
13 8032246 SPRING CLAMP
