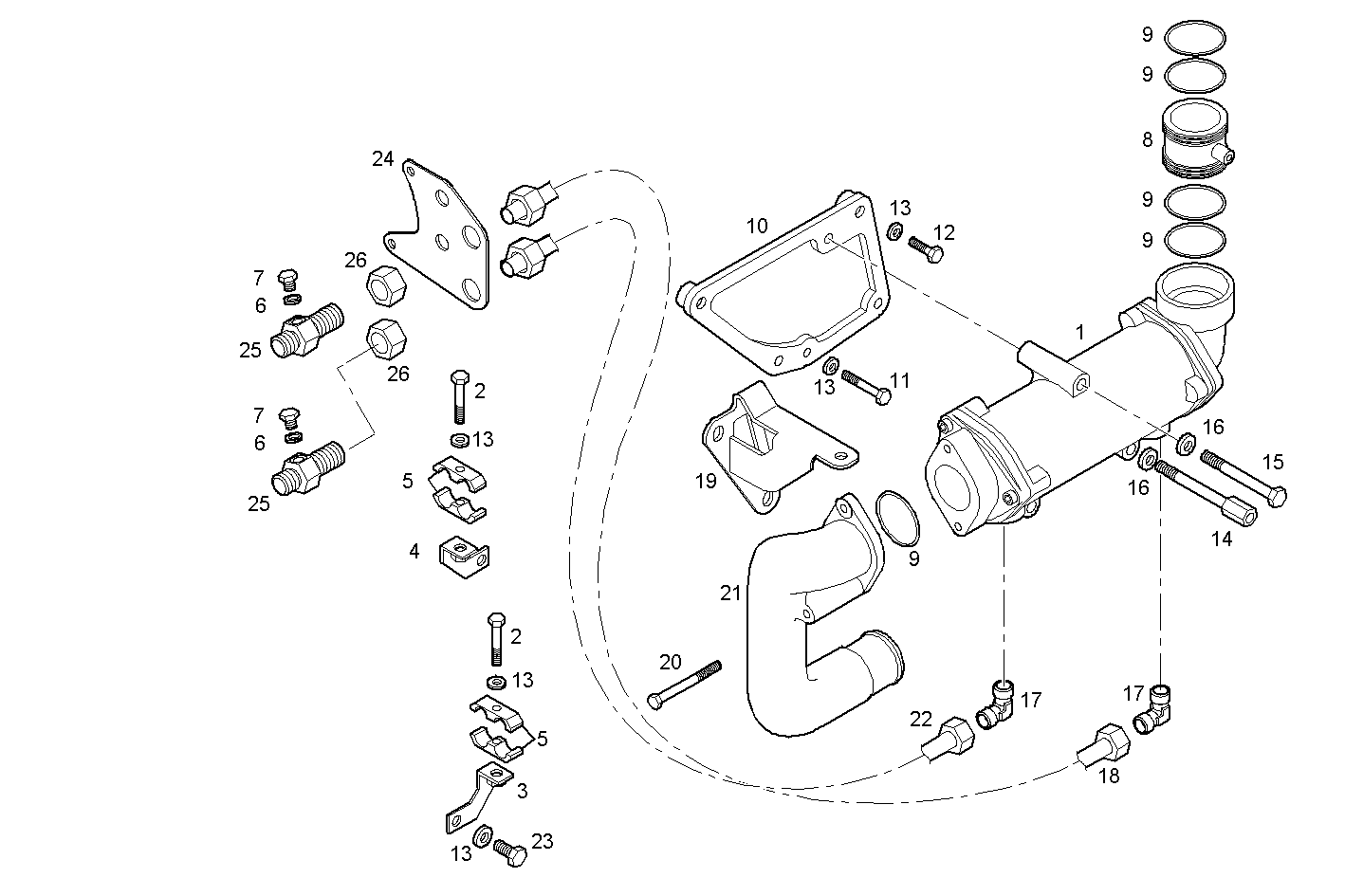

Item |
Part number |
Description |
1 |
8029435 |
OIL/WATER HEAT EXCHANGER ASSY |
2 |
16605924 |
SCREW M8X40 MM |
3 |
8032187 |
RETAINER |
4 |
8033495 |
RETAINER |
5 |
8010505 |
CLAMP Ø16 MM |
6 |
4858606 |
GASKET Ø10X14X1 MM |
7 |
11903140 |
PLUG M10X1,25 |
8 |
8029811 |
SPACING BAR |
9 |
17289981 |
O-RING Ø53,57X3,53 MM |
10 |
8030394 |
RETAINER |
11 |
16606024 |
SCREW M8X45 MM |
12 |
16605624 |
HEXAGON BOLT M8X25 MM (8.8) |
13 |
17089474 |
SPRING WASHER Ø8X16 MM SP=1,4 MM |
14 |
8030473 |
SCREW |
15 |
16608724 |
HEXAGON BOLT M10X90 MM |
16 |
17090174 |
SPRING WASHER Ø10X20 MM |
17 |
8113790 |
PIPE SOCKET [up to 08-94] |
18 |
8032362 |
DELIVERY LINE |
19 |
8029421 |
RETAINER |
20 |
16606624 |
HEXAGON BOLT M8X80 MM |
21 |
8032259 |
PIPE |
22 |
8032363 |
OIL LINE |
23 |
16607424 |
SCREW M10X16 |
24 |
8032349 |
RETAINER |
25 |
8032220 |
PIPE SOCKET |
26 |
16509011 |
NUT M22X1,5X7 MM |
