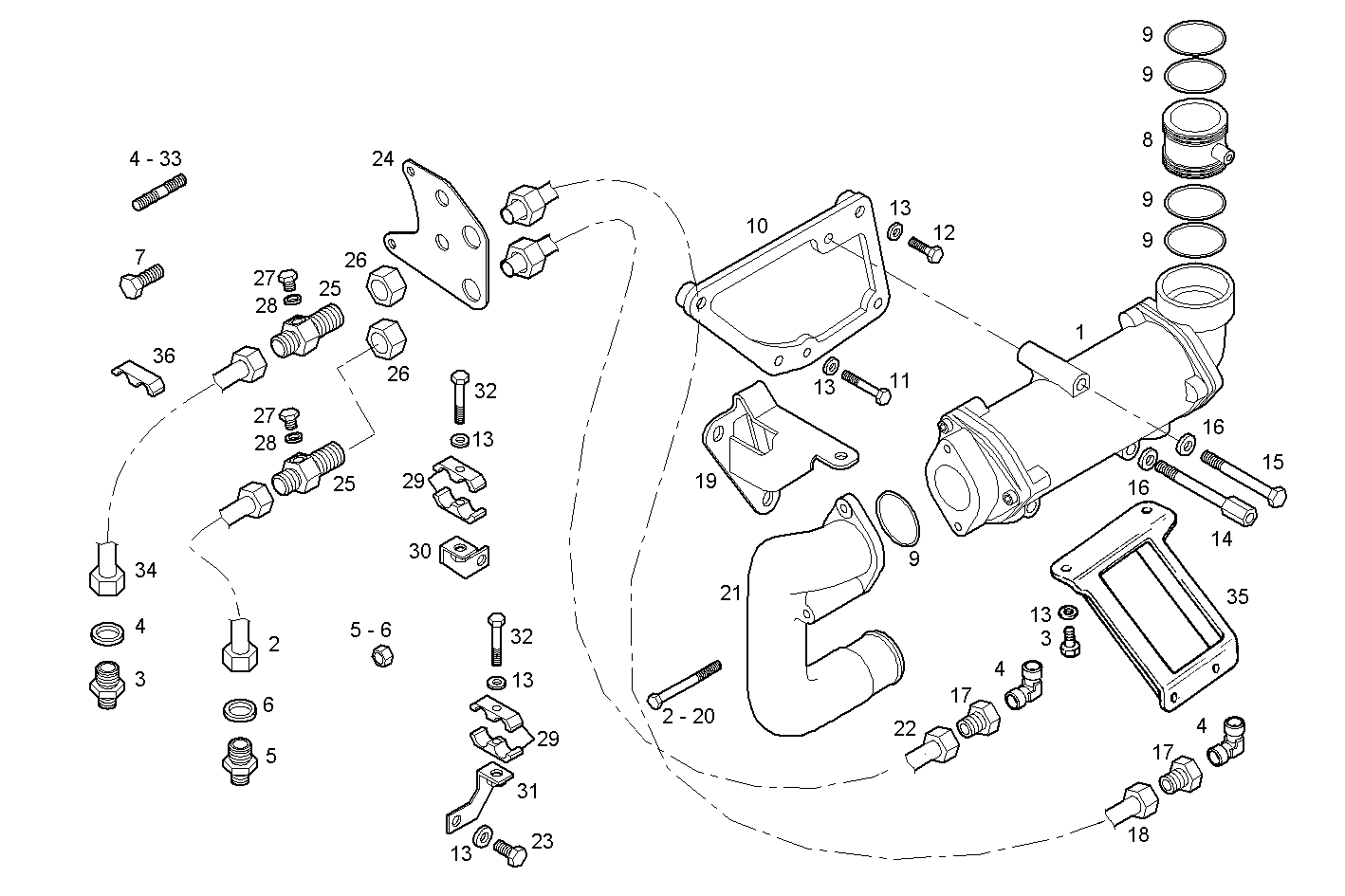

| Item |
Part number |
Description |
|
1 |
8029435 |
OIL/WATER HEAT EXCHANGER ASSY |
|
2 |
16606670 |
HEXAGON BOLT |
|
3 |
16605670 |
SCREW M8X25 MM |
|
4 |
8034521 |
SWIVEL COUPLING |
|
5 |
17038121 |
HEXAGON NUT M10 |
|
6 |
16508811 |
NUT M16X1,5 |
|
7 |
17458134 |
SCREW M12X1,75X25 MM |
|
8 |
8029811 |
SPACING BAR |
|
9 |
17289981 |
O-RING Ø53,57X3,53 MM |
|
10 |
8030394 |
RETAINER |
|
11 |
16605824 |
HEXAGON BOLT M8X35 MM |
|
12 |
16605524 |
HEXAGON BOLT M8X20 MM |
|
13 |
17089474 |
SPRING WASHER Ø8X16 MM SP=1,4 MM |
|
14 |
8030473 |
SCREW |
|
15 |
16608724 |
HEXAGON BOLT M10X90 MM |
|
16 |
17090174 |
SPRING WASHER Ø10X20 MM |
|
17 |
8011138 |
PIPE SOCKET 1/2''/M16X1,5 |
|
18 |
8032362 |
DELIVERY LINE |
|
19 |
8029421 |
RETAINER |
|
20 |
16607424 |
SCREW M10X16 |
|
21 |
8032259 |
PIPE |
|
22 |
8032363 |
OIL LINE |
|
23 |
16607524 |
HEXAGON BOLT M10X1,5X20 MM (8.8) |
|
24 |
8032349 |
RETAINER |
|
25 |
8032220 |
PIPE SOCKET |
|
26 |
16509011 |
NUT M22X1,5X7 MM |
|
27 |
11903140 |
PLUG M10X1,25 |
|
28 |
99489016 |
SEAL GASKET Ø10X17 MM SP =1,5 |
|
29 |
8010505 |
CLAMP Ø16 MM |
|
30 |
8033495 |
RETAINER |
|
31 |
8032187 |
RETAINER |
|
32 |
16605924 |
SCREW M8X40 MM |
|
33 |
17368624 |
STUD M10X1,5X25 MM |
|
34 |
17368224 |
STUD M10X40 MM |
|
35 |
8029420 |
RETAINER |
|
36 |
8032246 |
SPRING CLAMP |
