C78ENTM50.11

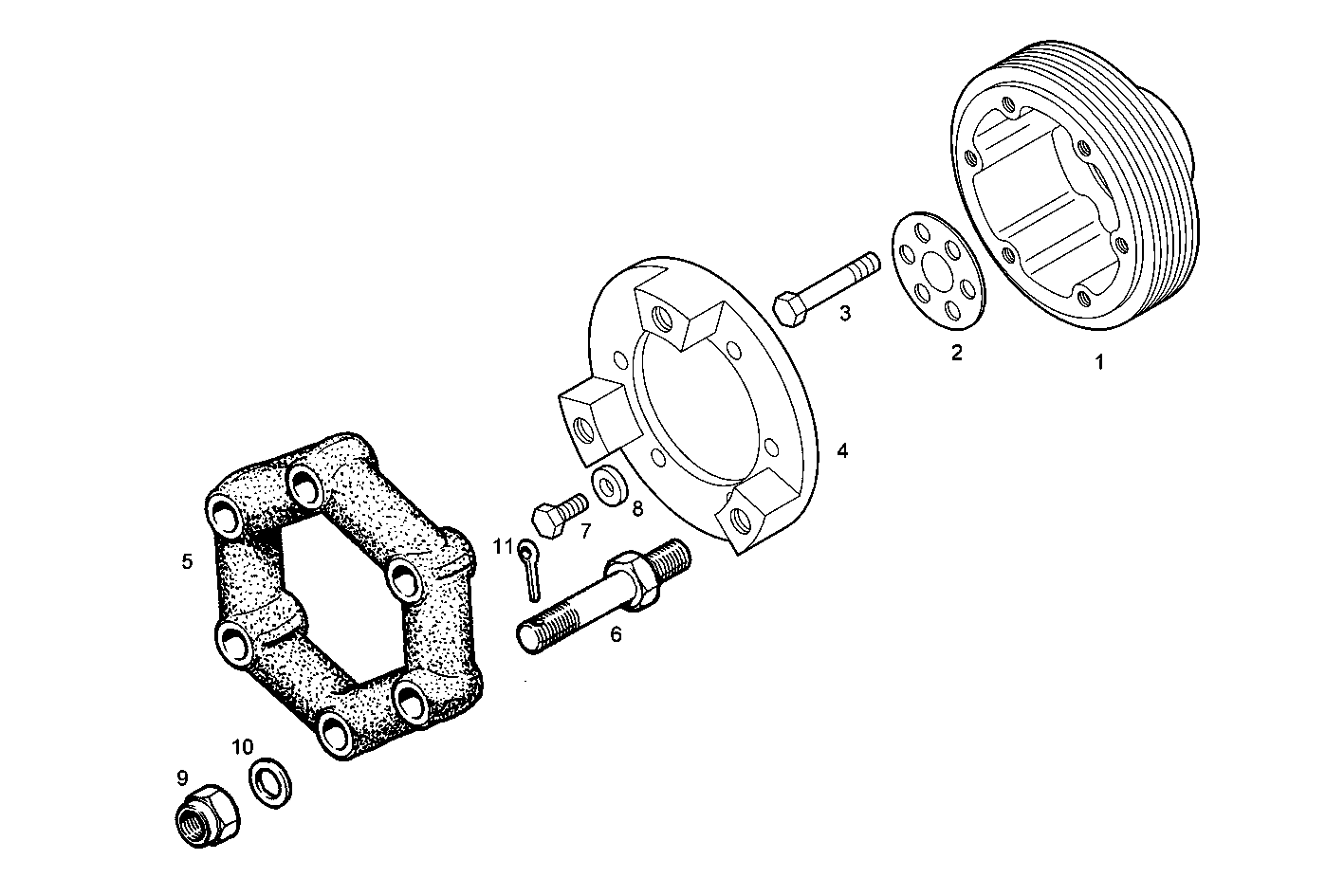

A26070501 GROOVES ADDITIONAL PULLEY

Iveco/FPT GROOVES ADDITIONAL PULLEY

Item Part number Description
1 8031353 PULLEY
2 8031794 SPACING BAR
3 16681234 SCREW M14X80 MM
4 8031354 FLANGE
5 4928505 FLEXPLATE
6 4932513 STUD
7 16629834 SCREW
8 17091074 WASHER Ø12X24X2,8 MM
9 17068221 NUT M20X1,5
10 17096004 WASHER Ø20X37 MM
11 16858701 SPLIT PIN Ø4 MM
