C78ENTM50.11

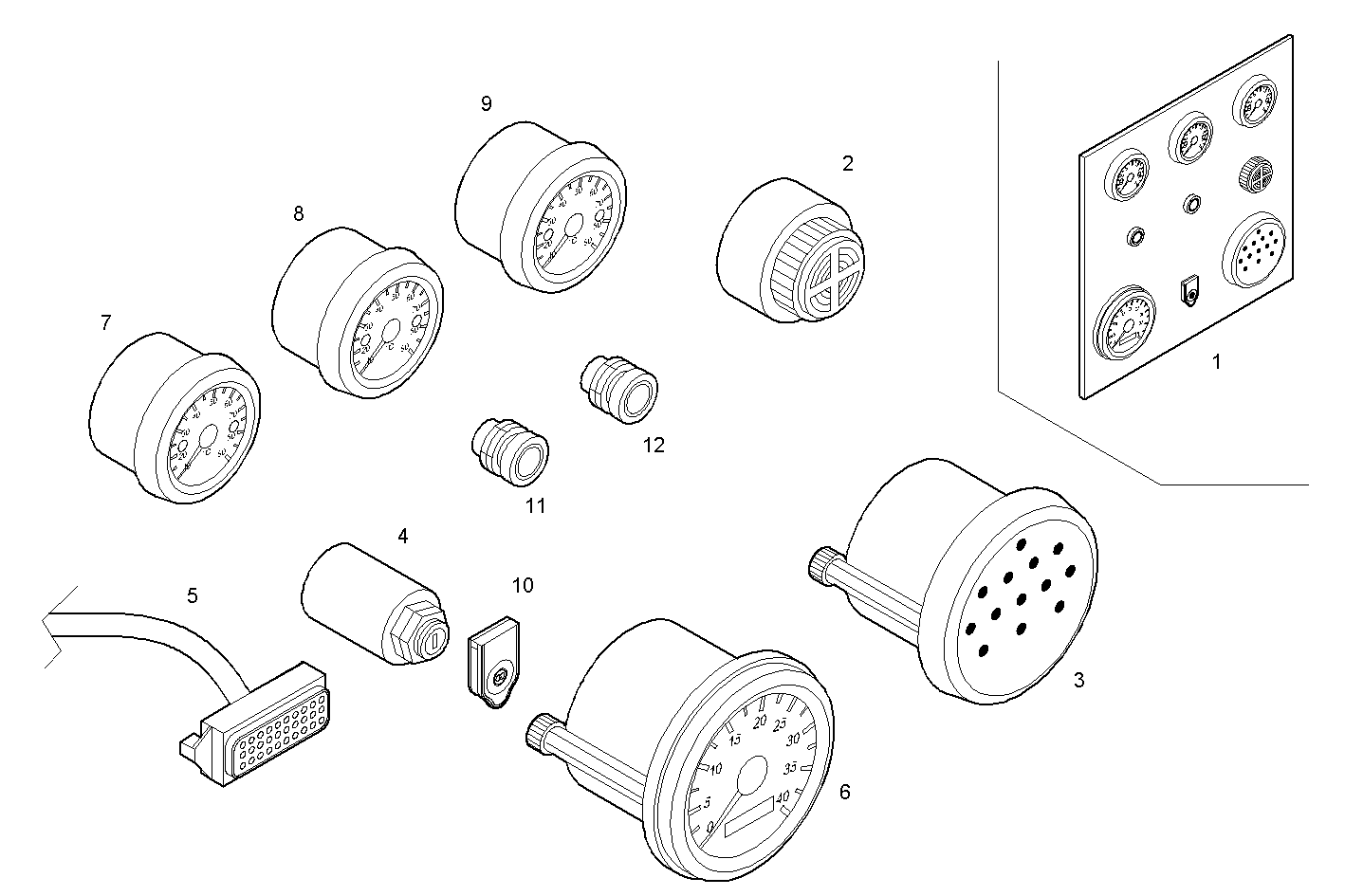

A38780504 ELECTRIC INSTRUMENTS PANEL - 24V analog. + lead ext. 3 mt.
| Item | Part number | Description |
|---|---|---|
| 1 | 8036210 | CONTROL PANEL ASSY |
| 2 | 8035166 | ACOUSTIC HORN |
| 3 | 8034892 | WARNING LIGHT |
| 4 | 8035169 | SWITCH |
| 5 | 8035693 | WIRE/CABLE |
| 6 | 8036144 | REVOLUTION COUNTER |
| 7 | 8036174 | VOLTMETER |
| 8 | 8036175 | THERMOMETER |
| 9 | 8036176 | PRESSURE GAUGE |
| 10 | 8035172 | COVER |
| 11 | 8036409 | PUSH BUTTON BLACK COL. |
| 12 | 8035712 | PUSH BUTTON |
