C78ENTM50.11

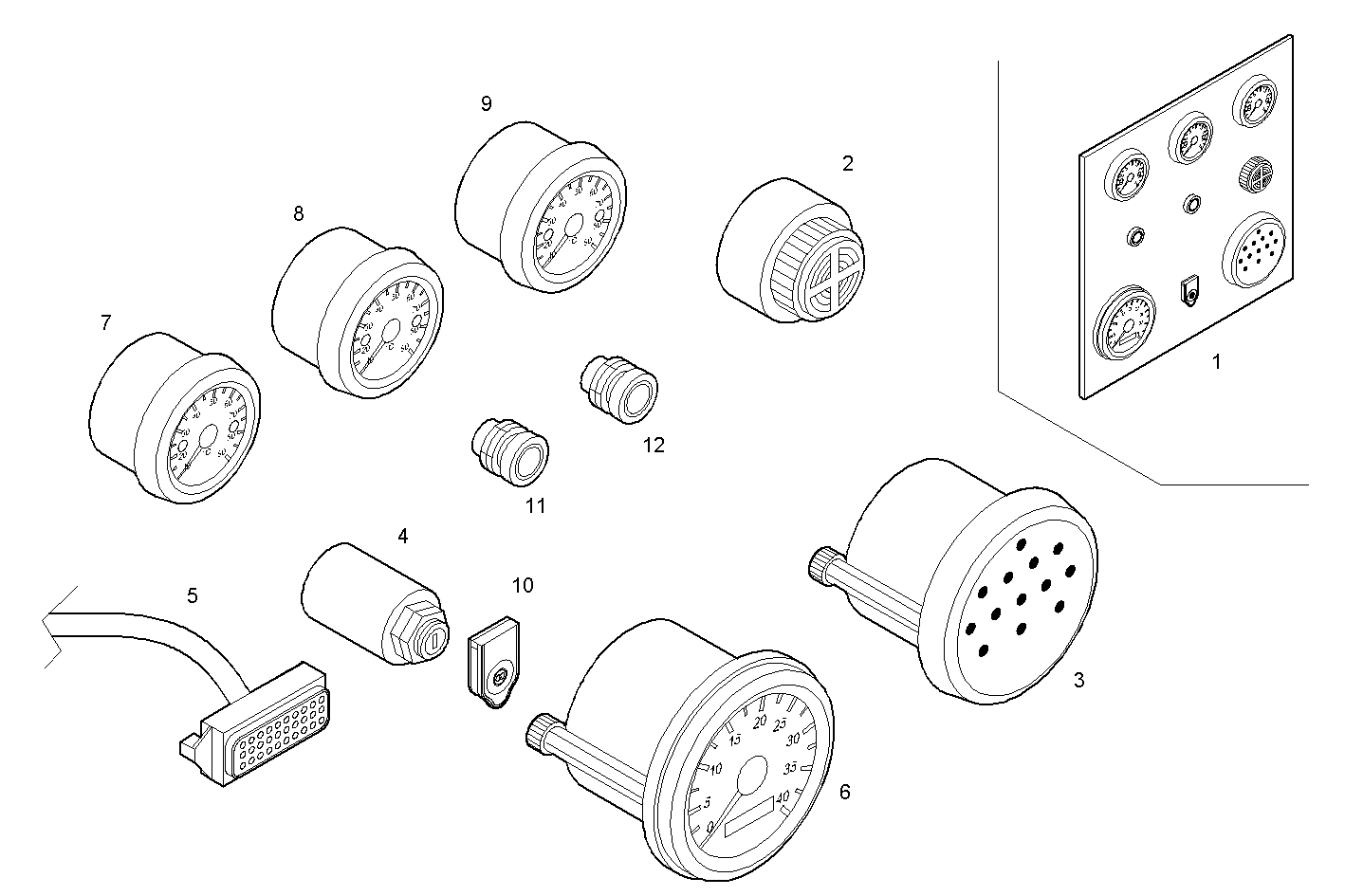

A38780506 ELECTRIC INSTRUMENTS PANEL - 24V analog. + lead ext. 7 mt.

Iveco/FPT ELECTRIC INSTRUMENTS PANEL

Item Part number Description
1 8036210 CONTROL PANEL ASSY
2 8035166 ACOUSTIC HORN
3 8034892 WARNING LIGHT
4 8035169 SWITCH
5 8035695 WIRE/CABLE
6 8036144 REVOLUTION COUNTER
7 8036174 VOLTMETER
8 8036175 THERMOMETER
9 8036176 PRESSURE GAUGE
10 8035172 COVER
11 8036409 PUSH BUTTON BLACK COL.
12 8035712 PUSH BUTTON
