C78ENTM50.11

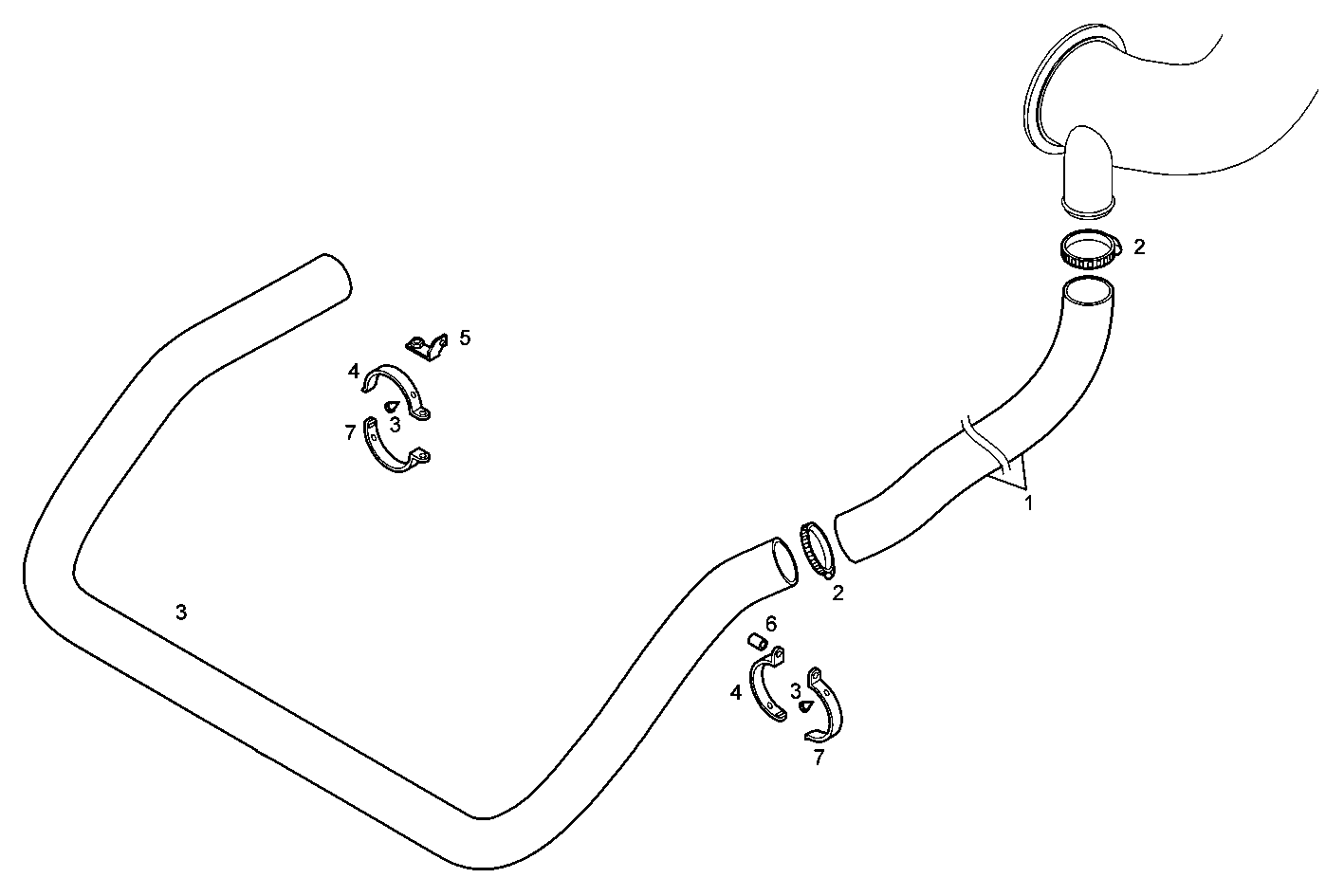

A40050503/02 GAS-WATER MIXER WITH STERN OUTLET
| Item | Part number | Description |
|---|---|---|
| 1 | 8019908 | HOSE |
| 2 | 17764993 | CLIP Ø50/70 MM |
| 3 | 1366290 | RUBBER LUG |
| 4 | 8113296 | CLAMP Ø50 MM |
| 5 | 8033807 | FASTENING BRACKET |
| 6 | 17816714 | SPACING BAR |
| 7 | 8113295 | CLAMP Ø50 MM |
