C78ENTM50.11A001

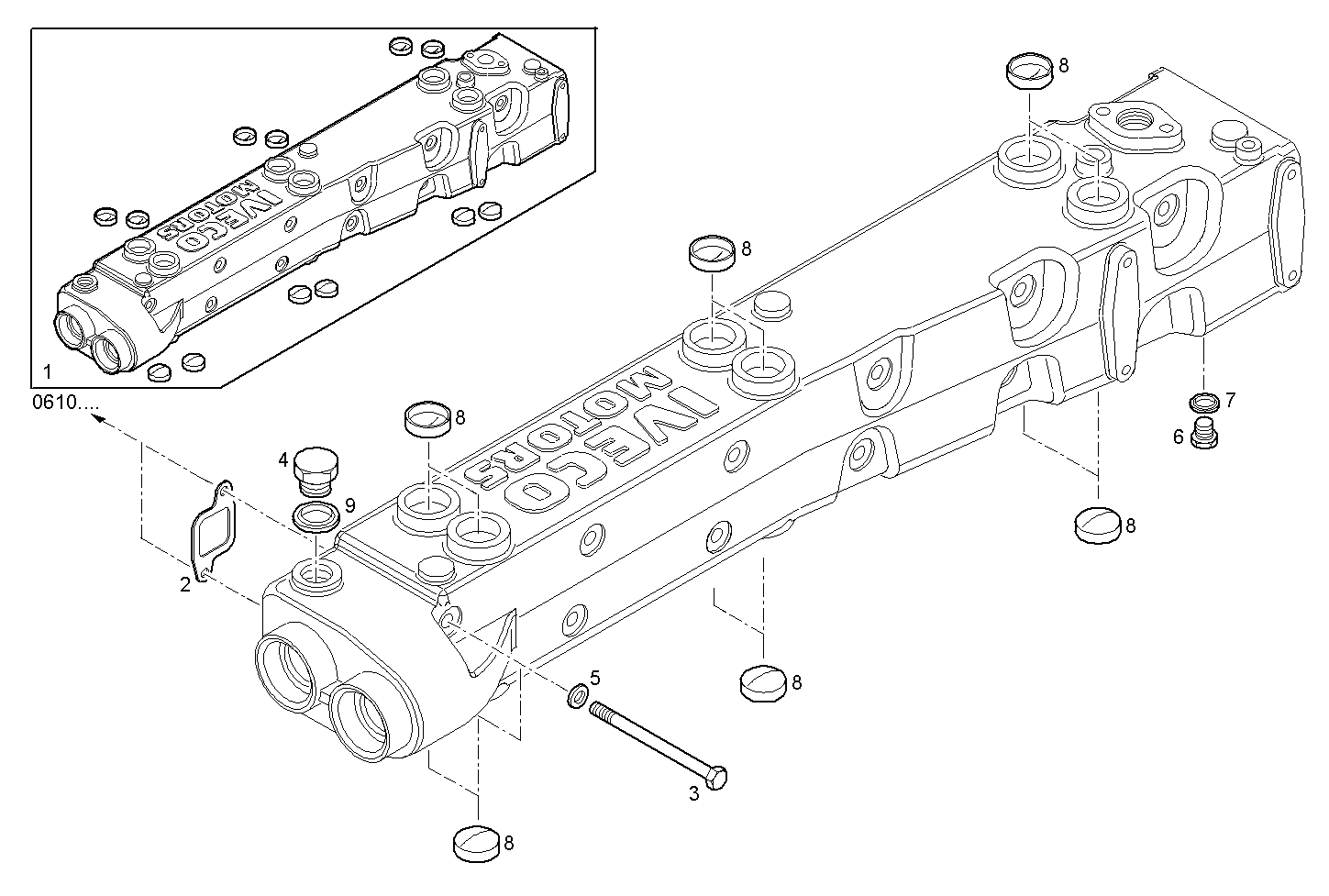

0780.027 EXHAUST MANIFOLD [FROM 01/12/04] [FROM 01/12/04]
| Item | Part number | Description |
|---|---|---|
| 1 | 8038530 | COOLED EXHAUST MANIF. |
| 2 | 8030393 | EXH. MANIFOLD GKT |
| 3 | 16629234 | SCREW M10X1,5X150 |
| 4 | 16992611 | THREADED PLUG M22X1,5 |
| 5 | 17090274 | WASHER Ø10X20 MM |
| 6 | 16992340 | THREADED PLUG M14X1,5 |
| 7 | 99489018 | SEAL GASKET Ø14X22 MM SP=1,5 MM |
| 8 | 16990870 | LOCK PLUG Ø28 MM |
| 9 | 17750985 | WASHER Ø22X28X1,5 MM |
