C78ENTM50.11A001

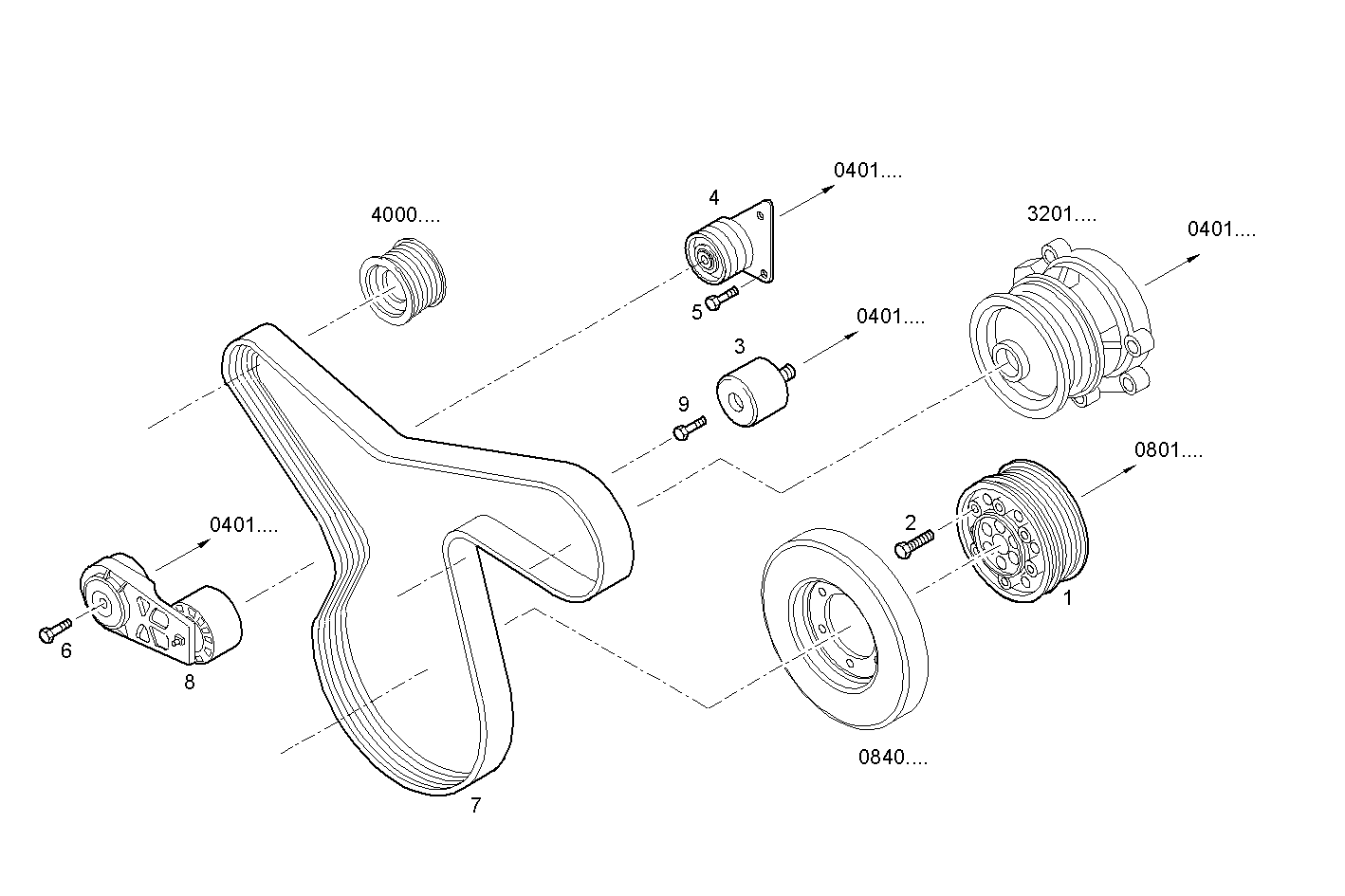

0843.042 DRIVING PULLEY [FROM # 54524] [FROM # 54524]
| Item | Part number | Description |
|---|---|---|
| 1 | 99446792 | PULLEY |
| 2 | 500354585 | SCREW |
| 3 | 504006261 | BELT TENSIONER ASSY |
| 4 | 504080798 | BELT TENSIONER |
| 5 | 16600224 | HEXAGON BOLT M8X1,25X18 MM |
| 6 | 16676834 | HEXAGON BOLT M10X70 MM |
| 7 | 504079835 | V-BELT |
| 8 | 504046191 | BELT TENSIONER |
| 9 | 16639226 | SCREW M12X1,75X80 MM |
