C78ENTM50.11A001

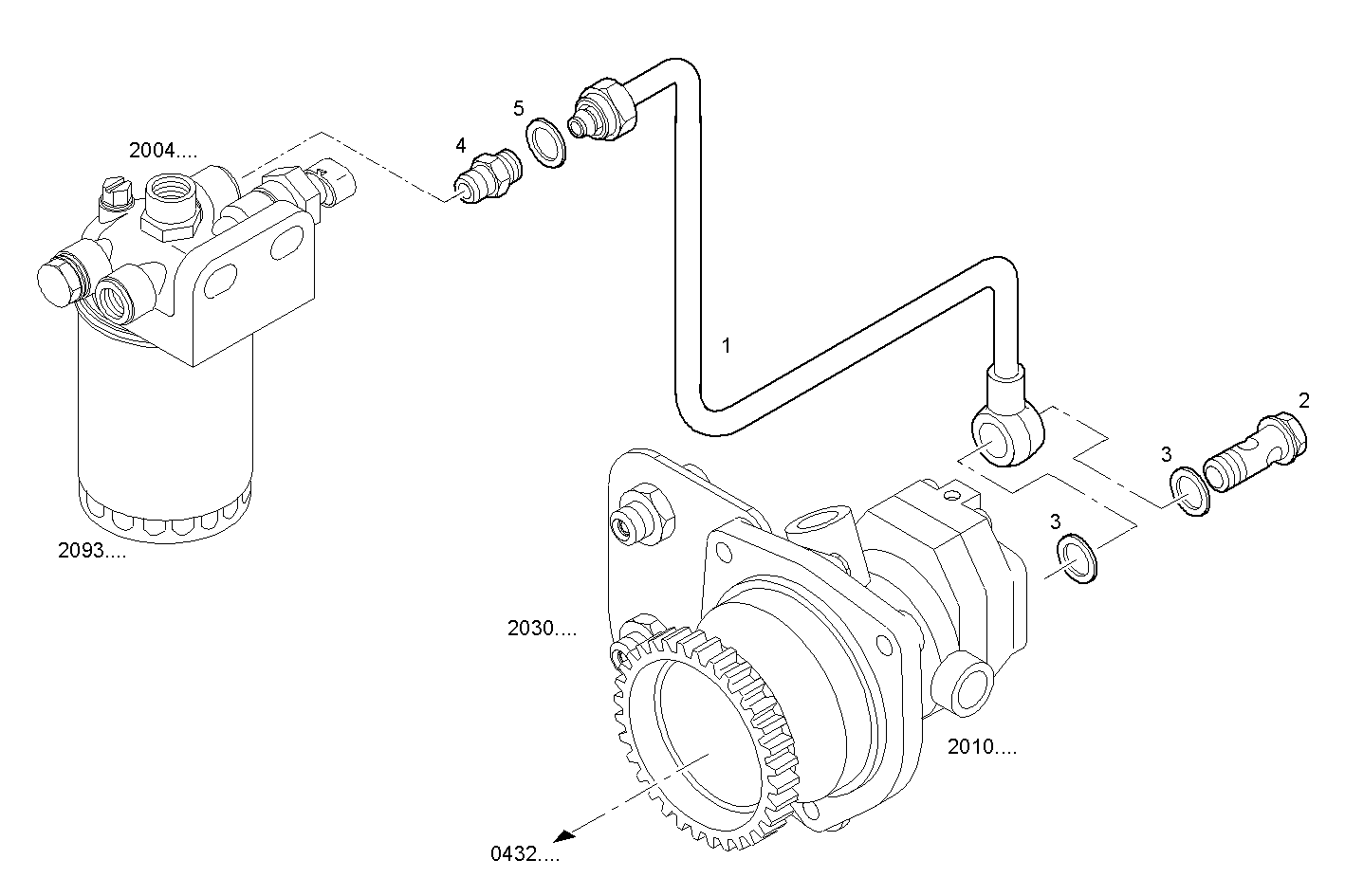

2033.002 FUEL LINES -INLET TO FILTER
| Item | Part number | Description |
|---|---|---|
| 1 | 8030776 | FUEL LINE |
| 2 | 4864084 | BANJO BOLT M16X1,5 |
| 3 | 99489019 | WASHER Ø16X24 MM SP=1,5 MM |
| 4 | 41905554 | PIPE SOCKET M14X1,5 - M16X1,5 |
| 5 | 99489018 | SEAL GASKET Ø14X22 MM SP=1,5 MM |
