C78ENTM50.11A001

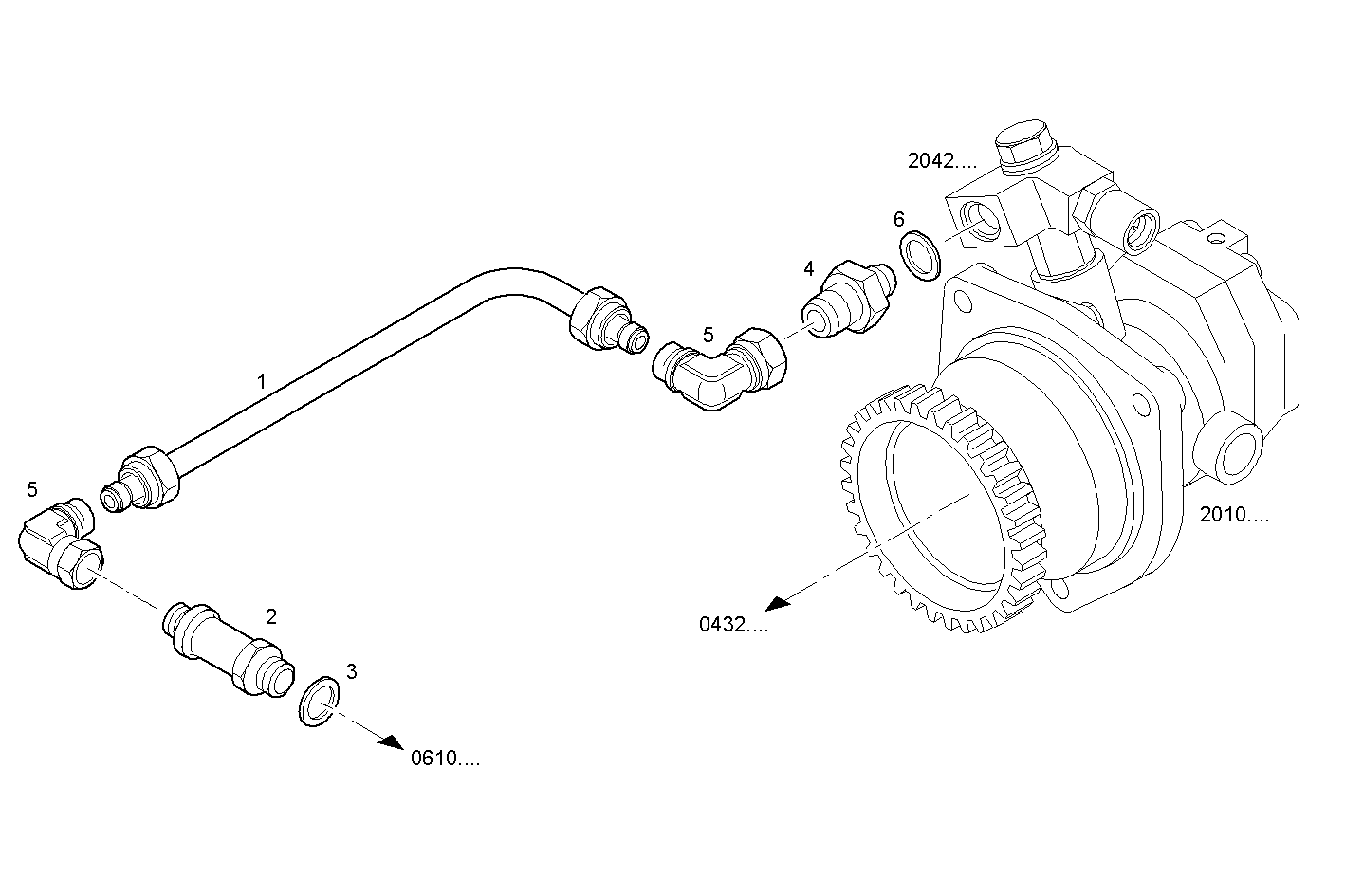

2036.003 FUEL LINES - RETURN TO FUEL PUMP
Item | Part number | Description |
---|---|---|
1 | 8030756 | FUEL LINE |
2 | 99455351 | CONNECTION PIPE M14X1,5 - M18X1,5 |
3 | 99489018 | SEAL GASKET Ø14X22 MM SP=1,5 MM |
4 | 504081274 | THREADED UNION M16X1,5 - M18X1,5 |
5 | 16504114 | ELBOW COUPLING M18X1,5 |
6 | 99489019 | WASHER Ø16X24 MM SP=1,5 MM |
