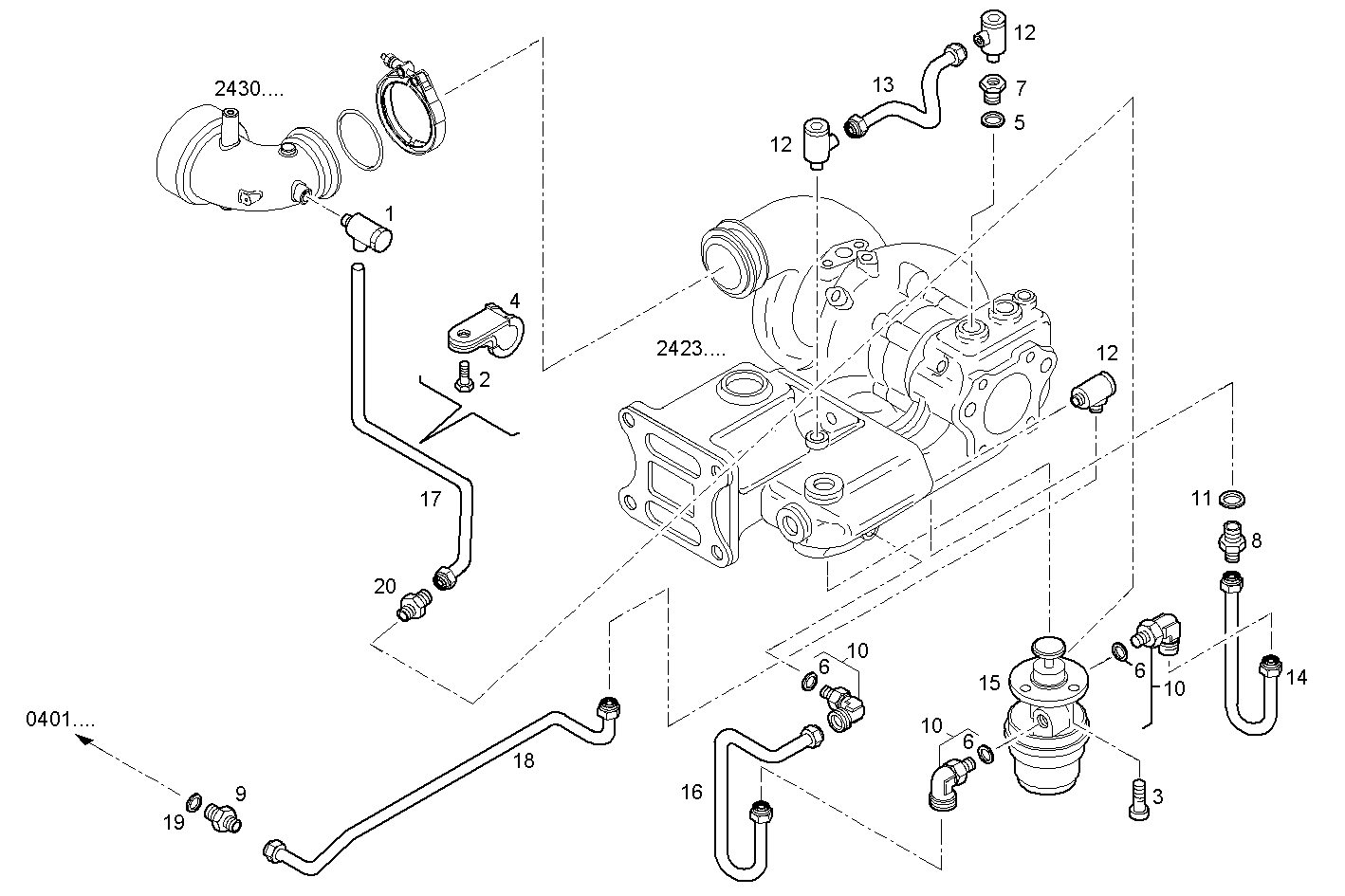

Item |
Part number |
Description |
1 |
8026816 |
SCREW CONNECTOR ASSY M10X1 |
2 |
16603525 |
SCREW M6X12 MM |
3 |
16689134 |
SOCKET-HEAD SCREW M6X16 MM |
4 |
17314590 |
RETAINER Ø6 MM |
5 |
17750985 |
WASHER Ø22X28X1,5 MM |
6 |
4858608 |
SEAL GASKET dia.14x19,5x1,5 |
7 |
4935200 |
PIPE SOCKET M22X1,5/M16X1,5 |
8 |
504081274 |
THREADED UNION M16X1,5 - M18X1,5 |
9 |
16500215 |
THREADED UNION M14X1,5/M16X1,5 |
10 |
8025927 |
ELBOW COUPLING |
11 |
99489019 |
WASHER Ø16X24 MM SP=1,5 MM |
12 |
8030711 |
PIPE SOCKET M18X1,5/M16X1,5 |
13 |
8031333 |
WATER PIPE |
14 |
8031337 |
WATER PIPE |
15 |
8031472 |
VALVE WASTE-GATE - ASSY |
16 |
8032476 |
WATER PIPE |
17 |
8032967 |
WATER PIPE |
18 |
8033221 |
WATER PIPE |
19 |
99489018 |
SEAL GASKET Ø14X22 MM SP=1,5 MM |
20 |
8012465 |
PIPE SOCKET |
