C78ENTM50.11A001

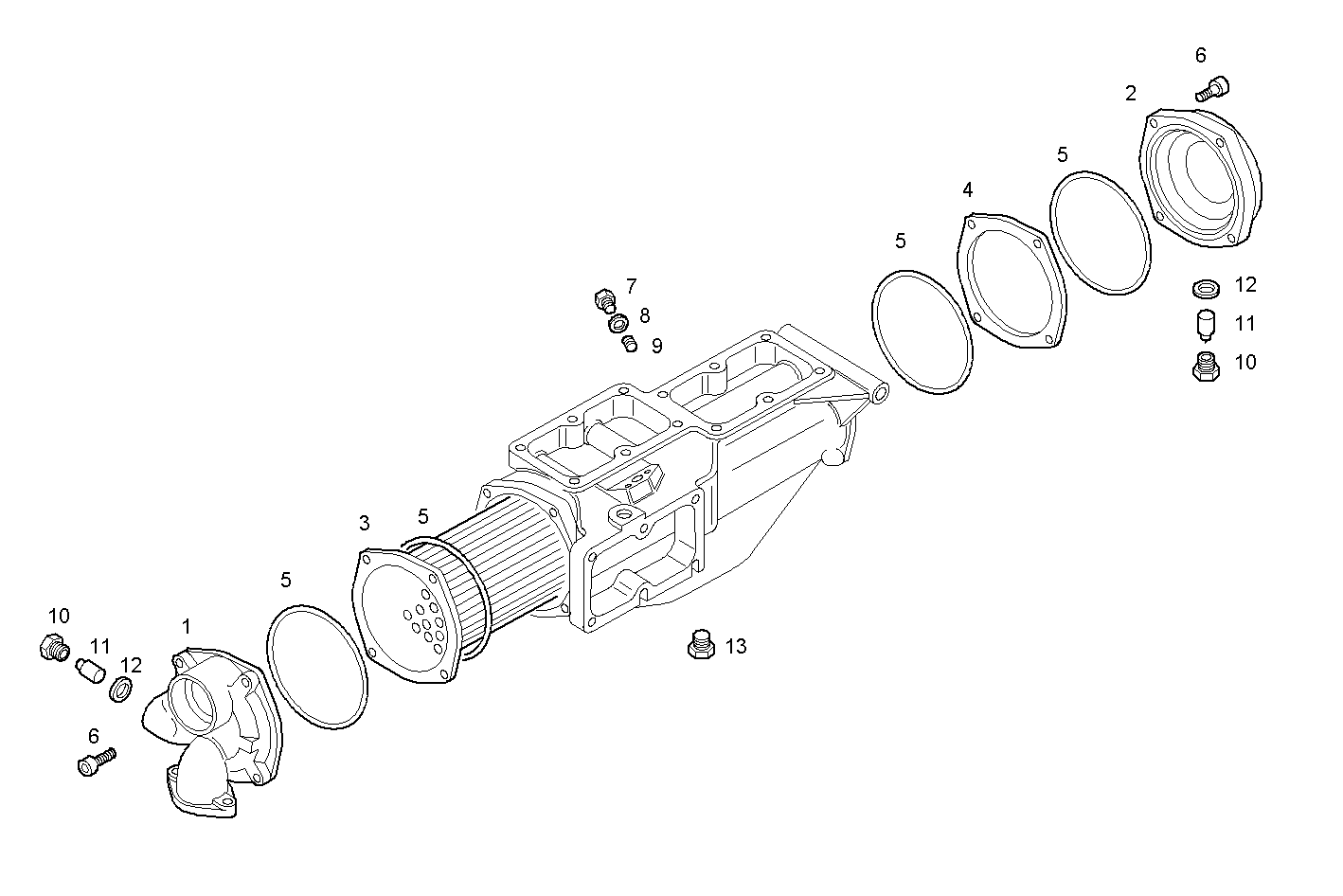

2461.008 AIR - WATER HEAT EXCHANGER (COMPONENTS)
| Item | Part number | Description |
|---|---|---|
| 1 | 8029426 | HEAT EXCHANG.COVER FRONT |
| 2 | 8029427 | HEAT EXCHANG.COVER REAR |
| 3 | 8029425 | TUBE STACK |
| 4 | 8029428 | SPACING BAR |
| 5 | 8030481 | O-RING Ø142,47X3,53 MM |
| 6 | 16690924 | CYLIND-HEAD SCREW M8X40 MM |
| 7 | 8030490 | PLUG M10X1,5 |
| 8 | 99489016 | SEAL GASKET Ø10X17 MM SP =1,5 |
| 9 | 8031509 | SCREW |
| 10 | 8093596 | PLUG |
| 11 | 8093597 | SACRIFICAL ANODE |
| 12 | 99489020 | SEAL GASKET Ø18X26 MM SP=1,5 MM |
| 13 | 16992115 | THREADED PLUG M10X1 |
