C78ENTM50.11A001

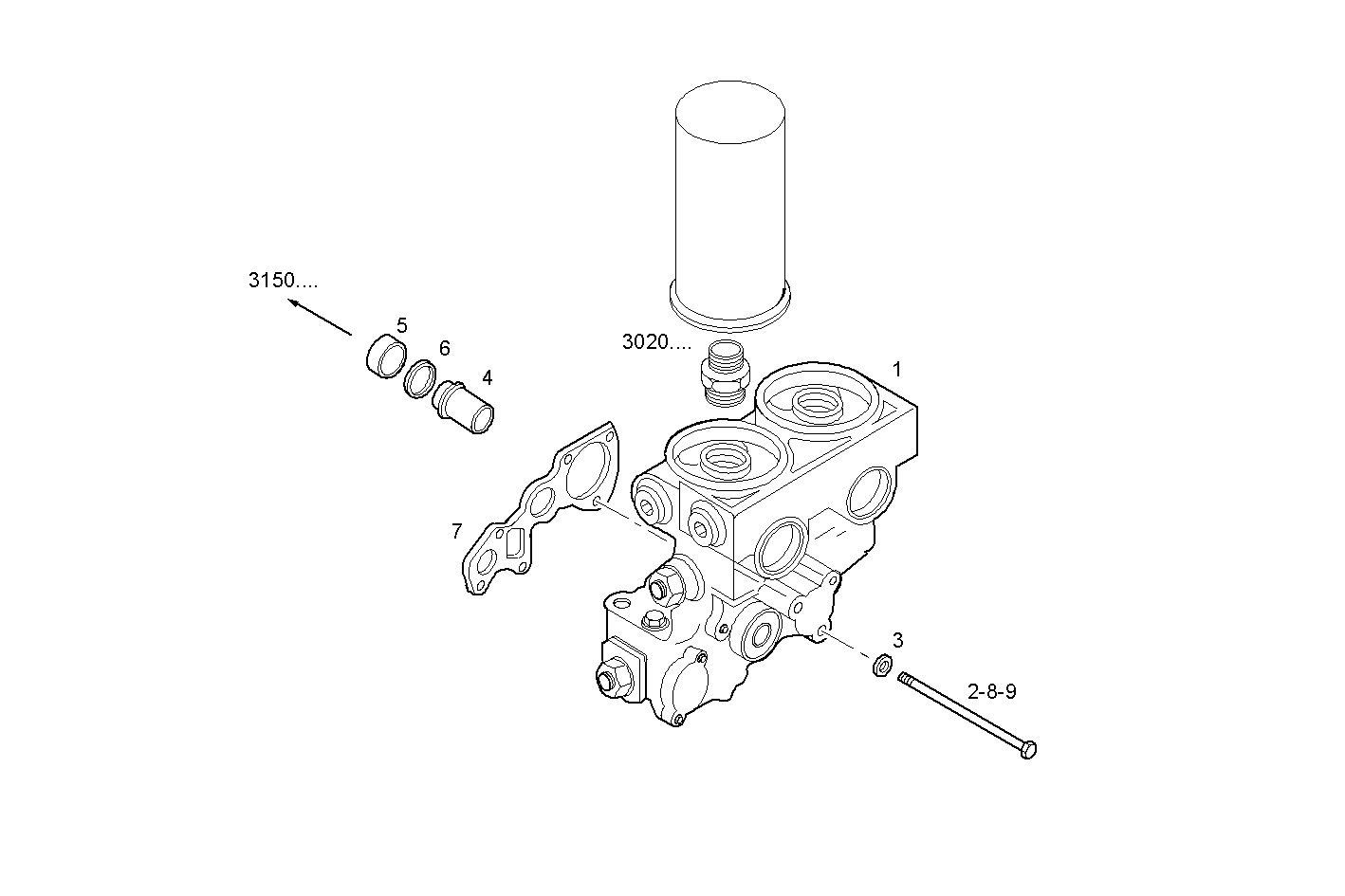

3022.009 HOUSING OIL [FROM 23/02/05] [FROM 23/02/05]
| Item | Part number | Description |
|---|---|---|
| 1 | 8030491 | OIL FILTER SUPPORT ASSY |
| 2 | 16607324 | HEXAGON BOLT M8X1,25X125 |
| 3 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 4 | 504117511 | VALVE |
| 5 | 99433798 | SPACING BAR Ø28 MM |
| 6 | 98494952 | GASKET M35X1,5 |
| 7 | 504013562 | GASKET |
| 8 | 16046221 | HEXAGON BOLT M8X1,25X150 MM |
| 9 | 8030913 | SCREW M8X1,25X200 |
