C78ENTM50.11A001

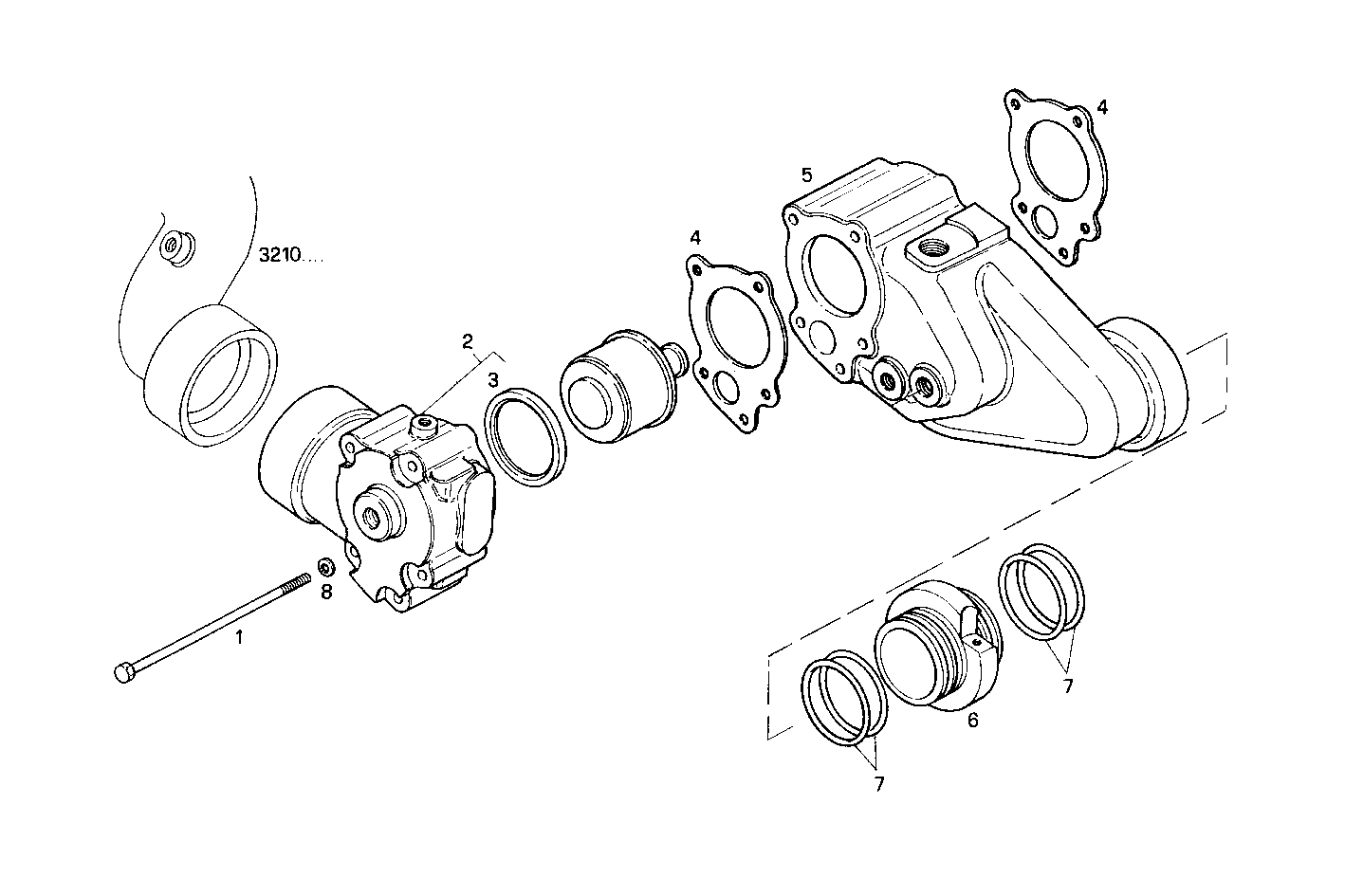

3260.021 TEMPERATURE REGULATOR
Item | Part number | Description |
---|---|---|
1 | 16607124 | HEXAGON BOLT M8X1,25X170 MM |
2 | 8030463 | THERM.BODY COVER ASSY |
3 | 98451661 | WASHER Ø57,7X67,5 MM |
4 | 99443426 | FLAT ENGINE GASKET |
5 | 8029589 | THERMOSTAT BODY |
6 | 8028161 | SPACING BAR |
7 | 17290181 | O-RING Ø59,92 MM SP=3,53 MM |
8 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
