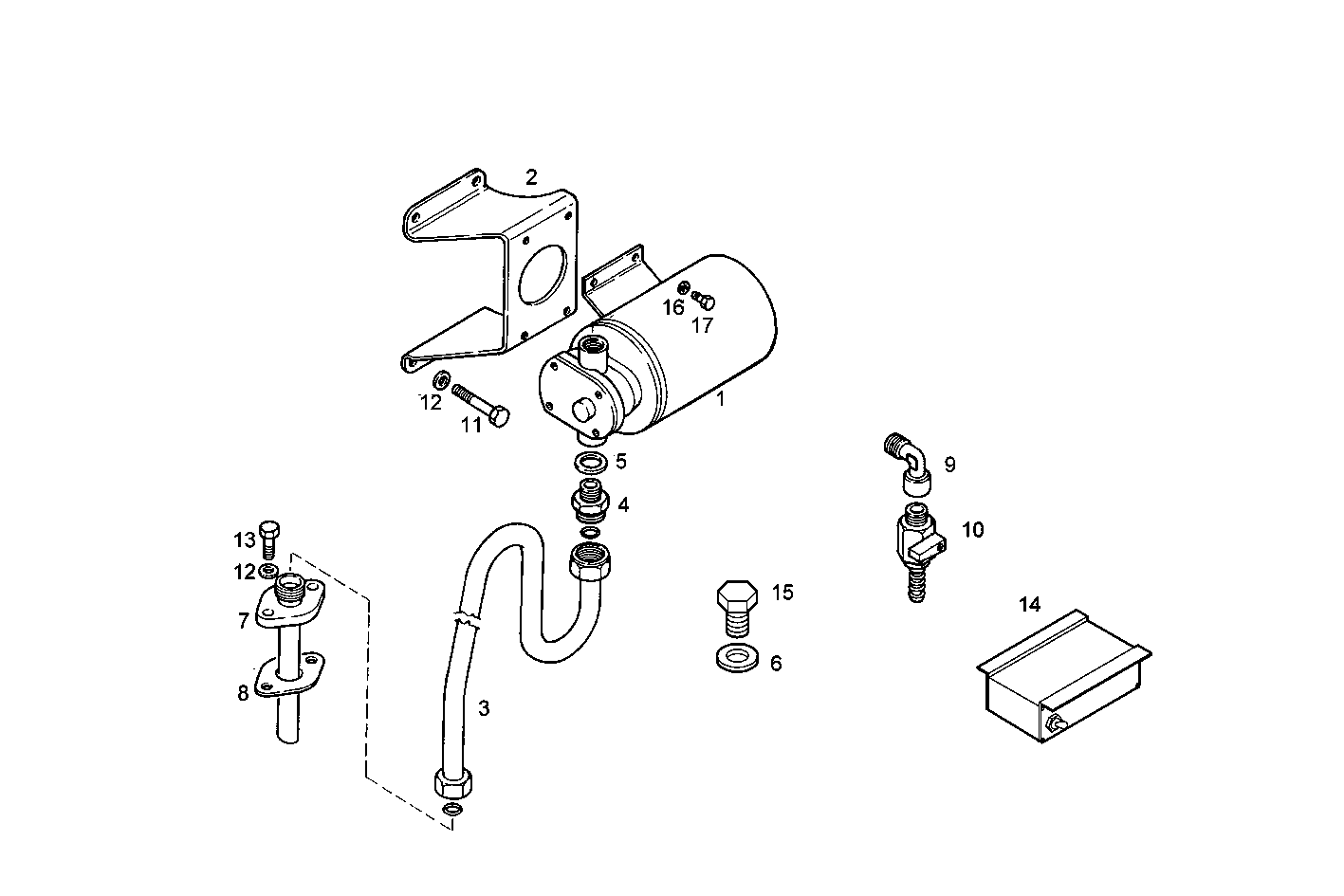

| Item |
Part number |
Description |
|
1 |
8032366 |
OIL DRAIN ELECTRIC PUMP |
|
2 |
8030497 |
RETAINER |
|
3 |
8031859 |
OIL LINE |
|
4 |
8011422 |
PIPE SOCKET Ø3/8''/M22 MM |
|
5 |
11270460 |
GASKET Ø17X21X1,5 MM |
|
6 |
98429281 |
SEAL GASKET Ø24X31 MM SP=1,5 MM |
|
7 |
8036596 |
OIL LINE |
|
8 |
4863361 |
GASKET |
|
9 |
8005303 |
PIPE SOCKET M16X1,5 |
|
10 |
8113932 |
DRAIN COCK |
|
11 |
16586924 |
HEXAGON BOLT M8X50 MM |
|
12 |
17089474 |
SPRING WASHER Ø8X16 MM SP=1,4 MM |
|
13 |
16605524 |
HEXAGON BOLT M8X20 MM |
|
14 |
8034478 |
SWITCH PANEL for oil drain pump |
|
15 |
16994111 |
PLUG M24X1,5 |
|
16 |
17088474 |
WASHER Ø6X12 MM |
|
17 |
16603624 |
HEXAGON BOLT M6X16 MM (8.8) |
