C78ENTM55.12

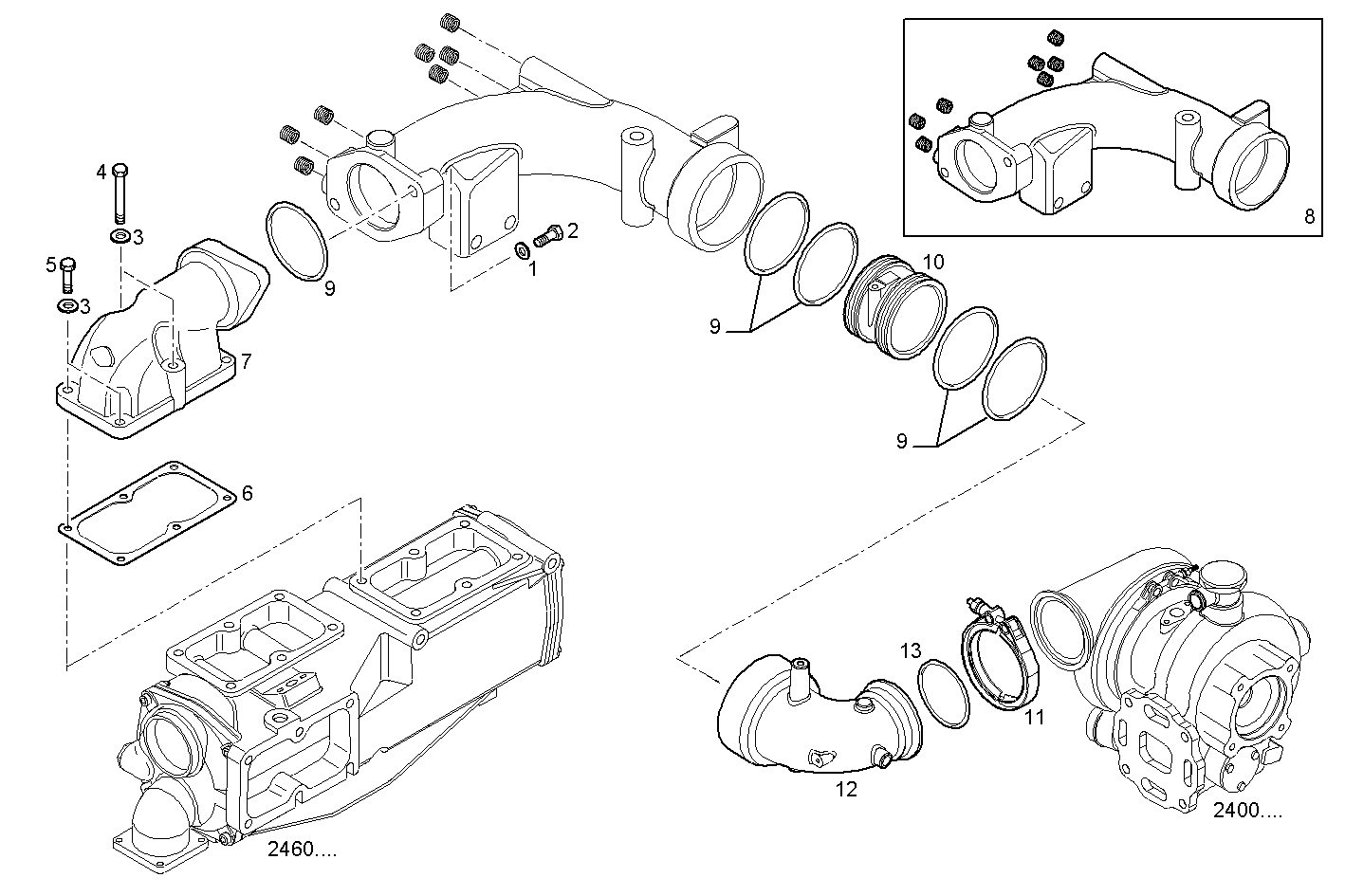

2430.051 EXIT AIR PIPE
| Item | Part number | Description |
|---|---|---|
| 1 | 17090174 | SPRING WASHER Ø10X20 MM |
| 2 | 16608125 | HEXAGON BOLT M10X50 |
| 3 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 4 | 16606324 | HEXAGON BOLT M8X60 MM |
| 5 | 16605625 | HEXAGON BOLT M8X25 |
| 6 | 504026624 | FLAT ENGINE GASKET |
| 7 | 8030540 | AIR HOOD |
| 8 | 8030546 | AIR PIPE/DUCT |
| 9 | 17290581 | O-RING Ø72,63X3,53 MM |
| 10 | 8025307 | WATER PIPE |
| 11 | 500339542 | PIPE CLIP |
| 12 | 8040165 | INTAKE ELBOW |
| 13 | 17285581 | O-RING Ø82,22x2,62 mm |
