C78ENTM55.12

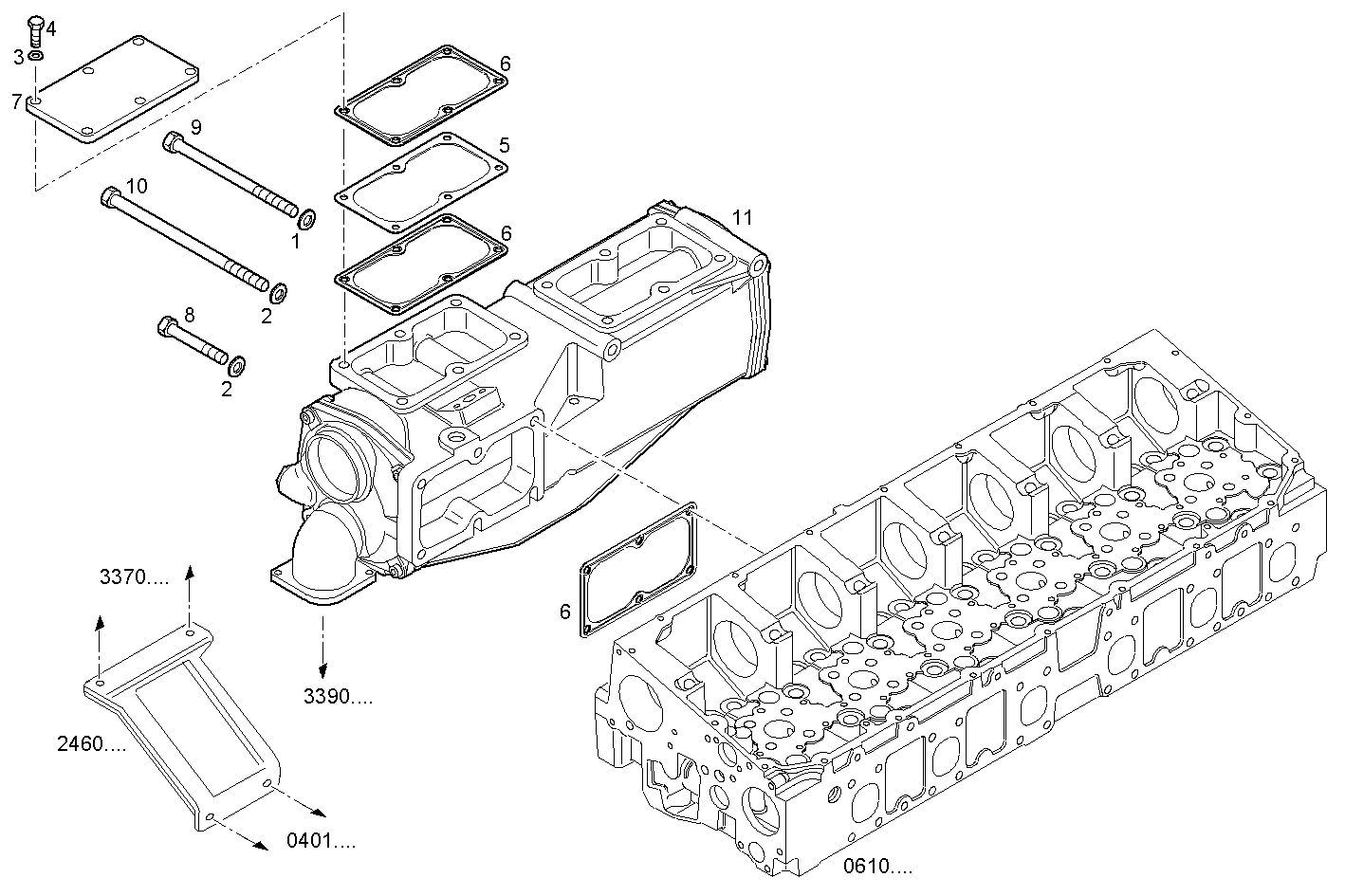

2460.014 AIR - WATER HEAT EXCHANGER
Item | Part number | Description |
---|---|---|
1 | 17091074 | WASHER Ø12X24X2,8 MM |
2 | 17090174 | SPRING WASHER Ø10X20 MM |
3 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
4 | 16605524 | HEXAGON BOLT M8X20 MM |
5 | 8037365 | SPACING BAR |
6 | 504026624 | FLAT ENGINE GASKET |
7 | 8034337 | COVER |
8 | 16607824 | HEXAGON BOLT M10X35 MM (8.8) |
9 | 16611624 | SCREW M12X160 |
10 | 8030482 | SCREW M10X210 |
11 | 8041377 | AIR/WATER HEAT EXCHANGER ASSY |
