C78ENTM55.12

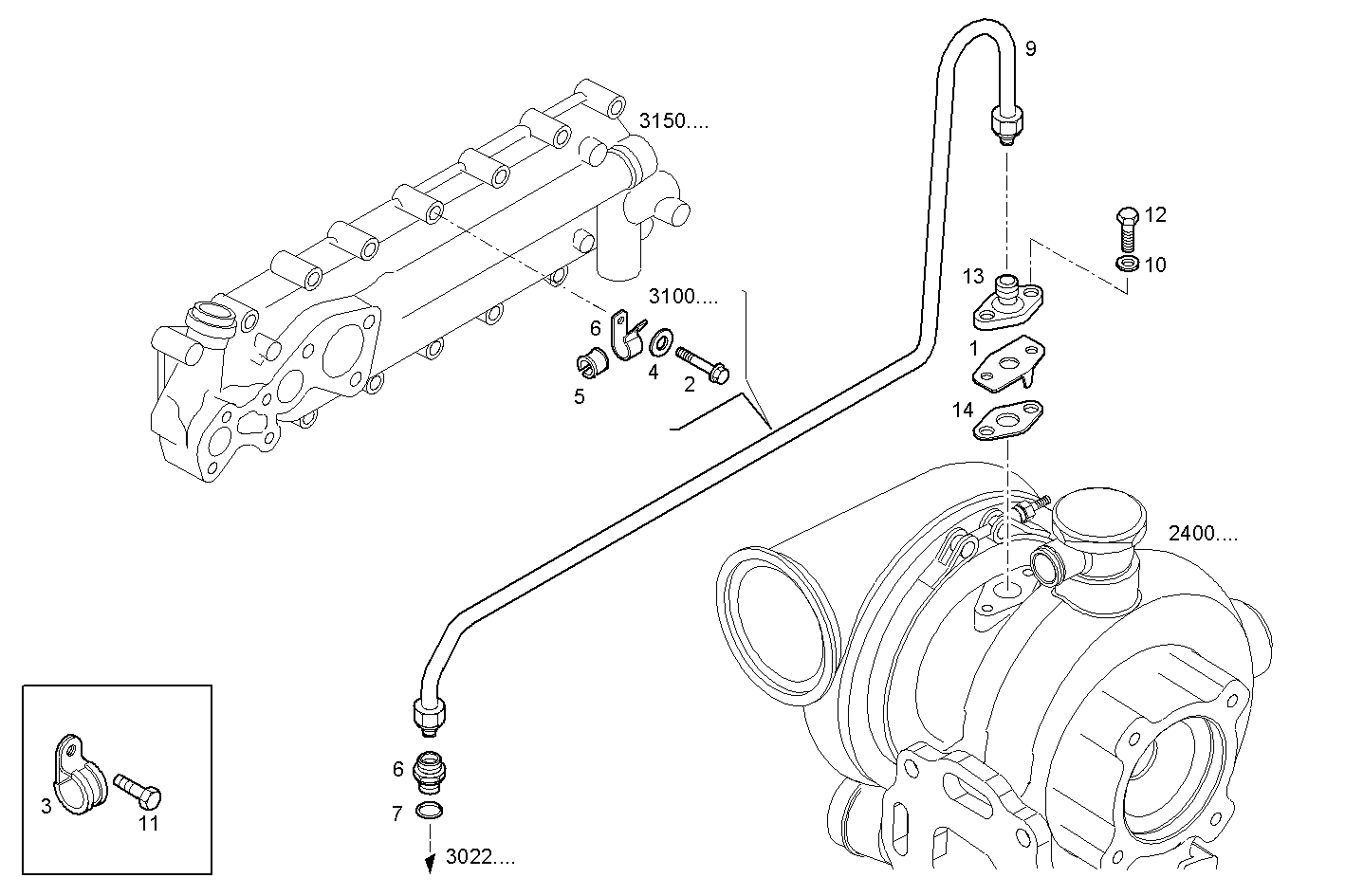

3064.032 OIL DELIVERY LINE
| Item | Part number | Description |
|---|---|---|
| 1 | 98482093 | GASKET |
| 2 | 16586225 | HEXAGON BOLT M8X1,25X16 MM |
| 3 | 8042411 | FASTENING BRACKET |
| 4 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 5 | 4755964 | RUBBER PAD |
| 6 | 4755963 | FASTENING BRACKET |
| 7 | 99489019 | WASHER Ø16X24 MM SP=1,5 MM |
| 8 | 504081274 | THREADED UNION M16X1,5 - M18X1,5 |
| 9 | 8040467 | OIL LINE |
| 10 | 17088474 | WASHER Ø6X12 MM |
| 11 | 16605424 | SCREW M8X16 MM (8.8) |
| 12 | 16603625 | HEXAGON BOLT M6X16 MM |
| 13 | 4764795 | THREADED UNION |
| 14 | 98415922 | FLAT ENGINE GASKET |
